OWNER'S MANUAL
CISSELL MANUFACTURING COMPANY
HEADQUARTERS
831 SOUTH FIRST ST.
P.O. BOX 32270
LOUISVILLE, KY
40232-2270
THIS MANUAL MUST BE GIVEN TO THE EQUIPMENT OWNER.
MAN2150
9/99 5 C
Member of:

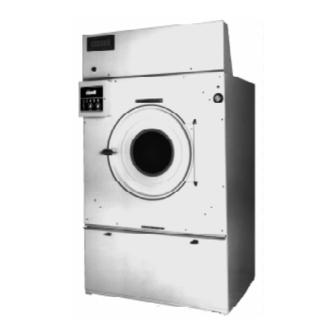

150 Lb. Laundry Dryer
G A S
L50CD42G
C150G
M P C
MODELS
STEAM
L50CD42S
C150S
PHONE: (502) 587-1292
SALES FAX: (502) 585-3625
SERVICE/PARTS FAX: (502) 681-1275
Page 1
