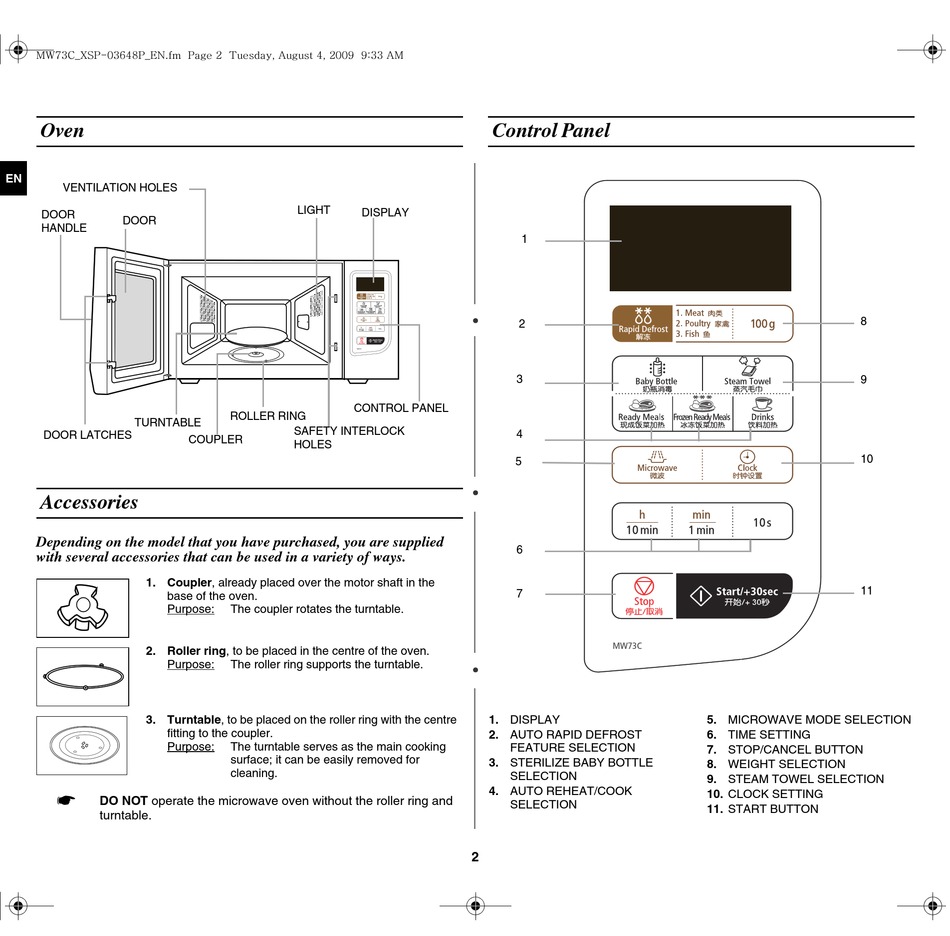

Oven

EN
VENTILATION HOLES
DOOR
DOOR
HANDLE
TURNTABLE
DOOR LATCHES

Accessories

Depending on the model that you have purchased, you are supplied
with several accessories that can be used in a variety of ways.
1. Coupler, already placed over the motor shaft in the
base of the oven.
Purpose:
2. Roller ring, to be placed in the centre of the oven.
Purpose:
3. Turntable, to be placed on the roller ring with the centre
fitting to the coupler.
Purpose:
DO NOT operate the microwave oven without the roller ring and
turntable.
LIGHT
DISPLAY

CONTROL PANEL

ROLLER RING
SAFETY INTERLOCK
COUPLER
HOLES
The coupler rotates the turntable.
The roller ring supports the turntable.
The turntable serves as the main cooking
surface; it can be easily removed for
cleaning.
Control Panel
1
2
3
4
5
6
7
1. DISPLAY
2. AUTO RAPID DEFROST
FEATURE SELECTION
3. STERILIZE BABY BOTTLE
SELECTION
4. AUTO REHEAT/COOK
SELECTION
2
8
9
10
11
5. MICROWAVE MODE SELECTION
6. TIME SETTING
7. STOP/CANCEL BUTTON
8. WEIGHT SELECTION
9. STEAM TOWEL SELECTION
10. CLOCK SETTING
11. START BUTTON
