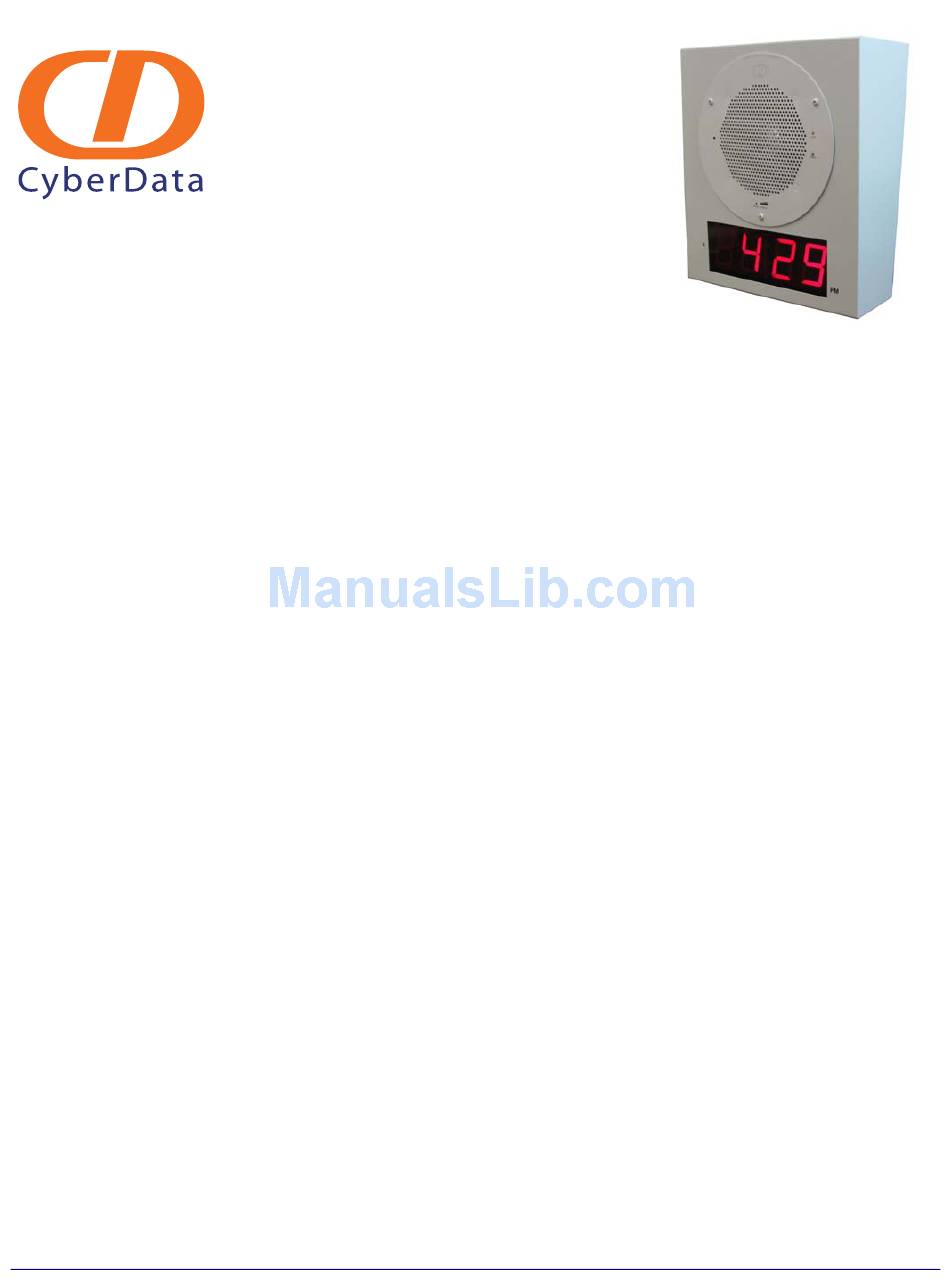

- Page 1 VoIP Clock Kit Wall Mount Adapter Operations Guide Part #011100*, RAL 9002, Gray White, Standard Part #011101, RAL 9003, Signal White, Optional *Replaces #011023 Document Part #930283F CyberData Corporation 2555 Garden Road Monterey, CA 93940 (831) 373-2601...
- Page 2 “open source” or “free software” licenses. Some of this Open Source Software may be owned by third parties. Open Source Software is not subject to the terms and conditions of the CyberData COPYRIGHT NOTICE or software licenses. Your right to copy, modify, and distribute any Open Source Software is determined by the terms of the GPL, LGPL, or third party, according to who licenses that software.
- Page 3 Revision Information Revision 930283F, was updated on 7-15-2010 and has the following changes: • Adds information about the following 01 numbers: Part #011100*, RAL 9002, Gray White, Standard Part #011101, RAL 9003, Signal White, Optional *Replaces #011023 Operations Guide 930283F...
-
Page 4: Important Safety Instructions
Electrical Hazard: This product should be installed by a licensed electrician according to all local electrical and building codes. GENERAL ALERT Warning Electrical Hazard: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Operations Guide 930283F CyberData Corporation... - Page 5 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. Operations Guide 930283F CyberData Corporation...
-
Page 6: Table Of Contents
B.4.2 Warranty & RMA Returns Outside of the United States ............ 24 B.4.3 Spare in the Air Policy ......................25 B.4.4 Return and Restocking Policy ....................25 B.4.5 Warranty and RMA Returns Page ..................25 Index Operations Guide 930283F CyberData Corporation... -
Page 7: Chapter 1 Product Overview
1 Product Overview The Clock Kit enables the CyberData V2 VoIP Ceiling Speaker to be upgraded to a highly visible public address device with a time display. Note The Cyberdata speaker is not included with this kit. The large display characters are easily read and adjust for ambient light conditions. Time sync is performed by NTP and a built-in real -time clock. -
Page 8: How To Identify This Product
To identify the VoIP Clock Kit Wall Mount Adapter, look for a model number label similar to the one shown in Figure 1-1. The model number on the label should be one of the following: • 011100*, RAL 9002, Gray White, Standard Color • 011101, RAL 9003, Signal White, Optional Color *Replaces 011023. Figure 1-1. Model Number Label WWW.CYBERDATA.NET... -
Page 9: Typical System Installation
Product Overview Typical System Installation 1.2 Typical System Installation Figure 1-2 illustrates a typical installation for the SiP VoIP and PoE Speakers. Figure 1-2. Typical Installation Operations Guide 930283F CyberData Corporation... -
Page 10: Product Features
Two years warranty ● Figure 1-3 shows the location of some of the features of the VoIP Clock Kit Wall Mount Adapter. Figure 1-3. Feature Locations CyberData Part #011021 or #011022 (sold separately) Ambient light detector PM LED Operations Guide... -
Page 11: Product Specifications
2 years limited Dimensions 13.5” [343mm] x 11.8” [300mm] x 5.4” [137mm] Weight 8.8 lbs. [4 kg] Part number 011100*, RAL 9002, Gray White, Standard Color 011101, RAL 9003, Signal White, Optional Color *Replaces 011023. Operations Guide 930283F CyberData Corporation... -
Page 12: Dimensions
Figure 1-4 shows the dimensions for the VoIP Clock Kit Wall Mount Adapter. Figure 1-4. Dimensions 5.4 [137] 11.8 [300] 10° Dimensions are in Inches [Millimeter] Figure 1-5. Dimensions 10.70 [271.8] Dimensions are in Inches [mm] Operations Guide 930283F CyberData Corporation... -
Page 13: Chapter 2 Installing The Voip Clock Kit Wall Mount Adapter
To enable the battery for real-time clock operation, install a jumper on JP1 as shown in Figure 2-6. Note This jumper ensures that the clock will not lose the time setting in the event of a power outage. Figure 2-6. Jumper JP1 Operations Guide 930283F CyberData Corporation... -
Page 14: Moving The Clock Connector Cover Plate
1. Unscrew and remove the two attachment cover screws. 2. Rotate the clock connector cover plate 180 degrees as shown in Figure 2-7. 3. Screw and tighten the cover screws to secure the cover plate in place. Operations Guide 930283F CyberData Corporation... -
Page 15: Connecting The Clock To The Speaker
Installing the VoIP Clock Kit Wall Mount Adapter Pre-Mounting Connections 2.1.3 Connecting the Clock to the Speaker Figure 2-8 illustrates how to connect the ribbon cable to the clock and the speaker. Figure 2-8. Connecting the Clock to the Speaker Operations Guide 930283F CyberData Corporation... -
Page 16: Connecting Power To The Speaker
Prior to mounting, you can route the Ethernet cable through the back or through the slots at Note the top or bottom of the Clock Kit Adapter. Figure 2-9. Connecting Power—PoE To PoE Network Operations Guide 930283F CyberData Corporation... - Page 17 Installing the VoIP Clock Kit Wall Mount Adapter Pre-Mounting Connections Figure 2-10. Connecting Power—Optional Power Injector To Network Ethernet Optional power injector (CyberData # 010867A) Device Operations Guide 930283F CyberData Corporation...
-
Page 18: Verifying Operation Of The Clock Kit Adapter
Prior to installing the Clock Kit, make sure that JP1 is installed. This powers the Real Time Clock from the battery. If you do not, the clock will loose it's time when the power is disconnected. Operations Guide 930283F CyberData Corporation... -
Page 19: Power-Up Test
Prior to mounting, you can route the Ethernet cable through the back or through the slots at the top or bottom of the Clock Kit Adapter. Figure 2-12. Connecting Power To Network Ethernet Optional power injector (CyberData # 010867A) Device Operations Guide 930283F CyberData Corporation... - Page 20 This would normally occur at manufacturing first Power On, or at subsequent Power On if the battery was low or dead. If it occurs more frequently, contact CyberData support. Note: If there is an Invalid Time Error, then you will see E 01 on the display for one second and the time will be reset to 00:00.
-
Page 21: The Clock Kit Adapter Battery
To enable the battery for real-time clock operation, install a jumper on JP1 as shown in Figure 2-13. This jumper ensures that the clock will not lose the time setting in the event of a power Note outage. Figure 2-13. Jumper JP1 Operations Guide 930283F CyberData Corporation... -
Page 22: Checking The Battery Power Level Of The Clock Kit Adapter
You should use a Lithium-Ion size 2/3A type battery with minimum 1000 mA-hr rating for the Clock Kit Adapter. Acceptable replacements: Panasonic CR123A ● Duracell DL2/3A ● Sanyo CR17335SE ● 2.3.3.2 Battery Life The Lithium-Ion CR-123 battery in the Clock Kit Adapter should last for approximately seven years. Operations Guide 930283F CyberData Corporation... -
Page 23: Replacing The Battery
Installing the VoIP Clock Kit Wall Mount Adapter The Clock Kit Adapter Battery 2.3.3.3 Replacing the Battery Figure 2-14 Figure 2-15 illustrates how to locate and replace the Clock Kit battery. Figure 2-14. Clock Kit Battery Location Operations Guide 930283F CyberData Corporation... -
Page 24: Seconds Digits Blinking Fast
Figure 2-15. Clock Kit Battery Replacement Positive (+) 2.3.4 Seconds Digits Blinking Fast If the seconds digits on the Clock Kit display are blinking fast, then this means that the speaker has not communicated for more than one hour. Operations Guide 930283F CyberData Corporation... -
Page 25: Mounting The Clock Kit Wall Mount Adapter
Wall Mount Adapter is located on the Installation Quick Ref- erence Guide that is included in the packaging with each speaker. Operations Guide 930283F CyberData Corporation... -
Page 26: Mounting
Step 2 Step 3 Step 4 (3) 8-32 x 1 1/4” Mounting Screws (from the Ceiling Speaker Drop Ceiling Mounting Kit) 2. Position the Clock Kit Wall Mount Adapter over the four #8 sheet metal screws. Operations Guide 930283F CyberData Corporation... -
Page 27: Uploading The Firmware
Depending on which speaker you are using, please see one of the following documents: VoIP V2 Speaker Operation Guide ● ● VoIP V2 Talkback Speaker Operation Guide These documents are available at the following website address: http://www.cyberdata.net/products/voip/digitalanalog/clockkit/docs.html Operations Guide 930283F CyberData Corporation... -
Page 28: Appendix A Setting Up A Tftp Server
1. Install and start the software. 2. Select File Configure Security tab Transmit Only. 3. Make a note of the default directory name, and then move the firmware files to be uploaded to that directory. Operations Guide 930283F CyberData Corporation... -
Page 29: Appendix B Troubleshooting/Technical Support
Appendix B: Troubleshooting/Technical Support B.1 Frequently Asked Questions (FAQ) Go to the following URL to find a CyberData product and its list of frequently asked questions: http://www.cyberdata.net/products/voip/digitalanalog/clockkit/faqs.html B.2 Documentation The documentation for this product is released in an English language version only. You can download PDF copies of CyberData product documentation at: http://www.cyberdata.net/products/voip/digitalanalog/clockkit/docs.html... -
Page 30: Warranty
Warranty RMA Status Form If you need to inquire about the repair status of your product(s), please use the CyberData RMA Status form at the following web address: http://www.cyberdata.net/support/rmastatus.html B.4 Warranty CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase. -
Page 31: Spare In The Air Policy
B.4.3 Spare in the Air Policy CyberData now offers a Spare in the Air no wait policy for warranty returns within the United States and Canada. More information about the Spare in the Air policy is available at the following web address: http://www.cyberdata.net/support/warranty/spareintheair.html... -
Page 32: Index
7 Linux, setting up a TFTP server on 22 connector locations 12 contact information 23 contact information for CyberData 23 cover removing the connection cover from the speaker 7 CyberData contact information 23 mounting the clock kit wall mount adapter 19... - Page 33 & RMA returns outside of the United States 24 warranty & RMA returns within the United States 24 warranty and RMA returns page 25 warranty policy at CyberData 24 weight 5 Windows, setting up a TFTP server on 22...
