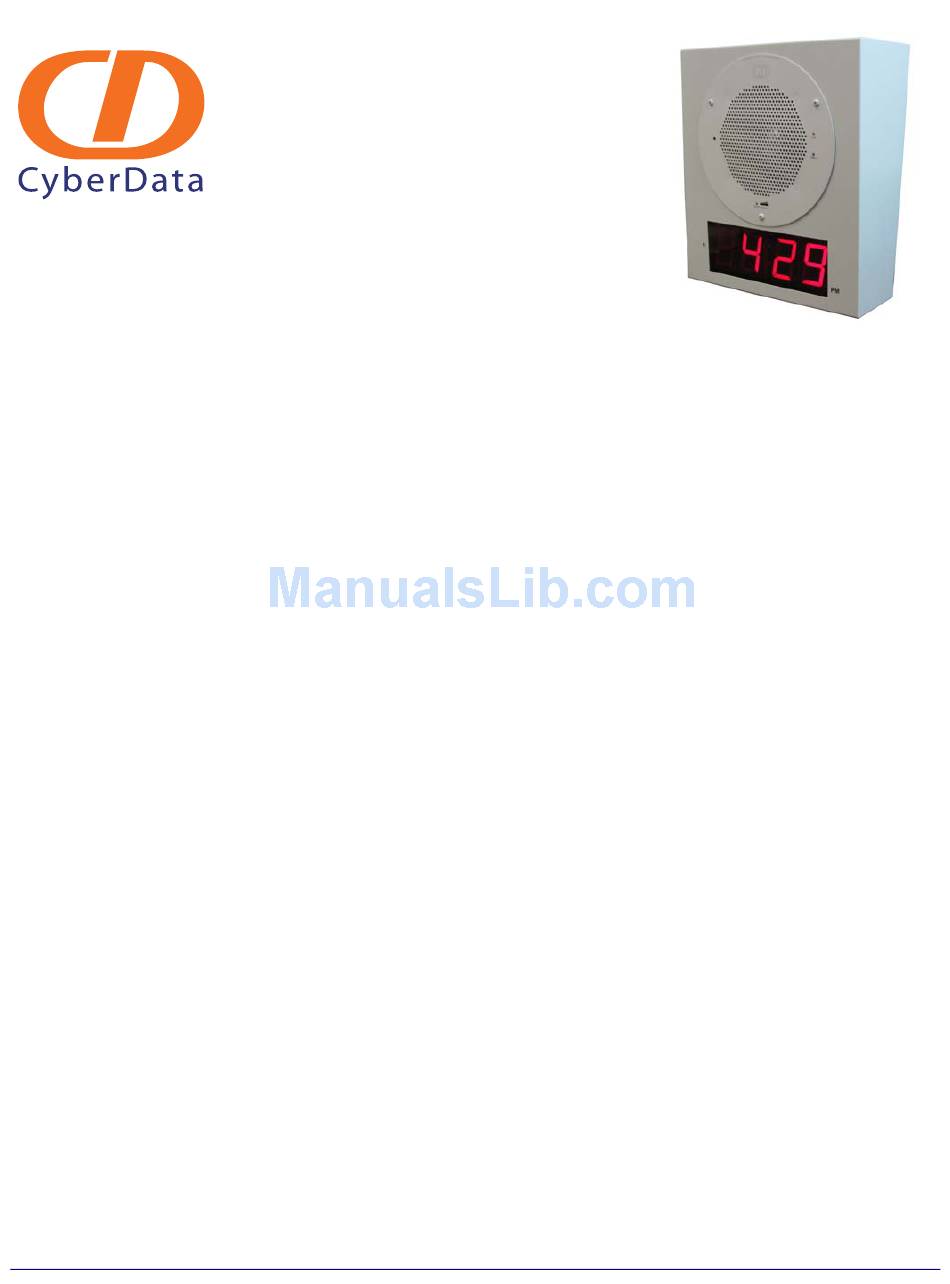

- Page 1 VoIP Clock Kit Wall Mount Adapter Operations Guide Part #011023 Document Part #930283C CyberData Corporation 2555 Garden Road Monterey, CA 93940 (831) 373-2601...
- Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
-
Page 3: Revision History
Ads the following text to Section B.4, "Warranty": “CyberData shall not under any circumstances be liable to any person for any special, incidental, indirect or consequential damages, including without limitation, damages resulting from use or malfunction of the products, loss of profits or revenues or costs of replacement goods, even if CyberData is informed in advance of the possibility of such damages.”... -
Page 4: Important Safety Instructions
Electrical Hazard: This product should be installed by a licensed electrician according to all local electrical and building codes. GENERAL ALERT Warning Electrical Hazard: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT CyberData Corporation 930283C Operations Guide... - Page 5 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. CyberData Corporation 930283C Operations Guide...
-
Page 6: Table Of Contents
A.1.1 In a LINUX Environment ......................22 A.1.2 In a Windows Environment ....................22 A.1.3 In a Solarwinds Server Environment ...................22 Appendix B Troubleshooting/Technical Support B.1 Frequently Asked Questions (FAQ) ....................23 B.2 Documentation .............................23 B.3 Contact Information ..........................23 B.4 Warranty ...............................24 Index Operations Guide 930283C CyberData Corporation... -
Page 7: Chapter 1 Product Overview
1 Product Overview The Clock Kit enables the CyberData V2 VoIP Ceiling Speaker to be upgraded to a highly visible public address device with a time display. Note The Cyberdata speaker is not included with this kit. The large display characters are easily read and adjust for ambient light conditions. Time sync is performed by NTP and a built-in real -time clock. -
Page 8: How To Identify This Product
To identify the VoIP Clock Kit Wall Mount Adapter, look for a model number label similar to the one shown in Figure 1-1. The model number on the label should be 011023. Figure 1-1. Model Number Label WWW.CYBERDATA.NET CLOCK KIT,FOR VoIP SPEAKER V2,... -
Page 9: Typical System Installation
Product Overview Typical System Installation 1.2 Typical System Installation Figure 1-2 illustrates a typical installation for the SiP VoIP and PoE Speakers. Figure 1-2. Typical Installation Operations Guide 930283C CyberData Corporation... -
Page 10: Product Features
Mounting kit included ● Electrogalvinized steel construction ● RoHS compliant ● Keyhold for easy installation ● Part number (Wall Mount): 011023 ● Part number (Flush Mount): 011024 ● Top and bottom cable channels ● 2.3-inch sized digits ● 12 or 24 hour format ●... -
Page 11: Product Specifications
NTP Server or battery backed-up real-time clock. Battery life estimated to be approximately seven years. Warranty 2 years limited Dimensions 13.5” [343mm] x 11.8” [300mm] x 5.4” [137mm] Weight 8.8 lbs. [4 kg] Part number 011023 Operations Guide 930283C CyberData Corporation... -
Page 12: Dimensions
Figure 1-4 shows the dimensions for the VoIP Clock Kit Wall Mount Adapter. Figure 1-4. Dimensions 5.4 [137] 11.8 [300] 10° Dimensions are in Inches [Millimeter] Figure 1-5. Dimensions 10.70 [271.8] Dimensions are in Inches [mm] Operations Guide 930283C CyberData Corporation... -
Page 13: Chapter 2 Installing The Voip Clock Kit Wall Mount Adapter
To enable the battery for real-time clock operation, install a jumper on JP1 as shown in Figure 2-6. Note This jumper ensures that the clock will not lose the time setting in the event of a power outage. Figure 2-6. Jumper JP1 Operations Guide 930283C CyberData Corporation... -
Page 14: Moving The Clock Connector Cover Plate
1. Unscrew and remove the two attachment cover screws. 2. Remove the clock connector cover plate and move it to cover the rectangle cutout shown in Figure 2-7. 3. Screw and tighten the cover screws to secure the cover plate in place. Operations Guide 930283C CyberData Corporation... -
Page 15: Connecting The Clock To The Speaker
Installing the VoIP Clock Kit Wall Mount Adapter Pre-Mounting Connections 2.1.3 Connecting the Clock to the Speaker Figure 2-8 illustrates how to connect the ribbon cable to the clock and the speaker. Figure 2-8. Connecting the Clock to the Speaker Operations Guide 930283C CyberData Corporation... -
Page 16: Connecting Power To The Speaker
Prior to mounting, you can route the Ethernet cable through the back or through the slots at the top or bottom of the Clock Kit Adapter. Figure 2-9. Connecting Power To Network Ethernet Optional power injector (CyberData # 010867A) Device Operations Guide 930283C CyberData Corporation... - Page 17 Installing the VoIP Clock Kit Wall Mount Adapter Pre-Mounting Connections Figure 2-10. Connecting Power To PoE Network Operations Guide 930283C CyberData Corporation...
-
Page 18: Verifying Operation Of The Clock Kit Adapter
Prior to installing the Clock Kit, make sure that JP1 is installed. This powers the Real Time Clock from the battery. If you do not, the clock will loose it's time when the power is disconnected. Operations Guide 930283C CyberData Corporation... -
Page 19: Power-Up Test
Prior to mounting, you can route the Ethernet cable through the back or through the slots at the top or bottom of the Clock Kit Adapter. Figure 2-12. Connecting Power To Network Ethernet Optional power injector (CyberData # 010867A) Device Operations Guide 930283C CyberData Corporation... - Page 20 This would normally occur at manufacturing first Power On, or at subsequent Power On if the battery was low or dead. If it occurs more frequently, contact CyberData support. Note: If there is an Invalid Time Error, then you will see E 01 on the display for one second and the time will be reset to 00:00.
-
Page 21: The Clock Kit Adapter Battery
To enable the battery for real-time clock operation, install a jumper on JP1 as shown in Figure 2-13. Note This jumper ensures that the clock will not lose the time setting in the event of a power outage. Figure 2-13. Jumper JP1 Operations Guide 930283C CyberData Corporation... -
Page 22: Checking The Battery Power Level Of The Clock Kit Adapter
You should use a Lithium-Ion size 2/3A type battery with minimum 1000 mA-hr rating for the Clock Kit Adapter. Acceptable replacements: Panasonic CR123A ● Duracell DL2/3A ● Sanyo CR17335SE ● 2.3.3.2 Battery Life The Lithium-Ion CR-123 battery in the Clock Kit Adapter should last for approximately seven years. Operations Guide 930283C CyberData Corporation... -
Page 23: Replacing The Battery
Installing the VoIP Clock Kit Wall Mount Adapter The Clock Kit Adapter Battery 2.3.3.3 Replacing the Battery Figure 2-14 Figure 2-15 illustrates how to locate and replace the Clock Kit battery. Figure 2-14. Clock Kit Battery Location Operations Guide 930283C CyberData Corporation... -
Page 24: Seconds Digits Blinking Fast
Figure 2-15. Clock Kit Battery Replacement Positive (+) 2.3.4 Seconds Digits Blinking Fast If the seconds digits on the Clock Kit display are blinking fast, then this means that the speaker has not communicated for more than one hour. Operations Guide 930283C CyberData Corporation... -
Page 25: Mounting The Clock Kit Wall Mount Adapter
Wall Mount Adapter is located on the Installation Quick Ref- erence Guide that is included in the packaging with each speaker. Operations Guide 930283C CyberData Corporation... -
Page 26: Mounting
Clock Kit Wall Mount Adapter. Step 1 Step 2 Step 3 Step 4 2. Position the wall mount adapter over the holes in the wall. Use the four #8 sheet metal screws to secure the wall mount adapter. ● Operations Guide 930283C CyberData Corporation... -
Page 27: Uploading The Firmware
Depending on which speaker you are using, please see one of the following documents: VoIP V2 Speaker Operation Guide ● ● VoIP V2 Talkback Speaker Operation Guide These documents are available at the following website address: http://www.cyberdata.net/support/voip/index.html Operations Guide 930283C CyberData Corporation... -
Page 28: Appendix A Setting Up A Tftp Server
A.1.3 In a Solarwinds Server Environment You can find several options online for setting up a Solarwinds server. This example explains how to use the Solarwinds freeware TFTP server, which you can find at: http://www.cyberdata.net/support/voip/index.html Operations Guide 930283C CyberData Corporation... -
Page 29: Appendix B Troubleshooting/Technical Support
Appendix B: Troubleshooting/Technical Support B.1 Frequently Asked Questions (FAQ) Go to the following URL to find a CyberData product and its list of frequently asked questions: http://www.cyberdata.net/support/voip/index.html B.2 Documentation The documentation for this product is released in an English language version only. You can download PDF copies of CyberData product documentation at: http://www.cyberdata.net/support/voip/index.html... -
Page 30: Warranty
CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase. Should the product fail within the warranty period, CyberData will repair or replace the product free of charge. This warranty includes all parts and labor. -
Page 31: Index
21 parts list 19 firmware upgrades 22 power 10, 13 connecting power to the clock 10, 13 power requirement 5 product parts list 19 product features 4 identifying the product 2 product identification 2 Operations Guide 930283C CyberData Corporation... - Page 32 21 setting the time 21 uploading the firmware 21 verifying network link and activity 21 power on to speaker 21 verifying operation 12 warranty 24 weight 5 Windows, setting up a TFTP server on 22 Operations Guide 930283C CyberData Corporation...
