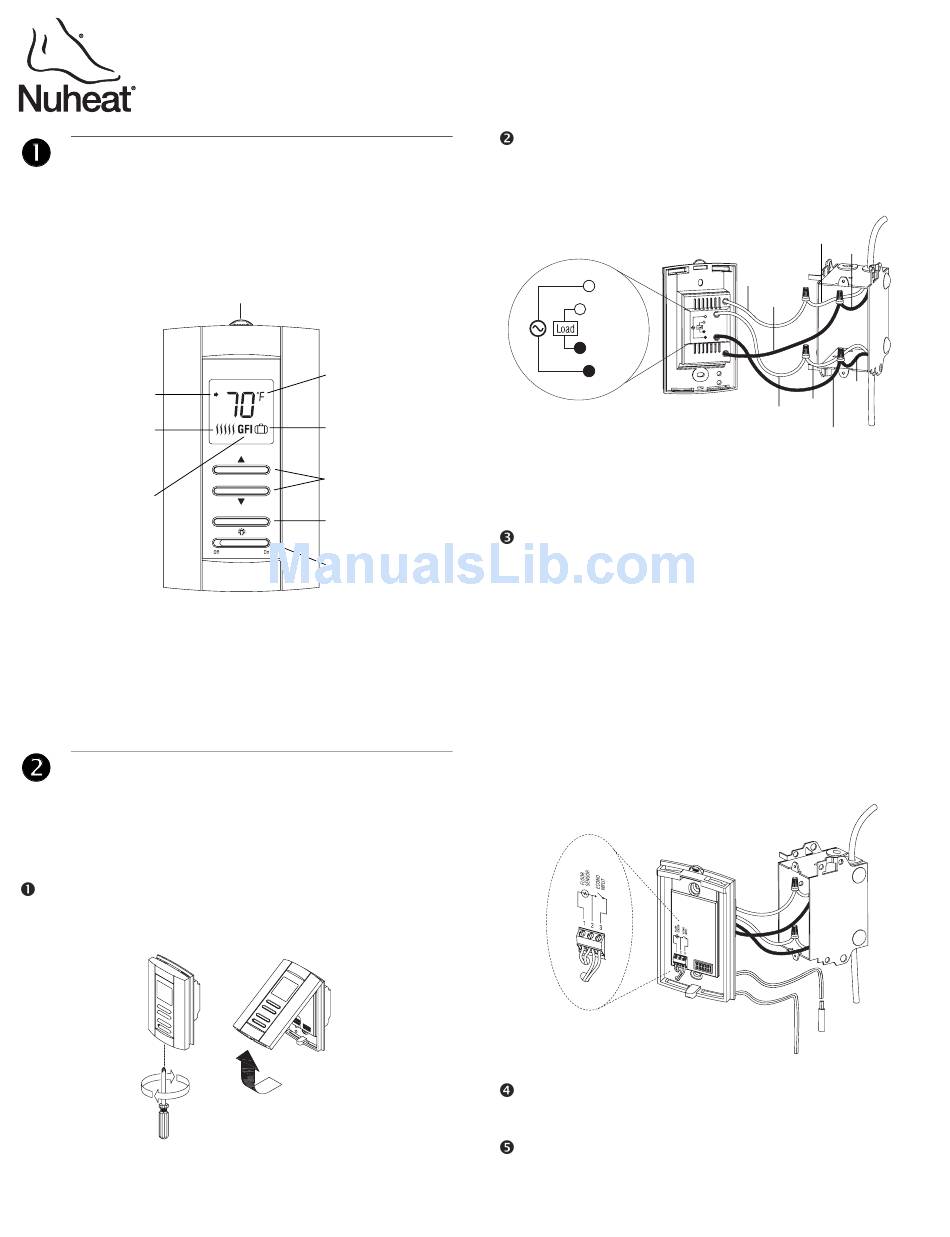

Nuheat TEMPO User Manual

Description

The Tempo thermostat is designed to control the temperature of a
floor heating system for both 120-volt and 240-volt applications. The
thermostat can be used to control either the floor temperature or the
ambient temperature. It has a maximum load capacity of 15 A
(1800 W @ 120 VAC or 3600 W @ 240 VAC).
GFCI test button/light
Setpoint indicator
(see section 4.1)
Heating Intensity
indicator
(see section 4.2)
Ground fault indicator
(see section 5)
SUPPLIED PARTS
• One (1) thermostat
• One (1) floor temperature sensor
• Four (4) solderless connectors
• Two (2) 6-32 mounting screws
• One (1) flat-tip screwdriver

Installation

TURN OFF POWER TO THE HEATING SYSTEM AT THE MAIN POWER
PANEL TO AVOID ELECTRICAL SHOCK. THE INSTALLATION MUST
BE PERFORMED BY A QUALIFIED ELECTRICIAN.
The thermostat's housing is not watertight. Do NOT install the
thermostat in an area where it can be exposed to water or rain.
To remove the thermostat faceplate, loosen the screw at the
bottom of the thermostat and lift the bottom of the faceplate
outwards towards you.
Tempo
1.
240 V (120 V)
Temperature
Unoccupied mode
indicator
(see section 7.2)
NOTE: All wires and connections must conform to the local electrical
Temperature
code. This thermostat has tinned copper wires for line and load
adjustment button
connections. Special CO/ALR solderless connectors must be used if
Backlight button
these wires are to be connected to aluminium conductors.
(see section 4.3)
On/Off switch
(see section 4.4)
2.
Non-programmable Thermostat
Connect the thermostat wires to the power supply and to the load
using solderless connectors for copper wires as shown below.
L2(N)
L1(L)
Pull the temperature sensor wires through one of the openings
on the thermostat base and connect the wires to terminals 1 and
2 (no polarity).
• The sensor cable must not come in contact with the
electrical wires and must be routed outside the electrical
box and follow the wall down to the floor.
• Position the sensor cable such that it does not come in
contact with the floor heating wires. The sensor must be
centered between two floor heating wires for best
temperature control.
• Do NOT staple the sensor head (the plastic end) to the floor.
Doing so might damage the sensor. Any damages might not
be noticeable during testing but can become apparent
several days later.
To remote control device (see section 7.2)
Push the excess length of the line voltage wires back inside the
electrical box. Install the thermostat base onto the electrical box
using the provided screws.
Set the DIP switches (refer to section 3).
400-114-019-A
TEMPO

User Guide

Power supply
Red
(White)
Black
Red
Black
L2(N)
L1(L)
Black
Red
Red
(White)
Black
Load
Floor sensor
2008-11-05 1/3
