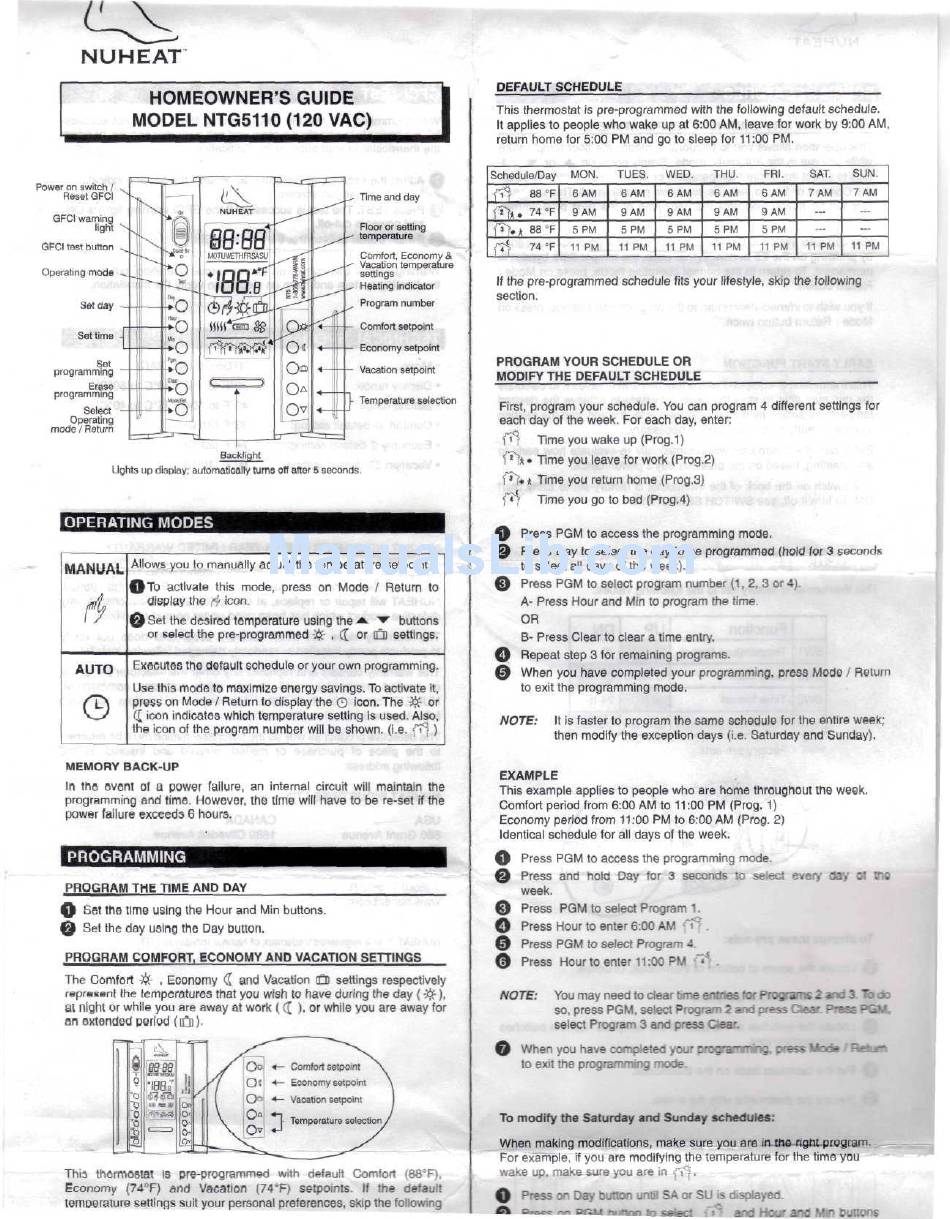

NUHEAT
HOMEOWNER'S GUIDE
MODEL NTG51 1 0 (1 20 VAC)
Power on switch /
Reset GFCI
GFCI warning
light
GFCI test button
Operating mode
Set day
Set time -
Set
programming
Erase
programming
Select
Operating
mode / Return
Time and day
Floor or setting
temperature
Comfort, Economy &
Vacation temperature
settings
Heating indicator
Program number
Comfort setpoint
Economy setpoint
Vacation setpoint
Temperature selection
Lights up display; automatically turns off after 5 seconds.
OPERATING MODES
MANUAL
AUTO
©
Allows you to manually adjust the temperature setpoint.
J^To activate this mode, press on Mode / Return to
display the ,4 icon.
^Set the desired temperature using the-*- "^ buttons
or select the pre-programmed -$- , d or r£D settings.
Executes the default schedule or your own programming.
Use this mode to maximize energy savings. To activate it,
press on Mode / Return to display the O icon. The -$• or
(J icon indicates which temperature setting is used. Also,
the icon of the program number will be shown, (i.e. fTf )
MEMORY BACK-UP
In the event of a power failure, an internal circuit will maintain the
programming and time. However, the time will have to be re-set if the
power failure exceeds 6 hours.
PROGRAMMING
PROGRAM THE TIME AND DAY
Q Set the time using the Hour and Min buttons.
Q Set the day using the Day button.
PROGRAM COMFORT. ECONOMY AND VACATION SETTINGS
The Comfort -&• , Economy ([ and Vacation O settings respectively
represent the temperatures that you wish to have during the day (-$•),
at night or while you are away at work ((J ), or while you are away for
an extended period (o"rj).
Comfort setpoint
Economy setpoint
Vacation setpoint
This thermostat is pre-programmed with default Comfort (88°F),
Economy (74°F) and Vacation (74°F) setpolnts. If the default
temperature settings suit your personal preferences, skip the following
DEFAULT SCHEDULE
This thermostat is pre-programmed with the following default schedule.
It applies to people who wake up at 6:00 AM, leave for work by 9:00 AM,
return home for 5:00 PM and go to sleep for 11:00 PM.
Schedule/Day
WON.
TUES.
WED.
THU.
FBI.
SAT.
SUN.
f^
88 °F
f^*» ™ °F
fS>«j, 88 °F
ft
74 °F
6 A M
9 A M
5 PM
11 PM
6 A M
9AM
5PM
11 PM
6 A M
9 A M
5PM
11 PM
6 A M
9 A M
5 PM
11 PM
6 A M
9 A M
5 PM
11 PM
7AM
. . .
11 PM
7 A M
. . .
11 PM
If the pre-programmed schedule fits your lifestyle, skip the following
section.
PROGRAM YOUR SCHEDULE OR
MODIFY THE DEFAULT SCHEDULE
First, program your schedule. You can program 4 different settings for
each day of the week. For each day, enter:
1M
Time you wake up (Prog.1)
,~
f
l
\ . Time you leave for work (Prog.2)
f^f« * Time you return home (Prog.3)
f^j
Time you go to bed (Prog.4)
©
Press PGM to access the programming mode,
Press Day to select the day to be programmed (hold for 3 seconds
to select all days of the week).
Press PGM to select program number (1 , 2, 3 or 4).
A- Press Hour and Min to program the time.
OR
B- Press Clear to clear a time entry,
Repeat step 3 for remaining programs.
When you have completed your programming, press Mode / Return
to exit the programming mode,
NOTE:
It is faster to program the same schedule for the entire week;
then modify the exception days (i.e. Saturday and Sunday),
EXAMPLE
This example applies to people who are home throughout the week,
Comfort period from 6:00 AM to 11:00 PM (Prog. 1)
Economy period from 11:00 PM to 6:00 AM (Prog. 2)
Identical schedule for all days of the week.
O
Press PGM to access the programming mode.
Q Press and hold Day for 3 seconds to select every day o? the
week.
Q Press PGM to select Program 1.
O
Press Hour to enter 6:00 AM -' T
1
- .
@ Press PGM to select Program 4.
@ Press Hour to enter 11:00 PM ^ .
NOTE:
You may need to clear time entries tar Programs 2 and 3. To do
so, press PGM, select Program 2 and press Clear. P-ess PGM.
select Program 3 and press dear.
O
When you have completed your programming, press Mode ! Retur
to exit the programming mode.
To modify the Saturday and Sunday schedules:
When making modifications, make sure you are in the rigM program.
For example, if you are modifying the temperature for the time you
wake up, make sure you are in f*^.
O
3
ress Of Day button until SA or SU is displayed.
htitton to select - ''- and Hour and Min buttons
