Summary of Contents for Nuheat SIGNATURE

  • Page 2 © 2014 Nuheat Industries Limited. All rights reserved. The entire contents of this manual, including but not limited to text, images, and the selection and arrangement of information (collectively the “Materials”), are protected by copyright and other intellectual property laws under the laws of Canada and other countries.
  • Page 3: Table Of Contents

    T a b l e o f C o n T e n T s INTRODUCTION ....................SySTem TeSTS ....................SeTUp WIzaRD ....................GFCI ........................SeCTION 1: HOme SCReeN ................. Temporary Bypass and Hold Options ..........Energy Use ................Settings ..................SeCTION 2: SeTUp/pReFeReNCeS ..............
  • Page 4: Introduction

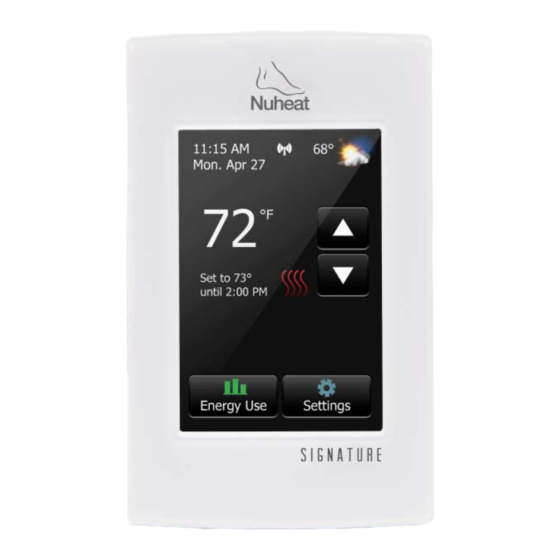

    InTRoDUCTIon THanK YoU foR CHoosInG nUHeaT sIGnaTURe! You have chosen the most advanced thermostat to control your Nuheat electric floor heating system. This manual will cover each of the features of the Nuheat SIGNATURE thermostat. Nuheat SIGNATURE Thermostat Operating Manual...
  • Page 5: System Tests

    WIZaRD The Nuheat SIGNATURE thermostat features a Setup Wizard to guide you through the basic setup process. The Setup Wizard is available the first time the thermostat is connected to power or after a factory reset is initiated.
  • Page 6: Section 1: Home Screen

    Hold Options - only appears Access weather forecast if thermostat is in Auto mode (WiFi connection required) and temperature is manually Current temperature increased/decreased. Target temperature or setpoint Refer to section 1.1 on page 7. Nuheat SIGNATURE Thermostat Operating Manual Previous View...
  • Page 7: Temporary Bypass And Hold Options

    Hold Options The Nuheat SIGNATURE thermostat allows you to set the duration you want to hold the temporary bypass temperature. Change the duration of the hold time by pressing the arrows. Alternatively, press Permanent Hold to hold the temporary bypass temperature indefinitely.
  • Page 8: Energy Use

    1: HoMe sCReen Section 1.2 energy Use The Nuheat SIGNATURE thermostat tracks the amount of time your floor heating system has been heating. Press Day/Week/Year to view the different time ranges. Press Back to return to the home screen.
  • Page 9: Section 2: Setup/Preferences

    Set the current time. Select whether you would like the time to sync with the network time once the thermostat is connected to your WiFi network. Press Cancel to ignore the change or press Save to confirm. Previous View Nuheat SIGNATURE Thermostat Operating Manual...
  • Page 10: Unit

    The thermostat will maintain the set temperature until it is manually changed or until you switch to another operating mode. Press Cancel to ignore the change or press Save to confirm. Previous View Nuheat SIGNATURE Thermostat Operating Manual...
  • Page 11: Temperature Control

    Press Cancel to ignore the change or press Save to confirm. Previous View Nuheat SIGNATURE Thermostat Operating Manual...
  • Page 12: Temperature Display

    It only applies if your thermostat is following a programmed schedule (ie. thermostat is in Auto mode). Press Cancel to ignore the change or press Save to confirm. Previous View Nuheat SIGNATURE Thermostat Operating Manual...
  • Page 13: Floor Limit

    If the floor limit is set too low, your floor heating system will not turn on. Nuheat suggests leaving the floor limit at the default factory temperature setting. NOTe: This setting is not available if Temperature Control is set to Air/Room temp.
  • Page 14: Section 3: Program/Schedule

    3: PRoGRaM/sCHeDUle Section 3.1 program/Schedule From the home screen, access the Program/Schedule menu by pressing Settings>Program/Schedule. Below is the default schedule of the Nuheat SIGNATURE thermostat: Weekday Floor Temperature period Start Time Tile Wood Wake 6:00 am 88°F (31°C) 82 °F (28°C)
  • Page 15: Section 4: Wifi Settings

    After 1-2 minutes, you will notice the WiFi icon turn on at the top of the home screen. This means your Nuheat SIGNATURE thermostat is now connected to your WiFi network. If you cannot connect to your WiFi network, refer to section 8 on page for WiFi troubleshooting.
  • Page 16: Section 5: Weather Settings

    SIGNATURE thermostat. Refer to section 4 on page 15. To setup weather information to be displayed on your Nuheat SIGNATURE thermostat: 1. After you have completed the WiFi setup. Refer to section 4 on page 15. Press Change on the Weather Location screen.
  • Page 17: Section 6: Thermostat Information

    • GFCI tested - Date that the GFCI was last tested. • appl. version - Firmware version number (for internal use during manufacturing). • WiFi version - WiFi version number (for internal use during manufacturing). Nuheat SIGNATURE Thermostat Operating Manual Previous View...
  • Page 18: Section 7: Factory Reset

    This can be used to reset the thermostat for a new owner or for troubleshooting purposes. WaRNING - Factory Reset will delete all information stored on the thermostat including energy usage data. Previous View Nuheat SIGNATURE Thermostat Operating Manual...
  • Page 19: Section 8: Wifi Troubleshooting

    Try entering your password again. Be careful to enter uppercase and lowercase letters, numbers Wrong password and symbols as needed. The Nuheat SIGNATURE thermostat can switch between three different keyboards to enter these characters. If you have another device connected to your...
  • Page 20 Cause Solution With so many home devices now connected to the Internet, we want to make sure our Nuheat SIGNATURE thermostats are connected to secured networks so that hackers cannot gain control of devices in the home. There are two main types of encryption or protection available through wireless routers;...
  • Page 21 Try turning off other wireless devices (Bluetooth, WiFi, wireless phones/cameras) that may cause Presence of wireless interference interference then test the Nuheat SIGNATURE thermostat’s network connection. Restart your Nuheat SIGNATURE thermostat. To restart the Nuheat SIGNATURE thermostat, go SIGNATURE thermostat needs to Settings>Factory Reset and select Reset.
  • Page 24 Nuheat Floor Heating Systems toll free 1.800.778.WARM ( 9276 ) fax 604.529.4404 www.nuheat.com info@nuheat.com Nuheat™ is the registered Trademark of Nuheat Industries Ltd. Printed in Canada September 2014...
