PWR:
This indicator lights green when the hub is receiving
power, otherwise, it is off.
Link/Act:
This indicator light green when the port is connected
to a station, if the indicator blinking will be
transmitting or received data on the network.
100M:
If this indicator light green, mean this port is
connected to a 100M Fast Ethernet station.
Otherwise, this indicators reminds off, mean this
port is connected to a 10M Ethernet station.
FDX/COL:
This LED indicator light green when a respective
port is in full duplex (FDX) mode. Otherwise, it is
blinking when collisions are occurring on the
respective port.

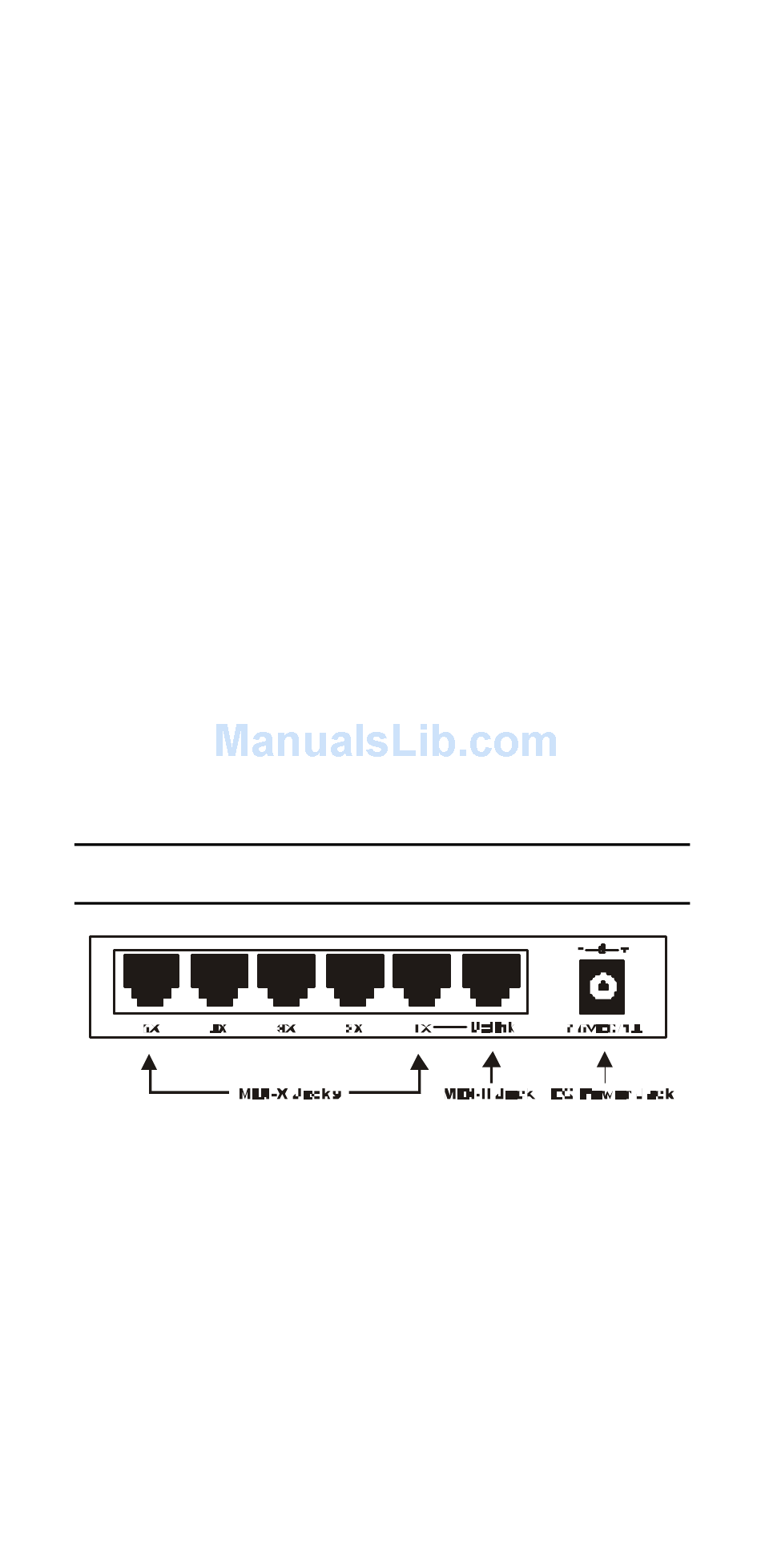

Rear Panel

DC Power Jack:
Power is supplied through an external AC power
adapter. Check the technical specification section
for information about the AC power input voltage.
Since the switch does not include a power switch,
plugging its power adapter into a power outlet will
immediately power it on.
4
