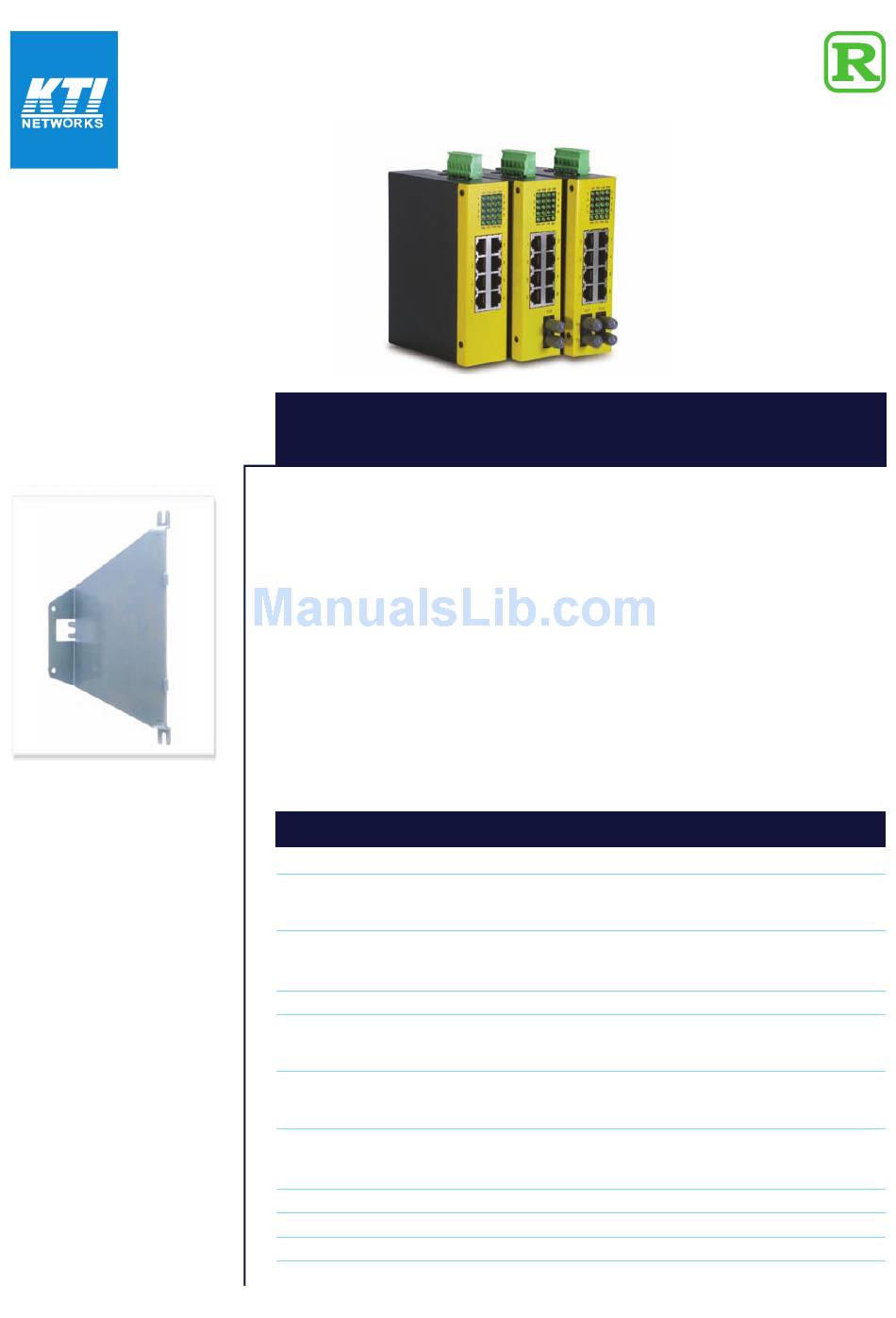

KTI Networks KSD-800 Specification Sheet

KSD-800
Panel Mounting Bracket

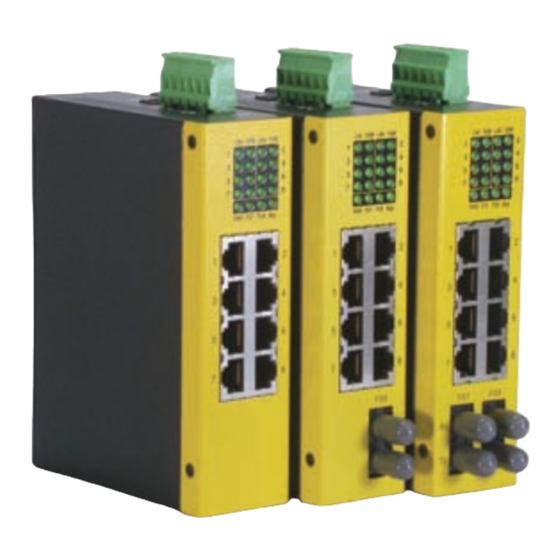

Industrial 8-Port Fast Ethernet Switches
with Fiber Connectivity
Benefits :
Fast Ethernet switch with 8 10/100Mbps copper ports and optional fiber ports

Wide operating temperature range for temperature critical environment

Support DIN rail mounting and panel mounting

Provide two power input types to meet more application needs

Accept wide power input voltage range for application flexibility

Industrial-rated Emission and Immunity performance

Key Features :
8 10/100M ports support auto-negotiation and auto-MDI/MDI-X configuration

Port 7 and Port 8 provide either copper or fiber connection (model dependent)

Provides wire speed store-and-forward switching

Supports IEEE 802.3x flow control for full-duplex operation

Supports Back-pressure flow control for half-duplex operation

Provides Far End Fault function on the fiber ports

Specifications :
Standard IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, 100Base-FX
Network Ports 8 RJ-45 10/100Mbps auto-negotiation, auto-MDI/MDI-X ports
2 100Mbps 100Base-FX ports (model depedent)
(Port 7 and Port 8 provide dual connectivities, either copper or fiber.)
Network Cables 10Base-T :
100Base-TX : Cat. 5 or higher up to 100m
100Base-FX : MMF 50/125µm 60/125µm, SMF 9/125µm
MAC Addresses Table with 1K entries
LEDs Per unit :
Per 10/100M port : Link/Activity, 100M, Duplex/Collision status
Per fiber port slot : Link/Activity status status
Relay Output Alarm :
Interface : 2 terminal contacts
Spec. :
DC Power Input Screwed terminator block : 2 pairs of +/- contacts
DC jack :
Operating voltage range :
Power Consumption 7.3 watts (max.)
Housing Enclosed metal with no fan
Dimension 140 x 106 x 40 mm (WxDxH)
Mounting Support DIN Rail mounting, Panel mounting
Cat. 3, 4, 5 or higher up to 100m
Power, Management
Power failure
30VDC/1A max. or 120VAC/0.5A max.
-D 6.3mm / + D 2.0mm
+7 - +30VDC
