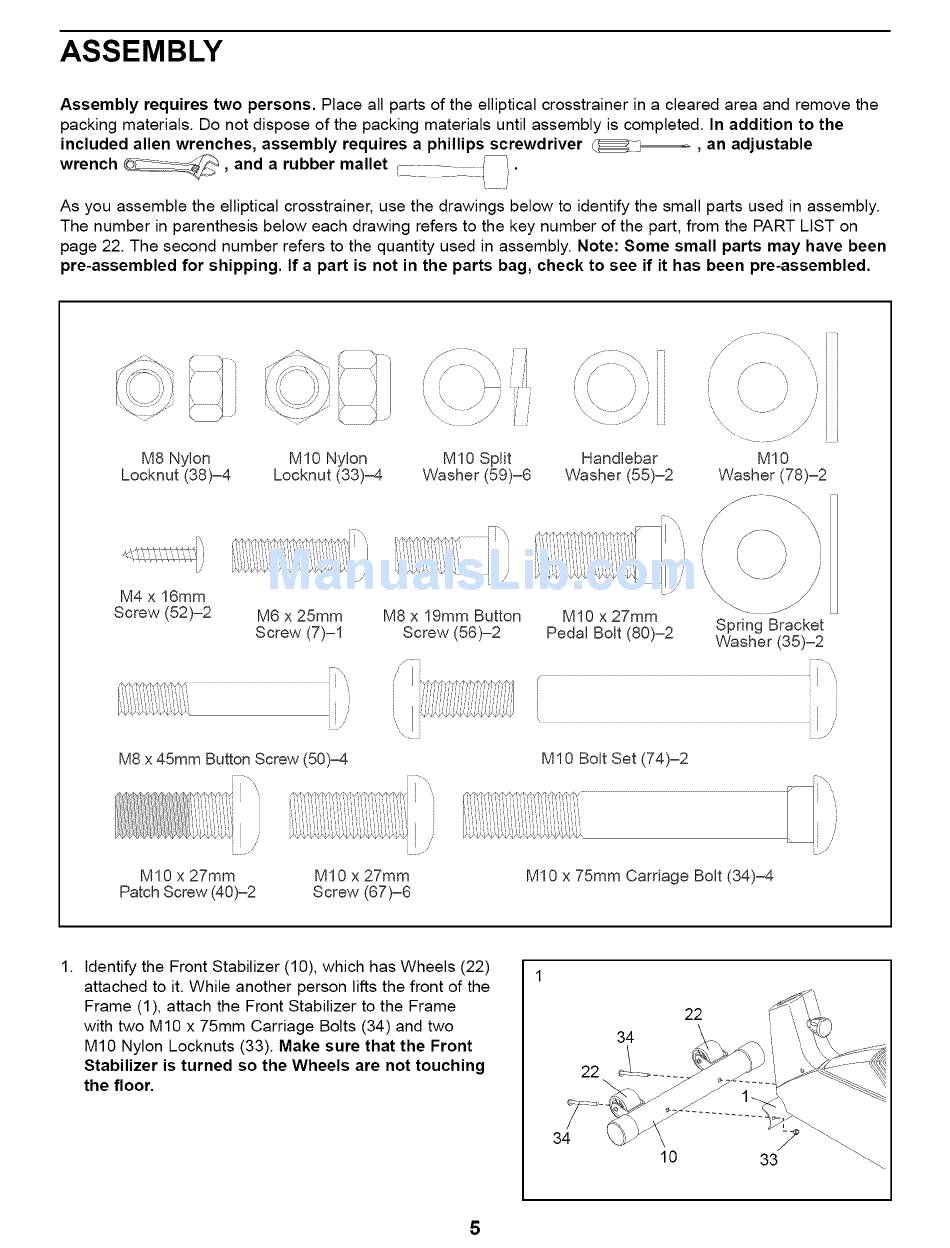

ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver __, an adjustable
wrench __ and a rubber mallet _
, ¢................. I I °
1= )
As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 22. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M8 Nylon M10 Nylon MI0 Split Handlebar
Locknut (38)-4 Locknut (33)---4 Washer (59)-6 Washer (55)-2
', . .... J"
M10
Washer(78)=2
Lz
M4 x 16mm
Screw (52)-2 M6 x 25mm
Screw (7)-1
Lii ii
M8 x 19mm Button
Screw (56)-2
/
i /
M8 x 45ram Button Screw (50)---4
\
/
[ ./
M I 0 x 27mm
Patch Screw (40)-2
M I 0 x 27mm
Screw (67)-6
\
\
M10 x 27mm
Pedal Bolt (80)-2 Spring Bracket
Washer (35)-2
i
_ j J
_ /
i ..J
MI 0 Bolt Set (74)-2
M10 x 75mm Carriage Bolt (34)---4
/
1. Identify the Front Stabilizer (10), which has Wheels (22)
attached to it. While another person lifts the front of the
Frame (1), attach the Front Stabilizer to the Frame
with two M10 x 75mm Carriage Bolts (34) and two
M10 Nylon Locknuts (33). Make sure that the Front
Stabilizer is turned so the Wheels are not touching
the floor,
34
34
22
22
10 33
