GB
Colour Television
DTL-2950
MANUAL INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTC-29G1 and is the answer not in the manual?

Questions and answers

Related Manuals for Daewoo DTC-29G1

Summary of Contents for Daewoo DTC-29G1

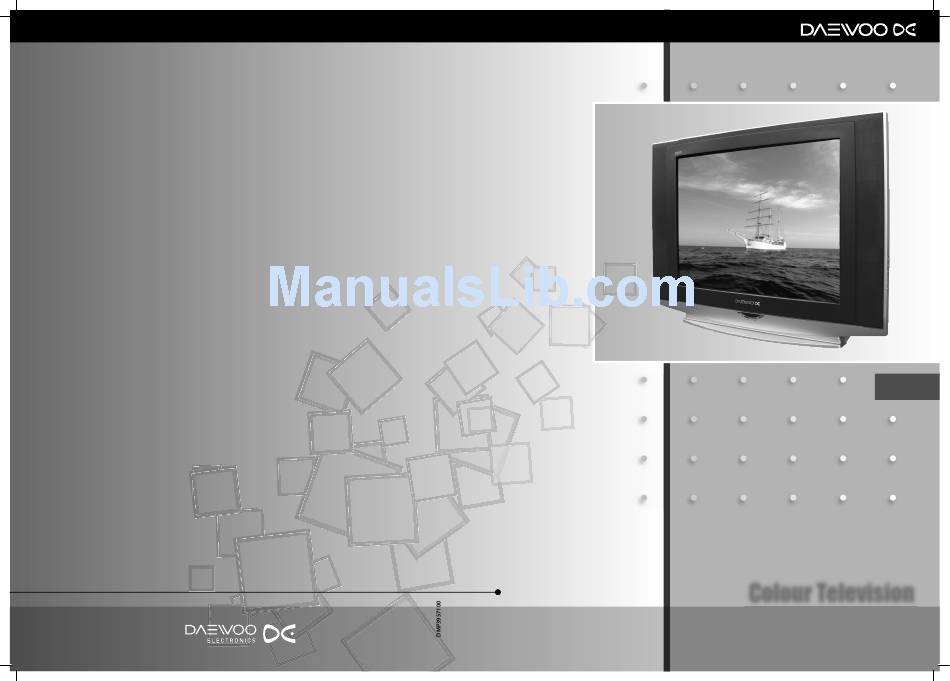

  • Page 1 Colour Television DTL-2950 MANUAL INSTRUCTION...

  • Page 2: Table Of Contents

    CONTENTS REMOTE CONTROL & TV CONNECTIONS ..... . 2 IMPORTANT SAFEGUARDS ........3 INSTALLATION .

  • Page 3: Important Safeguards

    LOCAL CONTROL Front Side B1 MAIN POWER button B2 STAND-BY indicator B3 REMOTE sensor B4 POWER indicator B5 PROGRAM UP/DOWN buttons B6 VOLUME UP/DOWN buttons B7 TV / AV button B8 MENU button B9 SIDE VIDEO INPUT socket B10 SIDE AUDIO INPUT (L + R) socket B11 SIDE PANEL S-VIDEO jack B12 HEADPHONE socket Rear...

  • Page 4: Installation

    VENTILATION Do not cover the ventilation openings in the cabinet and never place the set in a confined space such as in a bookcase or built-in cabinet unless proper ventilation is provided. Leave a minimum 10 cm gap all around the unit. OBJECT ENTRY Do not insert foreign objects, such as needles and coins, in the ventilation openings.

  • Page 5: Start Up

    START UP LANGUAGE MENU The very first time that you turn on the TV, the LANGUAGE menu will appear on the screen. Its purpose is to enable you to select the language that will be used for all the OSD (On Screen Display) menus. The user must enter a choice of language before proceeding further. The language entered at this stage can still be modified at any later time, by entering the LANGUAGE menu (accessed from the FEATURES menu: see later section under MENU DESCRIPTION).

  • Page 6: Daily Use

    Side TV/AV SELECTION Allows to switch between TV and external modes. By repeatedly pressing the remote control TV / AV (A5) or the TV side panel TV / AV (B7) button, the on-screen display is changed as shown : S-VIDEO 2 S-VIDEO 3 Remark: If the signal source from the rear SCART1 socket (AV1) is RGB (e.g.
  • Page 7 PROGRAM SELECTION (FROM 0 TO 99) Direct selection Up / Down selection Use the remote control NUMBER 0….9 buttons (A3). Use the remote control PROGRAM UP (A6) / DOWN (A21) buttons or the For two digits program numbers, enter the second digit within 2 seconds. TV set side panel PROGRAM UP / DOWN buttons (B5).

  • Page 8: Picture Control

    PICTURE CONTROL You can select three pictures settings, by using the remote control NORMAL button (A17) : - Normal I (standard hard picture) - Normal II (standard soft picture) - Favourite For other adjustments: BRIGHTNESS, CONTRAST, COLOUR, SHARPNESS, NOISE REDUCTION, use the PICTURE menu. If an NTSC signal is received, then the TINT adjustment will also be available.

  • Page 9: Menus Description

    MENUS LANGUAGE SELECTION, CHILD LOCK, CLOCK SETTING, WAKE UP, NOISE REDUCTION These functions are available in the Features menu (see description page 13). CHILD LOCK Alternatively, the user can enter the time manually using the CLOCK func- This function only allows the TV to be turned on using the remote con- tion.

  • Page 10: Picture Menu

    PICTURE MENU (For operating instructions, see page 9, HOW TO USE THE SUB-MENUS) - Select and adjust the level of each function : BRIGHTNESS, CONTRAST, COLOUR, SHARP- NESS, TINT (if available). PICTURE PICTURE FAVOURITE FAVOURITE - The above modified values are automatically stored in FAVOURITE mode. - NOISE REDUCTION feature can be activated or not.

  • Page 11: Install Menu

    INSTALL MENU (For operating instructions, see page 9,HOW TO USE THE SUB-MENUS) Automatic tuning system INSTALL INSTALL Program list edition Country ATSS TV system modification TV system EDIT Channel number SYSTEM Channel number CHANNEL Channel Frequency Channel Frequency FREQUENCY 671,25 NAME ABCDEFG Channel name...
  • Page 12 Channel skipping Channel deleting Channel order changing - You can select skip „YES” or „NO” using the re- - Select the program to delete using the re- - Select the program to move using the remote mote control RED „Skip” button (A11). A pro- mote control CURSOR UP (A6) / DOWN (A21) control CURSOR UP (A6) / DOWN (A21) but- gram with skip „YES”...

  • Page 13: Features Menu

    FEATURES MENU See section near the end of section DAILY USE for a more detailed explanation of these functions. (For operating instructions see page 9, HOW TO USE THE SUB-MENUS) 1. When switched to ON: 1. Adjust this value ON or OFF. Prevents the use of the TV set without remote - In stand-by mode, the stand-by indicator flashes control...

  • Page 14: Teletext

    TELETEXT ENTERING/LEAVING TELETEXT MODE - Select the desired program with teletext. - Press the remote control TELETEXT ( ) button (A22) to select teletext mode. The initial page (or the last page viewed if you have already used teletext in the present channel) appears. - Teletext And Teletext (TAT) function (OPTION): if you want to watch two teletext pages on same screen, press the TELETEXT ( )button (A22) again.
  • Page 15 USEFUL TELETEXT FUNCTIONS INDEX ( ) button (A18): Allows you to return directly to the initial tele- PAGE HOLD button ( ) (A9): Any teletext page or subpage can be held on the screen by pressing the PAGE HOLD button. text page.
  • Page 16 TELETEXT FORMAT PICTURE & SOUND CONTROL Doubling character height Repeatedly pressing the HEIGHT ( ) button (A23) doubles the character height in the following order: Upper half of the page (UP) > Lower half of the page (DOWN) > Return to normal height. Note : The menu at the base of the screen is always visible Volume and brightness control in teletext mode VOLUME ( and sound MUTE), BRIGHTNESS controls are all possible in teletext.
