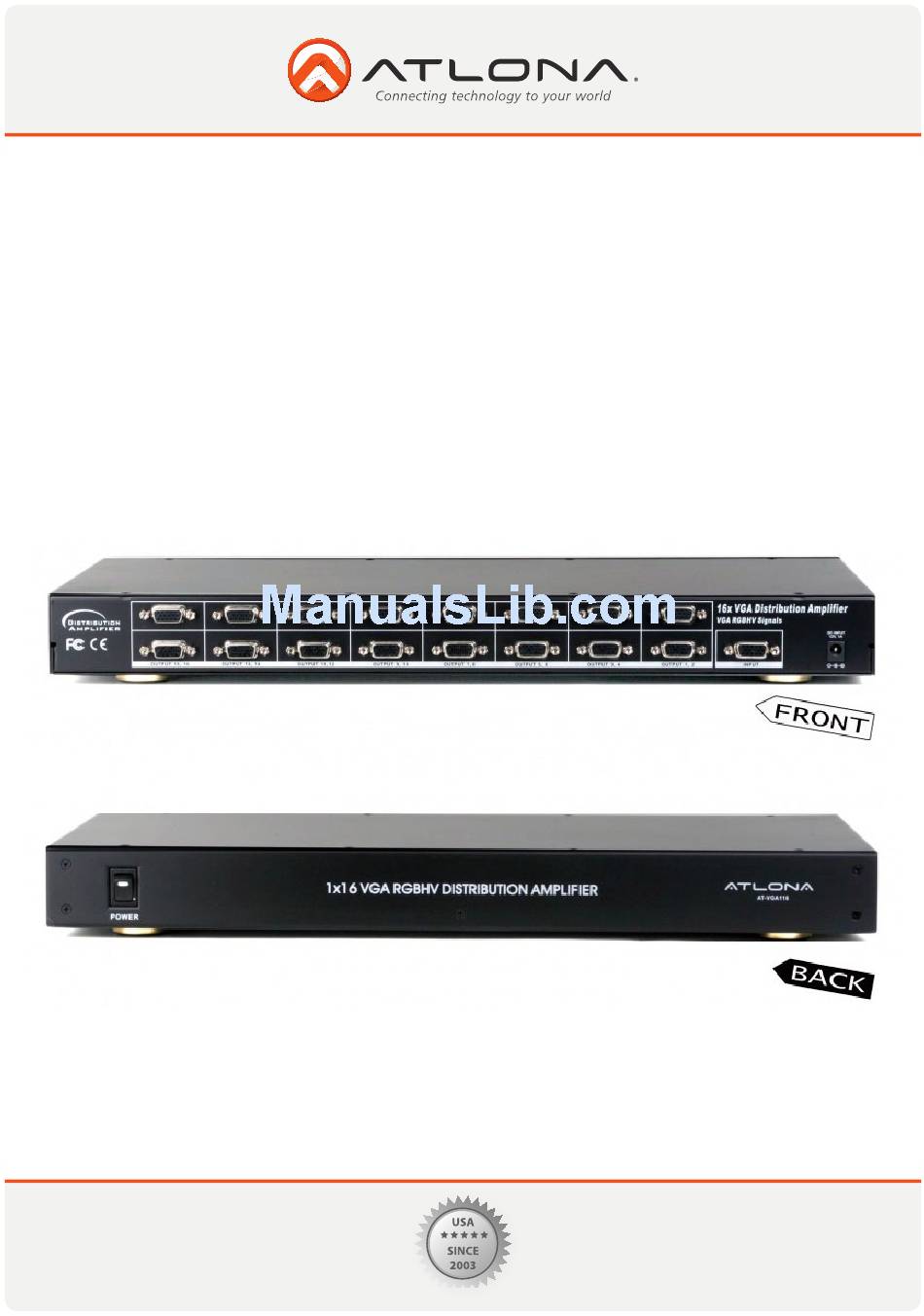

- Page 1 User Manual 1x16 Professional RGBHV/VGA Distribution Amplifier With High Resolution Support (2048 x 2048) AT-VGA116 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
5. Panel Descriptions ..........3 5.1 Front Panel ..........3 5.2 Rear Panel ..........3 6. Connection and Installation ..........4 7. Safety Information ..........5 8. Warranty ..........6 9. Atlona Product Registration ..........7 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Atlona Technologies’ AT-VGA116 is a 1x16 VGA Distribution Amplifier designed to work as a splitter for any VGA Video application. With 1 VGA Input and 16 VGA Outputs, the AT-VGA116 is capable of splitting a VGA signal from one source to sixteen separate displays with compatible inputs. With a built in amplifier, this unit has the ability to boost this signal great distance, while preventing both signal loss and picture degradation. -
Page 4: Package Contents
PACKAGE CONTENTS 1. AT-VGA116 Distribution Amplifier x 1 2. Instruction Manual x1 3. Universal AC Power Adapter: 12VDC, @300~500mA (110-240V) 4. Rack ears (pair) x 1 PANEL DESCRIPTIONS 1. Front Panel 1. Power Switch: Switch Unit Power On/Off 2. Rear Panel 1. -
Page 5: Connection And Installation
1. Switch off all devices, including monitors. 2. Connect Desired source to the VGA Video Input 3. Connect VGA Outputs to desired Displays 4. Plug in 12V DC power supply. 5. Power on the monitors. 6. Power on the source. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Safety Information
It may also cause damage to your AT-VGA116. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 7: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 8: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
