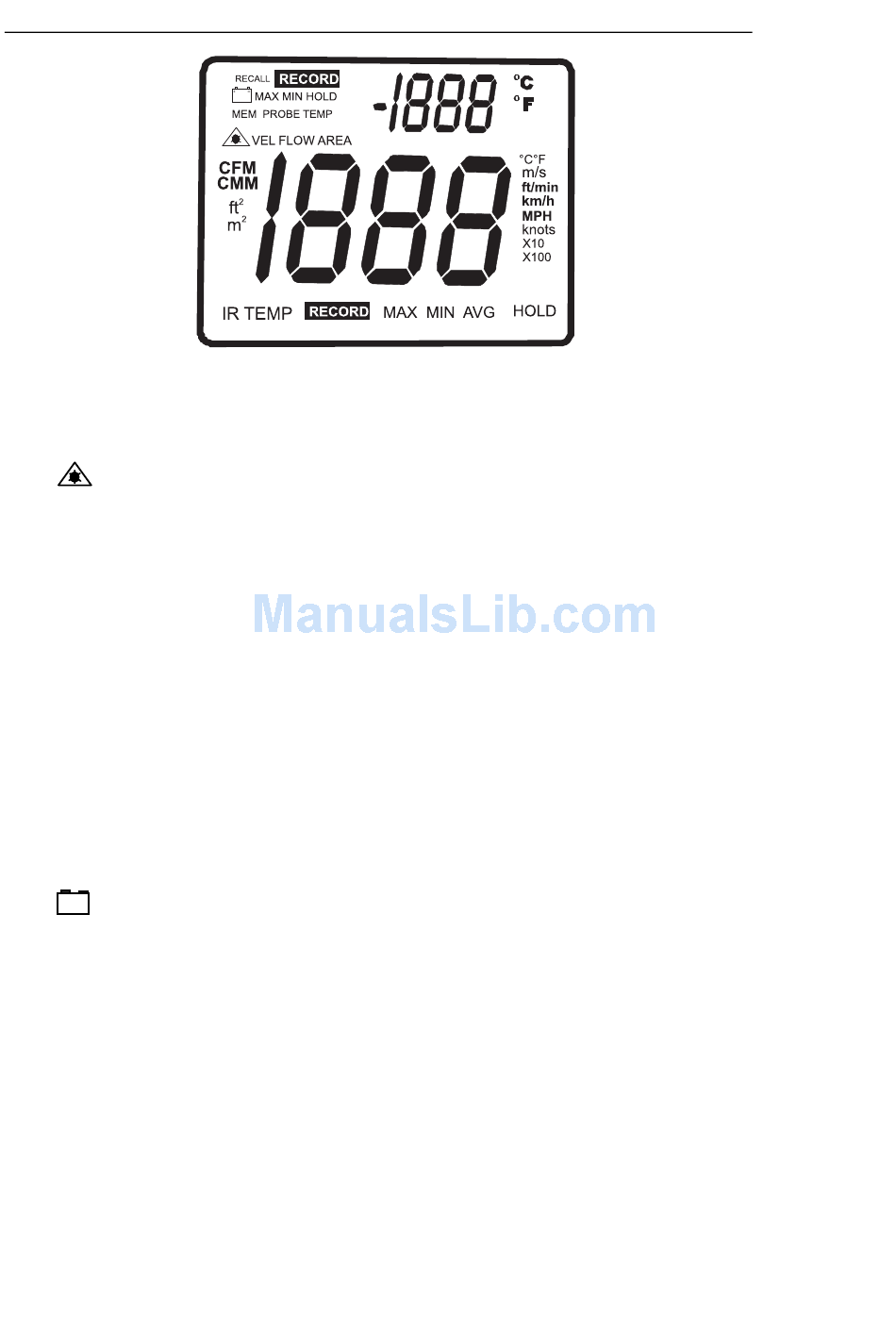

Display Layout

•
MAX (top of LCD): Max Hold function engaged for the Air Temperature function
•
HOLD (top of LCD): Data Hold function engaged for the Air Temperature function
•
PROBE TEMP: Reminder that the top LCD digits represent Air (Vane) Temperature
•
: Indicates that the laser pointer is on.
•
IR TEMP: Indicates that the larger LCD digits represent IR temperature measurement
•
VEL: indicates that meter is in air velocity mode
•
FLOW: indicates that meter is in air flow mode
•
MAX (bottom of LCD): Max Hold for the IR Temperature and RH function
•
HOLD (bottom of LCD): Data Hold for the IR Temperature function and RH function
•
o o
F: Temperature units of measure
C /
•
CFM/CMM: airflow units of measure
•
2 2 : units for area dimensions
Ft , m
•
m/s, ft/min, km/h, MPH, knots: air velocity units of measure
•
X10, X100: multipliers for air flow readings
•
AVG: air averaging mode
•
RECORD: indicates that min/max function is running (top for temp, bottom for air)
•
Large LCD digits at center of display for Relative Humidity and IR Temperature
•
Smaller LCD digits at top, right of display for Probe Temperature
•
: Low battery indicator
5 AN200 V2.1 05/07
