Remove Cpu Cooler; Remove Memory - Acer Aspire M5200 Service Manual

Pc
Hide thumbs

Advertisement

Table of Contents
Process:

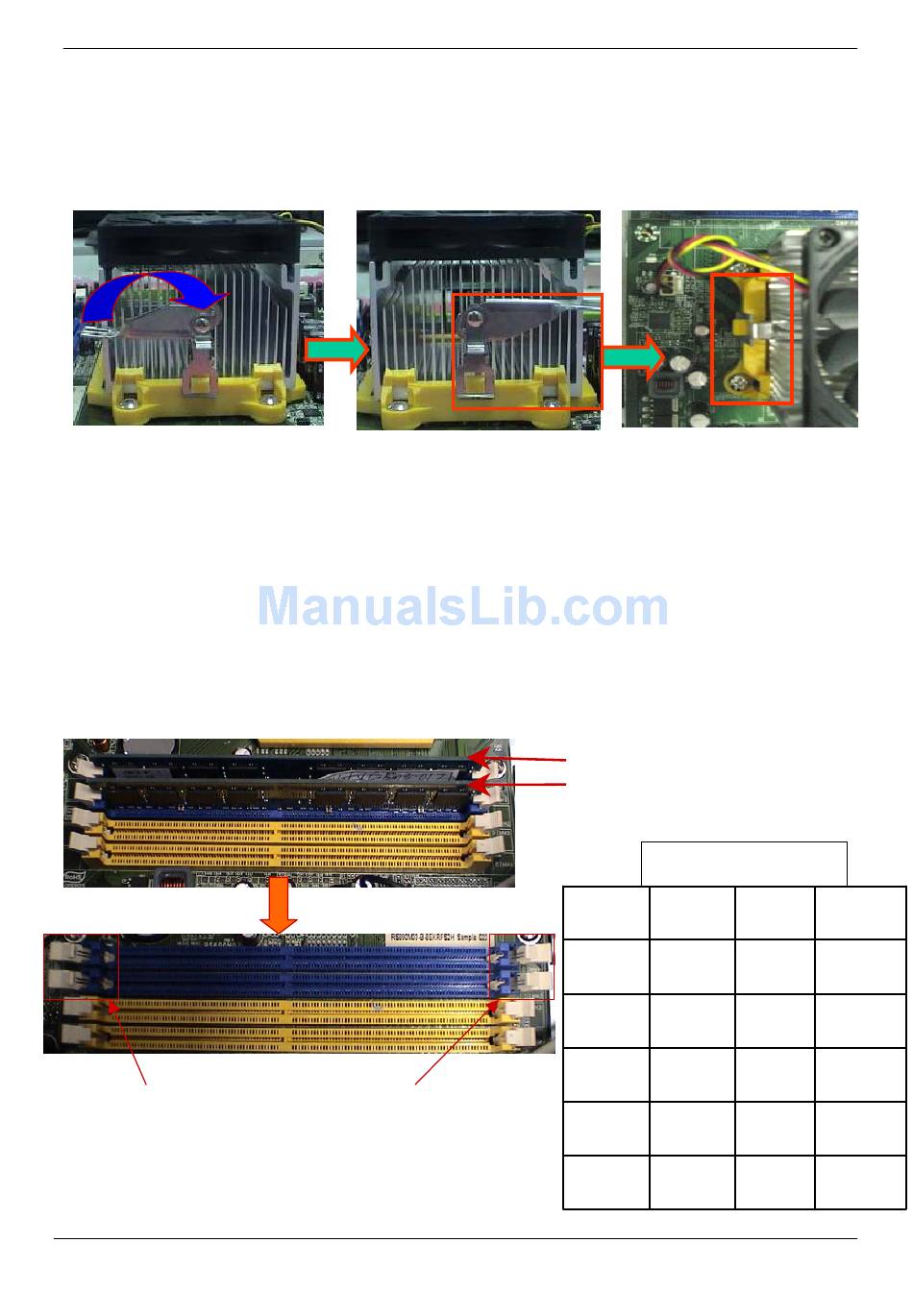

1. Release the clip and remove Cooler from the Retention module.
Process:
1. Open the memory slot then remove memory.
2. Remove the first Memory from DIMM1 slot.
3. Remove the second Memory from DIMM2 slot (Optional by SKU).
Open the memory slot then remove memory.

Remove CPU cooler

Remove memory

DIMM1
DIMM2
Memory install place
DIMM
DIMM
1
2
A
B
A
A
B
B
A
A
A
A
DIMM
DIMM
3
4
A
B
B
B
