Remove Cables

Process:

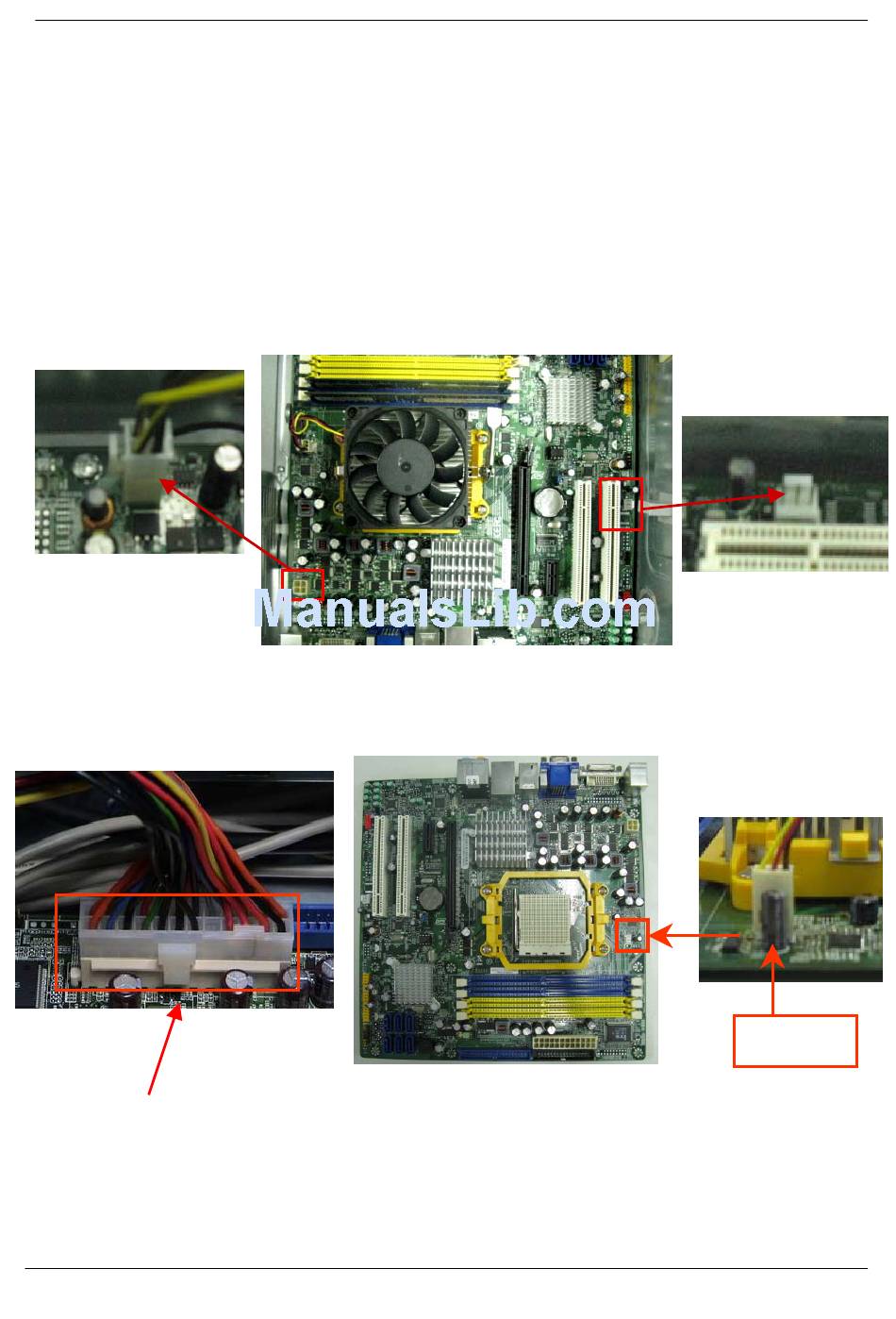

1. Remove 12V power cable from M/B connector "PWR2".
2. Remove System fan cable from M/B connector "SYS FAN ".
3. Remove P1 power cable from M/B connector "PWR".
4. Remove heat sink cable from M/B connector "CPU_ FAN".
12V power cable
System fan cable
CPU- FAN
P1 power cable
66
