Remove Fdd Cable - Acer Aspire M5200 Service Manual

Pc
Hide thumbs Also See for Aspire M5200:
Table of Contents

Advertisement

Process:

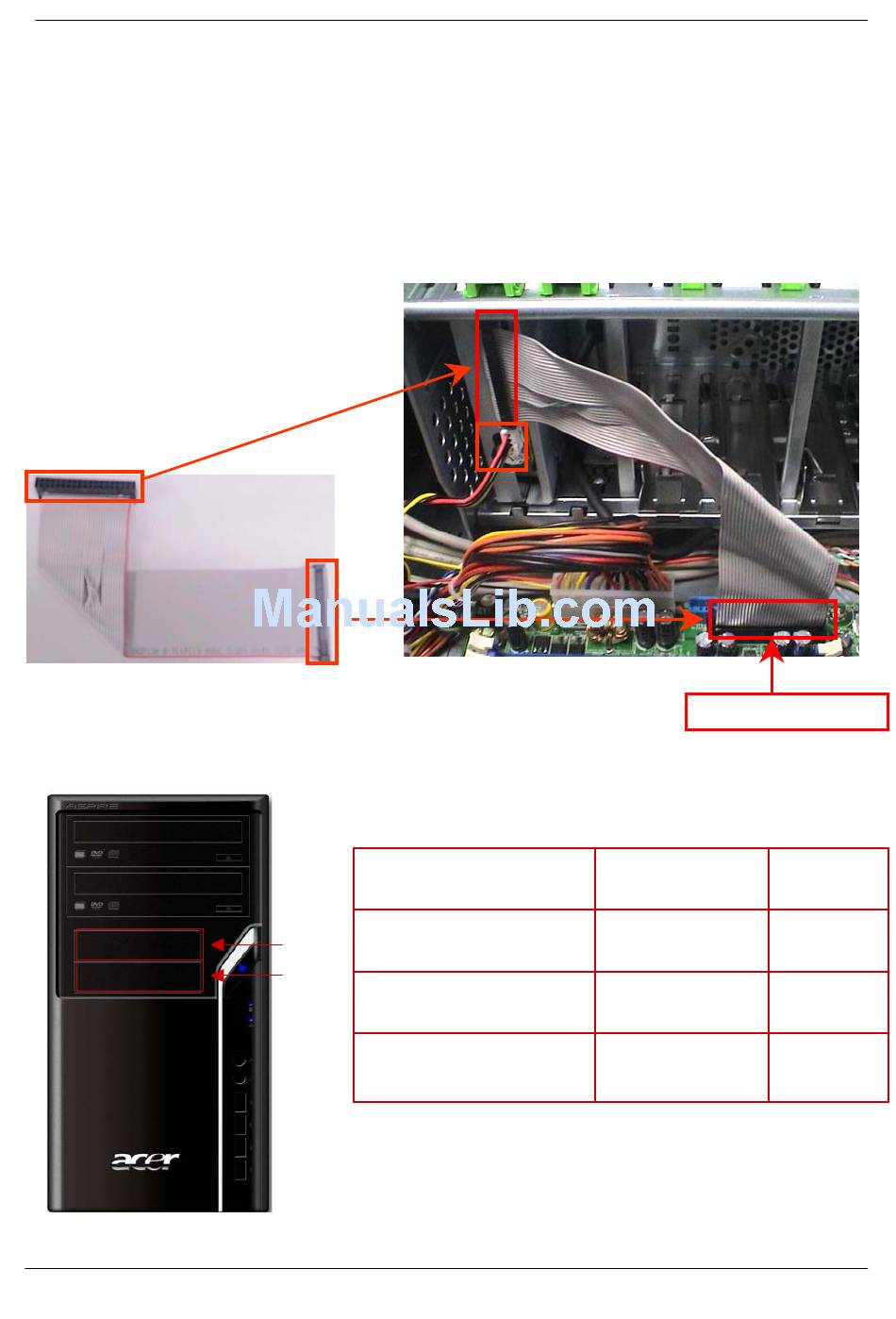

1. Remove FDD digital cable just as pictures (Optional by SKU).
2. Plug 4 pins power cord from FDD slot.
Remove from FDD
Notice:

Remove FDD Cable

Remove from M/B
Only card reader
A
B
Card reader and FDD
Only FDD
"FDD1" slot
A
Card reader
FDD
FDD
B
Card
reader
64
