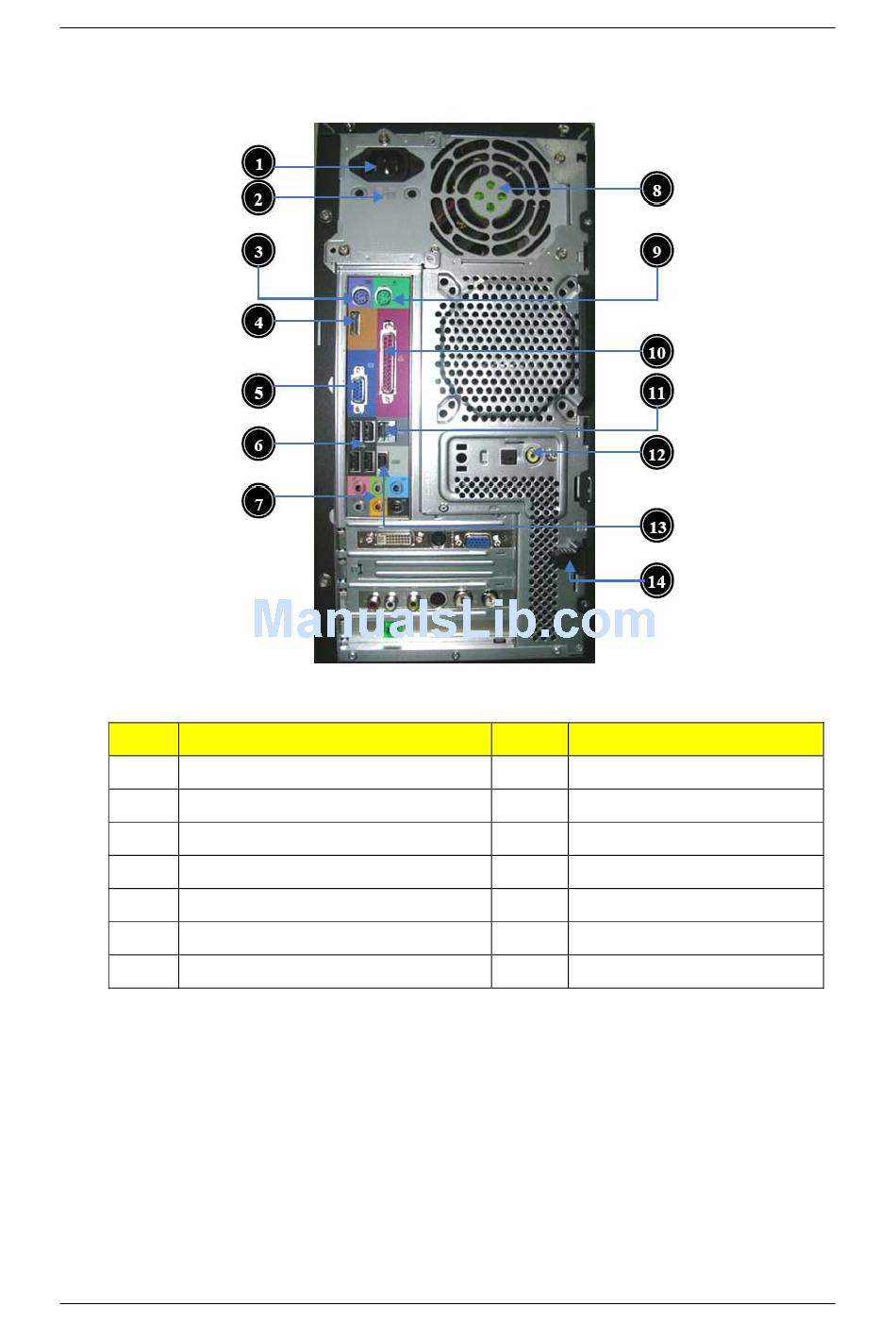

Aspire M5200 Rear Panel

Label
1
Power card socket
2
Voltage selector switch
3
PS/2 keyboard connector
4
HDMI port
5
Monitor connector
6
USB 2.0 ports
7
Audio port
Description
Label Description
8
Fan aperture
9
PS/2 mouse connector
10
Printer connector
11
LAN port
12
SPDIF port
13
1394 port
14
Lock Handle
