Remove Cards
Process:

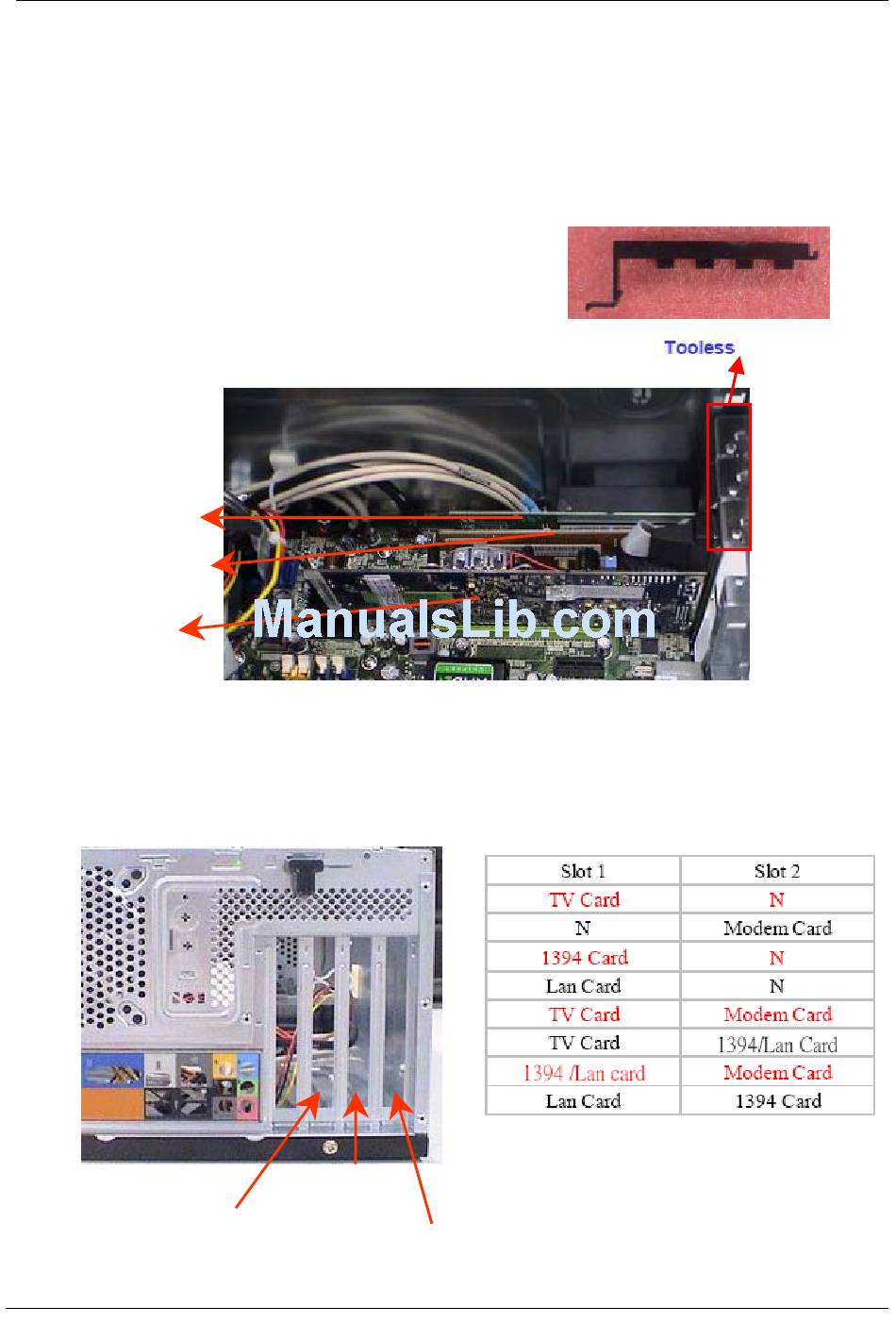

1. Release the slot cover tooless
2. Remove VGA ､TV､Modem Card，the following list is for your reference about the
mutual location relation (Optional by SKU).
Modem card
TV card
VGA card
Notice:
I. Remove card, don't touch any electric parts on PCB.
TV card
VGA card
Modem card
