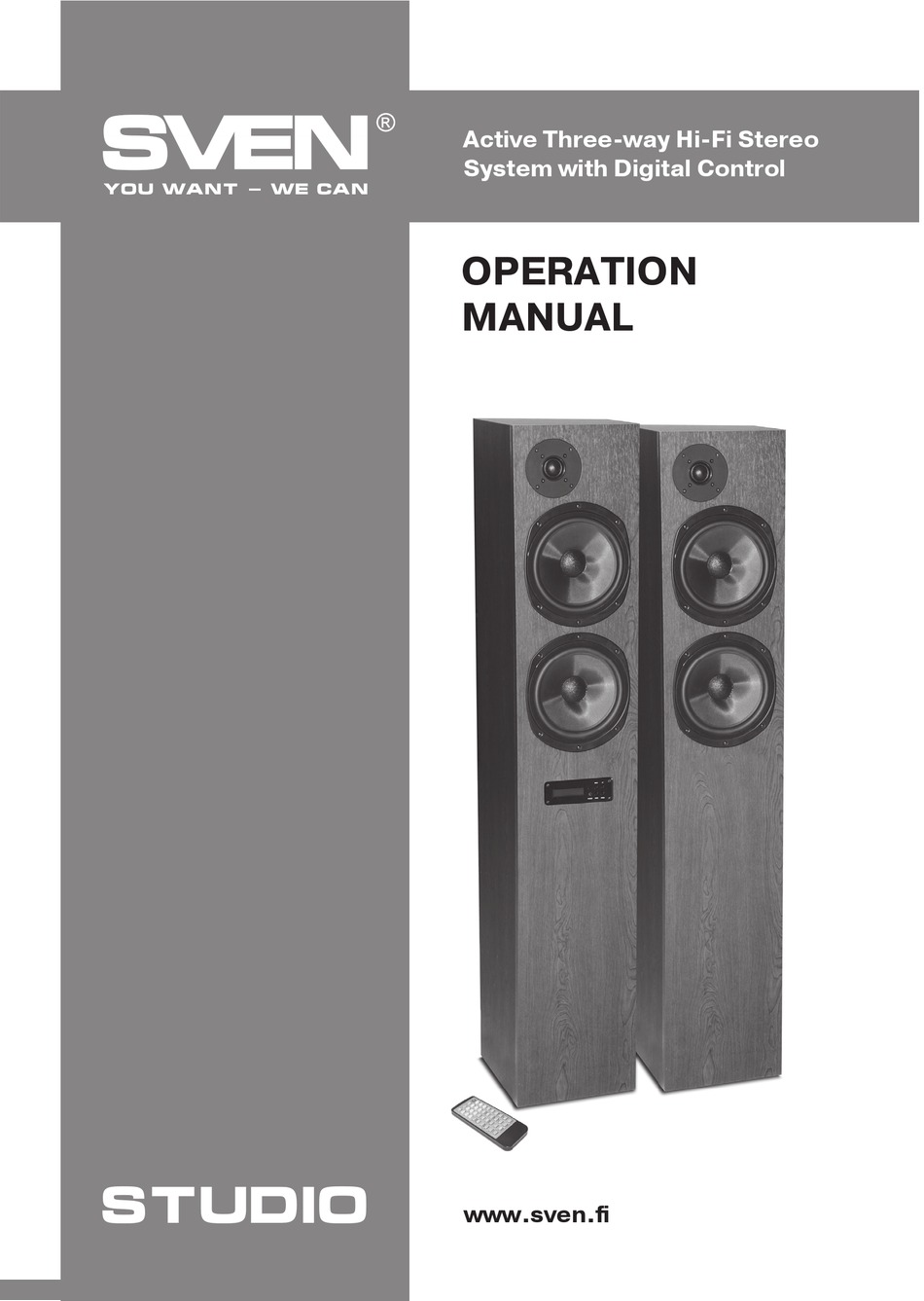

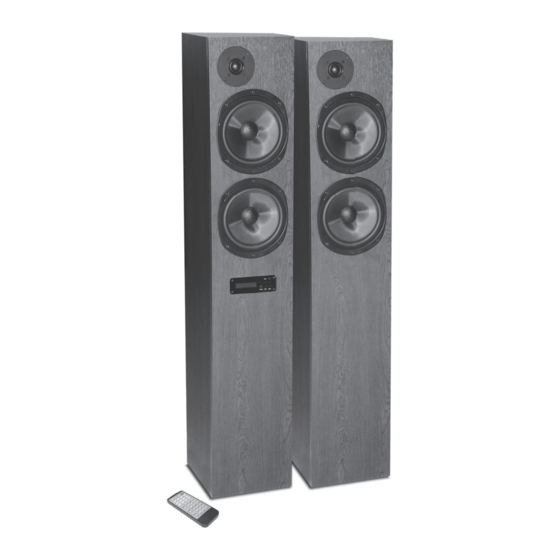

- Page 1 Active Three-way Hi-Fi Stereo System with Digital Control OPERATION MANUAL studio www.sven.fi...
-
Page 2: Table Of Contents
Operation Manual studio Congratulations on your purchase of the Sven speaker system! Please read this operation manual before using the unit and retain this operation manual in a safe place for future reference. COPYRIGHT © 2011. SVEN Company Ltd. Version 1.0 (V 1.0). -
Page 3: Description
The MSS is equipped with a built-in FM tuner, LED display, high quality USB DAC, Distortion effect module, and Karaoke module. Due to all this, STUDIO can be successfully used for providing sound for dance floors and halls, holding rehearsals and concerts without using additional costly equipment. -
Page 4: Special Features
• Carry handles • MDF case of speakers 5. SPEAKER SYSTEM PLACEMENT • Installation of STUDIO speaker system graded as Hi-Fi (High Fidelity) class system is one of the most important 0,7 x factors in achieving the best sound of the system. One should know that location of speakers affects tonal... -
Page 5: Control Panel
Active Three-way Hi-Fi Stereo System with Digital Control 6. CONTROL PANEL a volume: master volume control l aux 2: microphones mixing control b treble: treble level control m aux 3: 1 electronic musical instrument mixing c bass: bass level control control d balance: balance level control n aux 4: 2... -
Page 6: Remote Control
Operation Manual studio a b c d 8. REMOTE CONTROL a STANDBY: standby mode button b MUTE: sound off button c 0 – 9: numeric keyboard buttons for selecting preset mic 2 input 1 input 2 headphones radio stations FM antenna... -
Page 7: Connection
Active Three-way Hi-Fi Stereo System with Digital Control 9. CONNECTION Speaker connection • Before connecting, make sure that the MSS is unplugged. FM-antenna 2RCA to mini-jack signal cable 2RCA to 2RCA signal cable USB cable mic 2 input 1 input 2 headphones FM antenna COMPUTER... - Page 8 Fig. 6 Connecting the MSS to audio sources STUDIO Hi-Fi Multimedia Speaker System 2.0 can be connected to virtually any audio source (see Fig. 5). • Before connecting, make sure that the MSS is unplugged. • To connect the MSS to a CD/DVD/MP3 player, use the included 2RCA to 2RCA stereo signal cable.
-
Page 9: Operation
Active Three-way Hi-Fi Stereo System with Digital Control 10. OPERATION Switching On • To switch on the MSS, insert the power cable into the input (j, Fig. 3), and then insert the power cable plug into the mains socket. Shift the POWER On/ Off switch (i, ON position) on the rear panel of the active speaker into ON position. - Page 10 Operation Manual studio Fig. 13 Fig. 14 Fig. 15 Fig. 16 Fig. 17 Other settings, such as balance level between the right and left speaker, treble level, bass level, microphone, headphone volume level, guitar or other electronic musical instruments (bass guitar, synthesizer) volume level, can be adjusted with corresponding remote control buttons or active speaker control panel knobs.
- Page 11 Active Three-way Hi-Fi Stereo System with Digital Control Fig. 20 Fig. 21 Fig. 22 Fig. 23 Note. In order not to distract others’ attention, adjust the master volume control to its minimum by pressing VOL– button (i, Fig. 4) of the remote control or turning volume knob (a, Fig.
- Page 12 Headphone usage STUDIO stereo system has a Ø 6.3 mm jack for connecting headphones (d, Fig. 3) on the active speaker rear panel. It is also equipped with a built-in high quality headphone amplifier, which allows to enjoy music from an audio source via headphones without distracting others’...
- Page 13 Usage of electronic musical instruments STUDIO stereo system has one guitar mono input (Ø 6.3 mm) on the control panel (p, Fig. 2) for connecting an electric guitar, and two mono inputs (Ø 6.3 mm) on the active speaker rear panel for connecting other electronic musical instruments: input 1 (b, Fig.
- Page 14 Operation Manual studio • If you want to activate Distortion module to achieve the distortion effect in the sound of the electric guitar, turn the drive control knob (i, Fig. 2) clockwise to switch on this module. Use the same control knob to adjust distortion effect level.
-
Page 15: Trouble Shooting
Active Three-way Hi-Fi Stereo System with Digital Control 11. TROUBLE SHOOTING Cause Problem Solution The MSS isn’t connected to a mains outlet. The MSS does not Check the connection. turn on. Power switch is off. Turn on the switch. No sound. Volume level is set at minimum value. -
Page 16: Technical Specification
Tuner sensitivity, dB ≥ 45 S/N ratio, dB Notes: • Technical specification given in this table is supplemental information and cannot give occasion to claims. • Technical specification is subject to change without notice due to improvement of SVEN production. - Page 17 Зберігати в сухому місці. Виготовлено під контролем «Свен Скандинавія Лімітед», 48310, Фінляндія, Котка, Котолахдентіє, 15. Зроблено в Китаї. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, KOTKA, Finland, 48310. Made in China. ® Registered Trademark of Oy SVEN studio Scandinavia Ltd.
