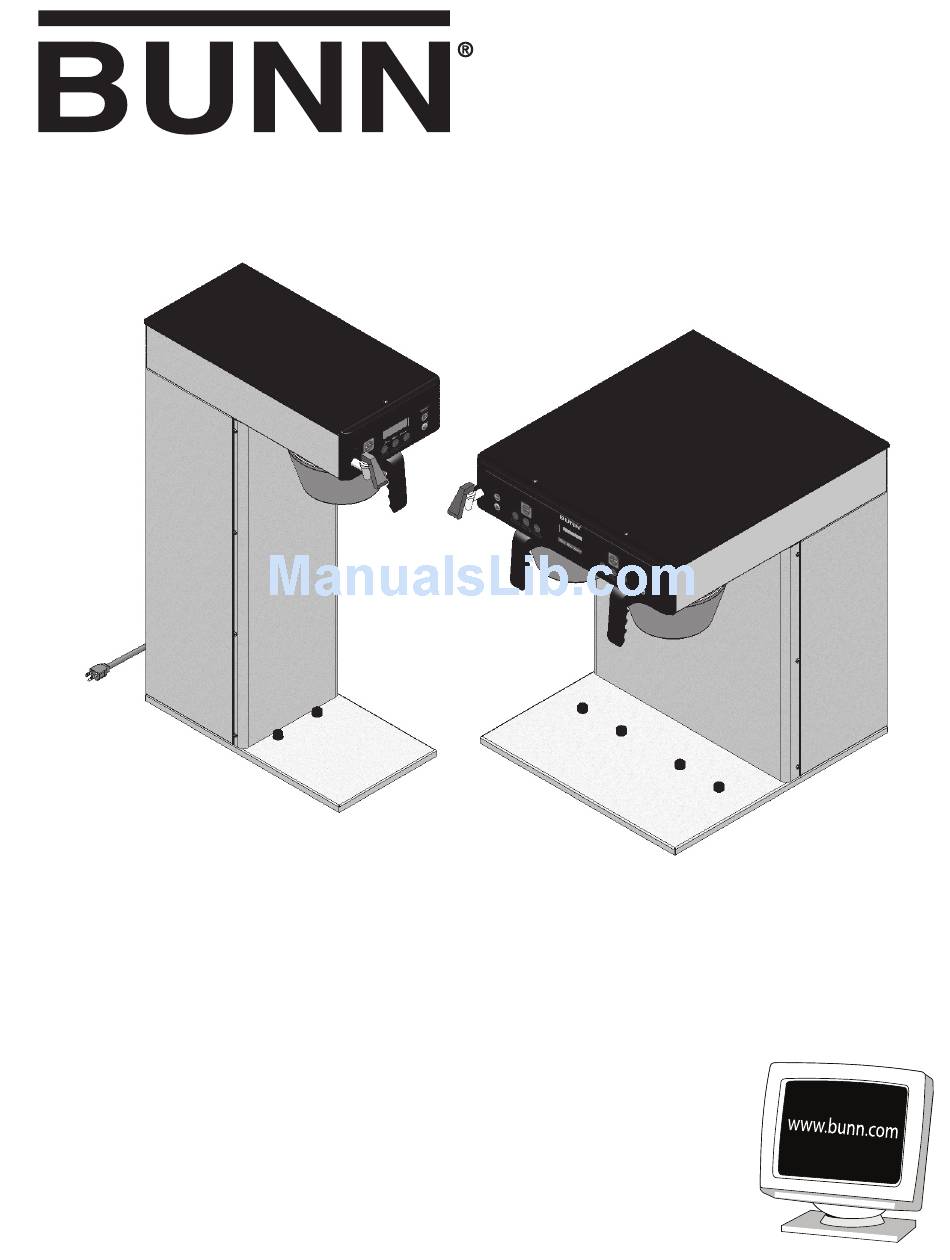

ICBA, ICBB,ICBC,
ICB-DV, ICB Twin
Infusion Series
®
with Smart Funnel
®
Supercedes Operating Manuals:
37077.0000; 38112.0001
INSTALLATION & OPERATING GUIDE
BUNN-O-MATIC CORPORATION OF CANADA
280 INDUSTRIAL PARKWAY,
AURORA, ONTARIO, L4G 3T9
PHONE: (905) 841-2866
FAX: (905) 841-2775
To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts
Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at
www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and
manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-263-2256.
41581.7000D
12/12 ©2008 Bunn-O-Matic Corporation
Advertisement
Table of Contents
Related Manuals for Bunn ICBA
Summary of Contents for Bunn ICBA
- Page 1 To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-263-2256.
-
Page 2: Warranty
BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall Bunn be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental, consequential or punitive damages. -
Page 3: Table Of Contents
Viewing Assigned Recipes, Asset, & Serial Number ...........8 Coffee Brewing ....................9 Cleaning ......................10 Glossary ......................10 Programming ....................12 ICB-DV ........................Dual Voltage Machine ICBA ..........................230 Volt Machine ICBB ..........................200 Volt Machine ICB Twin ....................... 120/208-240V or 230V Page 3 41581 120408... -
Page 4: User Notices
THIS EQUIPMENT IS ENERGIZED AT ALL TIMES UNLESS L' ÉQUIPEMENT EST TOUJOURS SOUS TENSION LORSQU'IL INDIVIDUAL BRANCH N'EST PAS DÉBRANCHÉ. ELECTRICALLY DISCONNECTED. PN: 00658.7000G 02/10 © 1985 BUNN-O-MATIC CORPORATION OF CANADA 00986.7000B 01/10 ©2007 Bunn-O-Matic Corporation CIRCUIT RATED 20 AMPS #00985.0000 #00658.7000 #00986.7000... -
Page 5: Electrical Requirements
ELECTRICAL REQUIREMENTS Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements. WARNING - The brewer must be disconnected from the power source until specified. WARNING - The power cord must be CSA Listed, Flexible Cord Type SO, SJO, SJTO, HSJO or SJOW, Rated 90° C, and the attachment plug cap must be CSA Listed, in order to avoid a hazard. -
Page 6: Plumbing Requirements
NOTE - Bunn-O-Matic recommends 3⁄8" copper tubing for all installations from the 1⁄2" water supply line. A tight coil of tubing in the water line will facilitate moving the brewer to clean the countertop. Bunn-O-Matic does not recommend the use of a saddle valve to install the brewer. The size and shape of the hole made in the supply line by this type of device may restrict water flow. -
Page 7: Operating Controls
OPERATING CONTROLS ® READY TO BREW ENABLE ENABLE ON / OFF ON / OFF WATER TEMP: 200° BREW BREW NOTE – For Singles, refer to left side of Twins A. ENABLE BREW ON/OFF SWITCH Pressing the "ENABLE BREW ON/OFF" switch (indicator on) enables the brew circuit (on that side of Twins), and energizes the tank refill circuit. -
Page 8: Initial Set-Up
INITIAL SET-UP Insert an empty funnel into the funnel rails of the brew station(s). Place an empty server(s) under the funnel(s). Connect the brewer to the power source. Make sure the corresponding "ENABLE BREW ON/OFF" switch is ON (LED will be lit). Water will flow into the tank and stop when the tank is filled to its capacity. -
Page 9: Coffee Brewing
WITHOUT A SMART FUNNEL AND MHG or DBC GRINDER: 1. Begin each brew cycle with a clean empty brew funnel. 2. Insert a BUNN filter into the funnel. 3. Pour the fresh coffee into the filter and level the bed of grounds by gently shaking. -
Page 10: Cleaning
1. The use of a damp cloth rinsed in any mild, nonabrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. Do NOT clean this equipment with a water jet device. 2. Check and clean each sprayhead. The sprayhead holes must always remain open. - Page 11 With the switch P3048 in the "ON" position, the programming menus can still be accessed to view the current settings. However, no changes will be saved. For more advanced PROGRAMMING information, refer to programming manual 41581.0001 at www.bunn.com Page 11 41581 120408...
-
Page 12: Programming
R SPRY OZ/M: XX.X L BYPS OZ/M: XX.X DONE DONE DONE DONE CALIBRATE FLOW? BREW COUNTERS? ENTER ASSET # ENTER SERVICE # For more advanced PROGRAMMING SERVICE TOOLS FACTORY DEFAULTS information, refer to programming manual 41581.0001 at www.bunn.com Page 12 41581 120408... - Page 13 Page 120408 41581 www.bunn.com site 41581.0001 programmation manuel référez USINE RÉGLAGES OUTILS? vous avancée, programmation d’information plus Pour DEFAULTS FACTORY TOOLS SERVICE BIEN? ENTRER D’INFUSIONS? COMPTEUR DÉBIT? CALIBRER SERVICE? ENTRER ASSET ENTER COUNTERS? BREW FLOW? CALIBRATE SERVICE ENTER TERMINÉ TERMINÉ...
- Page 14 Page 120408 41581 mémoire. dans sauvegardés seront changements nouveaux tous Toutefois, réglages. www.bunn.com site 41581.0001 visualiser pour accessible programmation menu programmation manuel référez «ON» à l’interrupteur Quand programmation. vous avancée, programmation à changements tous empêcher pour «ON» position d’information plus Pour à...
- Page 15 Toute NOTE: obstrués. être jamais doivent orifices nettoyez-les. d'eau diffuseurs Vérifiez d’eau. nettoyé être DOIT L’appareil Bunn-O-Matic. appareils surfaces toutes nettoyer pour recommandé abrasif doux liquide détergent dans rincé humide linge d’un L’usage NETTOYAGE...
- Page 16 Funnel Smart d’opération mode avec G9-2 Moulin utilisant Funnel Smart l’entonnoir dans frais café sélectionnée quantité Moudre l’entonnoir. dans BUNN filtre Insérez moulin. niveau hauteur petite Sélectionner MOULIN G9-2 FUNNEL SMART ENTONNOIR D’UN UTILISATION perceptible. plus n'est l'égouttement lorsque filtre café...
- Page 17 Page 120408 41581 l’infuseur. série numéro Ceci XXXXXX. affichera: l’écran secondes, délai Après gauche. cachée touche Relacher NUMBER. ASSET XXXXX l’écran l’apparition jusqu’à gauche cachée touche maintenir enfoncer l’équipement, bien numéro voir Pour arrêt. position marche-arrêt touche assurez Vous côté. l’autre pour étapes...
- Page 18 Page 120408 41581 programmation. mode l’écran apparaît (yes/+) désirés options pour Utiliser Control: programmation. mode l’écran apparaît (done) désirés options pour Utiliser Brewer: programmation. mode l’écran apparaît (no/-) désirés options pour Utiliser Digital: FONCTIONS D'ÉCRAN INTERRUPTEUR publicité. carte recettes fiches Funnel, Smart poignée...
- Page 19 étrier à vanne robinet- d’utiliser recommande Bunn-O-Matic comptoir. dessus nettoyer pour l’infuseur déplacer permet couronnes cuivre tuyau d’un d’alimentation conduite L’installation eau. d’alimentation 1⁄2 installations toutes...
- Page 20 Page 120312 41581 initial. réglage pour prêt distributeur raccordée, été tuyauterie courant. prise débranché distributeur assurez-vous suite, raccordée être doit tuyauterie avant. panneau replacez tension commutateur Réglez seulement) (Modèles connecteur. bloc électrique l’entrée à voltage vérifier continuer Avant connecteur. bloc qu’illustré...
- Page 21 Page 051012 41581 #39175.7000 #38125.0000 Corporation Bunn-O-Matic ©2006 05/06 39175.7000A programmation. l'installation avant additionnels #00824.0001 graphiques concernant instructions toutes Lire Corporation Bunn-O-Matic 2005 © 04/05 38125.0000A appropriés. interrupteurs certains d'usage hors mise requiert supplémentaire additionnel graphique d'un personnel. service qualified Utilisation logiciel.
- Page 22 Page 120408 41581 230V ......................120/208-240V Double Volt ..........................Modèle ICBB Volt ..........................Modèle ICBA Bitension Modèle .......................... ICB-DV ....................12 Programmation ......................10 Glossaire ......................10 Nettoyage .....................9 café Préparation ......8 série bien assignées, recettes Visualisation .....................8 initial Réglage .................7 fonctionnement Commandes ...................6 réservoir Vindage ......................6...
- Page 23 Page 080612 41581 Corporation. Bunn-O-Matic déposées commerce marques sont Ultra Line, Horizontal Best, Series, Signature Profits, Pouring BUNN, Like Brews Nothing Control, Brewer Digital Daypart, System, Heating Cyclonic Best, Coffee BUNNSource, bitter., better, Brew Calculator, Profit Beverage Creator, Beverage Infusion,...
- Page 24 Pour 841-2775 (905) TÉLÉCOPIEUR: 841-2866 (905) TÉLÉPHONE: ONTARIO, AURORA, PARKWAY, INDUSTRIAL CANADA CORPORATION BUNN-O-MATIC D’UTILISATION D’INSTALLATION MANUEL 38112.0001 37077.0000; d'utilisation: manuels Remplace Funnel Smart avec ® Series Infusion ® Twin ICB-DV, ICBB,ICBC, ICBA,...
