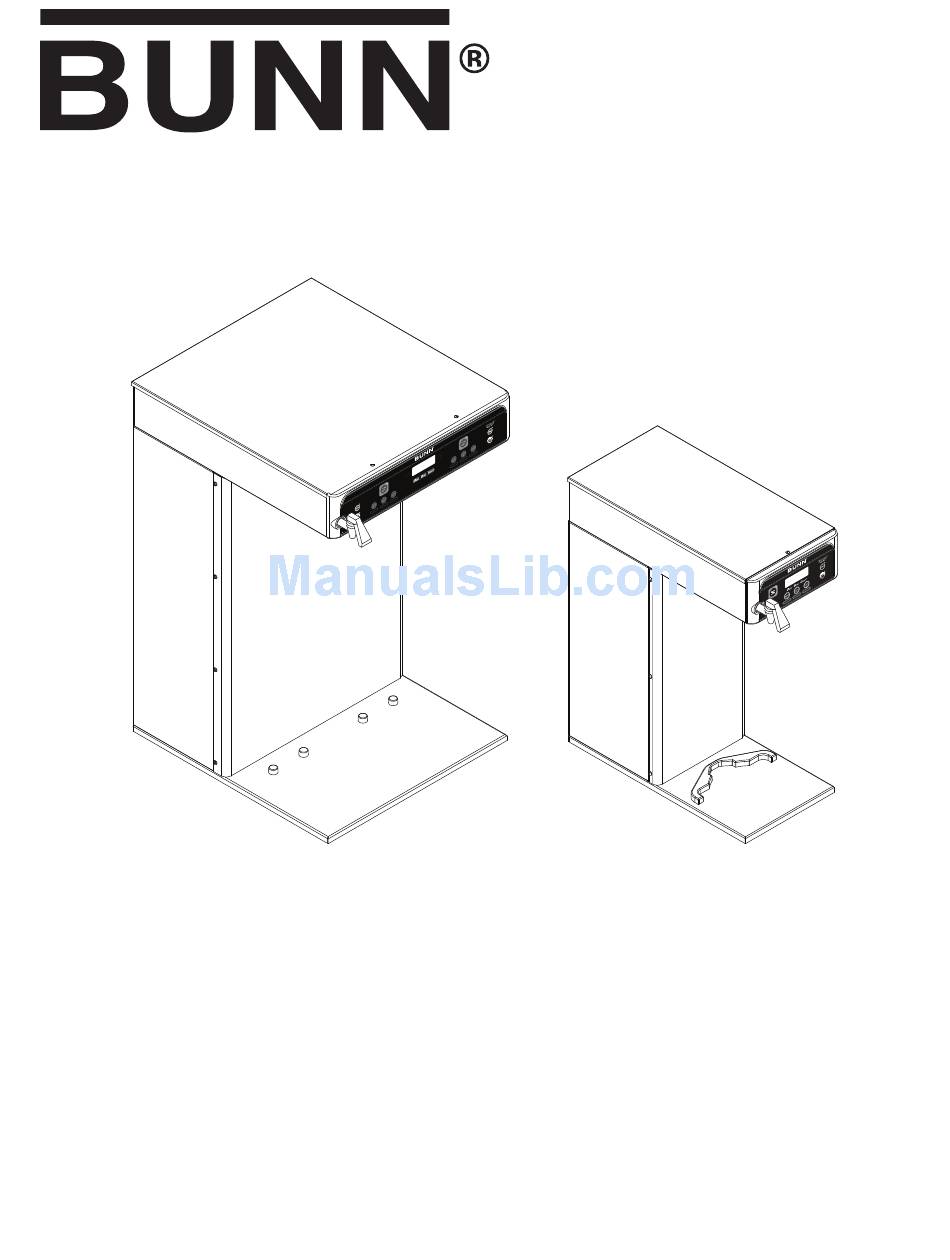

ICBA, ICBB,ICBC,
ICB-DV, ICB Twin
®
Infusion Series
®
with Smart Funnel
Supercedes Illustrated Parts Catalogs:
37078.0000; 38112.0002
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifi cations, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
39830.0000B
11/07 ©2006 Bunn-O-Matic Corporation
www.bunn.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICB Twin and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bunn ICB Twin

Summary of Contents for Bunn ICB Twin

  • Page 1 ICBA, ICBB,ICBC, ICB-DV, ICB Twin ® Infusion Series ® with Smart Funnel Supercedes Illustrated Parts Catalogs: 37078.0000; 38112.0002 ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifi cations, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION...
  • Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profi ts, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: Table Of Contents

    HOOD ASSEMBLIES ...4 TRUNKS ...6 BASES ...8 TANK AND COMPONENTS ... 10 TANK FILL/DRAIN ...12 DISPENSE/BYPASS VALVES, SPRAYHEAD, & FAUCET ... 14 ELECTRICAL AND OPERATING CONTROLS ... 18 FUNNELS ... 22 NUMERICAL INDEX ... 24 ICB-DV ...Dual Voltage Brewer ICBA ... 230 Volt Brewer ICBB ...

  • Page 4: Hood Assemblies

    * Indicates the part number listed is OBSOLETE. HOOD ASSEMBLIES ^ Indicates the part number listed is for reference only. ICB Series P3820.50 39830 110107...
  • Page 5 ITEM PART NO. QTY. TWIN 36639.0003 36639.0004 37920.0002 37920.0003 02308.0000 37870.1000 37870.1001 36355.1006 36355.1007 01308.0000 01308.0003 37827.1001 36359.1001 02308.0000 01502.0000 36364.0000 37874.0000 37881.0000 25151.0000 37299.0001 37875.0000 36367.0000 37877.0000 36368.0000 37967.0000 01308.0002 36608.0001 01317.0003 * Indicates the part number listed is OBSOLETE. HOOD ASSEMBLIES QTY.

  • Page 6: Trunks

    Tall Twin Shown 18 17 * Indicates the part number listed is OBSOLETE. TRUNKS Early model trunks with fi rst type Water Inlet Valve are obsolete- order new style as listed ^ Indicates the part number listed is for reference only. ICB Series Tall Single Shown P3821.50...
  • Page 7 ITEM PART NO. QTY. TWIN 36637.1004 36637.1005 39453.1000 37951.1004 37951.1005 37951.1006 39455.1000 02308.0000 36643.1000 36643.1001 36643.1002 39450.1000 37865.1000 37865.1001 39541.1000 01311.0001 01311.0004 29710.0011 29710.7011 00658.0000 39175.0000 37881.0000 37299.0000 37299.0002 00656.0000 00986.0000 38125.0000 38125.0001 36398.0000 34072.0000 38820.0000 01308.0002 01308.0003 -------------- 39596.0001 37953.0001 02308.0000 39599.0000...

  • Page 8: Bases

    BASES ICB Series Early style bases obsolete Tall Single Tall Twin Standard Single Standard Twin P3822.50 39830 061407 * Indicates the part number listed is OBSOLETE. ^ Indicates the part number listed is for reference only.
  • Page 9 ITEM PART NO. QTY. TWIN 36635.0002 39615.0000 37866.0001 39594.0000 25137.0001 37274.0001 02308.0000 01503.0000 36361.0000 01308.0002 02332.0005 37926.0000* * Indicates the part number listed is OBSOLETE. BASES QTY. DESCRIPTION SINGLE Base, Standard Single Base, Tall Single Base, Standard Twin Base, Tall Twin Foot (Add 2 for Tall Single, Add 4 for Tall Twin) Server Stop Screw, Pan Head #8-32 x .38"...

  • Page 10: Tank And Components

    Early model tank with rounded corners obsolete * Indicates the part number listed is OBSOLETE. TANK AND COMPONENTS ^ Indicates the part number listed is for reference only. ICB Series P3823.50 39830 061407...

  • Page 11: Tank And Components

    ITEM PART NO. QTY. TWIN 37782.0001* 37782.0003 36604.0000 00908.0000 01522.0000 01511.0000 29329.1000 37776.0000* 37776.0001 36606.0000 00908.0000 01511.0000 35937.0000 35937.0002 36605.0000 07412.1002 01501.0000 20203.0100 00908.0000 38114.0000 39085.0001 33801.0001 38969.0001 00486.0003 29485.1001 29485.1002 29485.1003 29669.1000 20942.1000 00943.0000 00942.0000 02755.1001 * Indicates the part number listed is OBSOLETE. TANK AND COMPONENTS QTY.

  • Page 12: Tank Fill/Drain

    Machine back panel SECOND TYPE * Indicates the part number listed is OBSOLETE. TANK FILL/DRAIN To bottom of tank To bottom of tank ^ Indicates the part number listed is for reference only. ICB Series FIRST TYPE Machine back panel P3824.50 39830 110107...
  • Page 13 ITEM PART NO. QTY. TWIN 35094.0001 35094.0002 35094.0004 32283.0000 24376.0001 34768.0001 37421.0001 12757.0000 01514.0000 12756.0000 37761.0000 20976.0007^ 20976.0075^ 12422.0000 12422.0001 12422.0006 11630.0001 32098.0000 20976.0067^ 20976.0009^ 20976.0062^ 38948.0001 36233.0000 36233.0001 32283.0000 37297.0001 The following items are not illustrated 20976.1000 20976.1001 20976.1002 * Indicates the part number listed is OBSOLETE.

  • Page 14: Dispense/Bypass Valves, Sprayhead, & Faucet

    DISPENSE/BYPASS VALVES, SPRAYHEAD, & FAUCET Twins To left tank outlet * Indicates the part number listed is OBSOLETE. To tank lid 33 32 ^ Indicates the part number listed is for reference only. ICB Series Singles P3825.50 39830 061407...
  • Page 15 DISPENSE/BYPASS VALVES, SPRAYHEAD, & FAUCET ITEM PART NO. QTY. TWIN 27370.0003 27370.0005 27370.0004 00970.0000 27370.0000 27370.0002 27370.0001 00970.0000 12422.0001 12422.0005 12422.0009 20976.0006^ 20976.0010^ 20976.0062^ 20976.0038^ 20976.0055^ 32591.0002^ 32591.0010^ 32591.0002^ 32591.0002^ 32591.0016^ 32591.0017^ 32591.0007^ 32591.0017^ 39149.0000 00943.0000 32648.0000 01075.0000 35070.0001 34868.0000 34867.0003 35308.1003 38969.0001...
  • Page 16 DISPENSE/BYPASS VALVES, SPRAYHEAD, & FAUCET Twins To left tank outlet * Indicates the part number listed is OBSOLETE. To tank lid 33 32 ^ Indicates the part number listed is for reference only. ICB Series Singles P3825.50 39830 061407...
  • Page 17 DISPENSE/BYPASS VALVES, SPRAYHEAD, & FAUCET ITEM PART NO. QTY. TWIN 02854.0000 02595.0000 02766.0000 02856.0005^ 02858.0000 13054.0000 02594.0000 01544.0000 29264.0000 The following items are not illustrated 20976.1000 20976.1001 20976.1002 32591.1001 32591.1002 11517.0008 * Indicates the part number listed is OBSOLETE. QTY. DESCRIPTION SINGLE Bonnet...

  • Page 18: Electrical And Operating Controls

    ELECTRICAL AND OPERATING CONTROLS ELECTRICAL AND OPERATING CONTROLS 28 21 22 31 32 33 34 35 36 28 21 22 30 29 * Indicates the part number listed is OBSOLETE. 14 15 11 ^ Indicates the part number listed is for reference only. ICB Series 14 19 15 12 25 Models w/First...
  • Page 19 ELECTRICAL AND OPERATING CONTROLS ITEM PART NO. QTY. TWIN 36367.0000 37875.0000 32572.1000 35956.0000 36587.0000 36366.0000 36373.1000 37789.1000 00973.0000 01533.0011 36449.1000 00970.0000 01533.0002 34307.1001 34307.1002 34307.1003 00970.0000 07038.0000 01106.0003 01106.0001 01317.0000 23522.0001 23696.0000 36420.1001* 36420.1002* 38344.1000 38344.1001 02308.0000 01309.0000 37804.0000 34056.0001 00985.0000 00870.0000^ 12394.0001^...
  • Page 20 ELECTRICAL AND OPERATING CONTROLS 28 21 22 31 32 33 34 35 36 28 21 22 30 29 * Indicates the part number listed is OBSOLETE. 14 15 11 ^ Indicates the part number listed is for reference only. ICB Series 14 19 15 12 25 Models w/First type inlet valve...
  • Page 21 ELECTRICAL AND OPERATING CONTROLS ITEM PART NO. QTY. TWIN 37754.1000 01315.0000 29446.0003 01347.0000 27705.0000 02308.0000 20630.0005 06064.0000 32657.0001 38894.0001 01308.0003 38820.0000 01308.0003 38280.0000 00970.0000 35955.0000 33613.0000 01519.0000 39982.0000 39981.0000 -------------- 35953.0000 35952.1003 32649.0001 00970.0000 00824.0001 The following items are not illustrated 36677.0001 36677.0003 36677.0004...

  • Page 22: Funnels

    * Indicates the part number listed is OBSOLETE. FUNNELS ^ Indicates the part number listed is for reference only. ICB Series P3833.75 39830 061407...
  • Page 23 ITEM PART NO. QTY. TWIN 32643.0000 24462.0002 03408.0004 03409.0004 32595.0000 12499.0002 33089.0000 32139.0000 32140.0000 01031.0001 * Indicates the part number listed is OBSOLETE. FUNNELS QTY. DESCRIPTION SINGLE Funnel Assy, SST (Includes Items 2 thru 9) Funnel Body W/Decals (Includes items 3 & 4) Decal, Caution-Remove Funnel Decal, Caution-Hot Liquid Handle, Funnel-Black...

  • Page 24: Numerical Index

    PART NO. PAGE NO. PART NO. 00486.0003... 11 07038.0000... 7,19 00603.0000... 19 07412.1002... 11 00656.0000... 7 11517.0008... 17 00658.0000... 7 11630.0001... 13 00824.0000... 19 12394.0001... 19 00824.0001... 21 12394.0002... 19 00870.0000... 19 12422.0000... 13 00908.0000... 11 12422.0001... 13,15 00942.0000... 11 12422.0005...
  • Page 25 NUMERICAL INDEX PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. 37881.0000... 5.7 37920.0002... 5 37920.0003... 5 37926.0000... 9 37951.1004... 7 37951.1005... 7 37951.1006... 7 37953.0001... 7 37967.0000... 5 38040.0000... 21 38040.0001... 21 38114.0000...
