Heatiator SILH50E-B Owner's Manual

Hearth and home technologies owner's manual electric fireplace silh50e-b, silh50enh-b, silh50ev-b, silh60e-b, silh60enh-b, silh60ev-b
Hide thumbs
Table of Contents

Advertisement

Quick Links

Models:
SILH50E-B
SILH50ENH-B
SILH50EV-B
SILH60E-B
SILH60ENH-B
SILH60EV-B

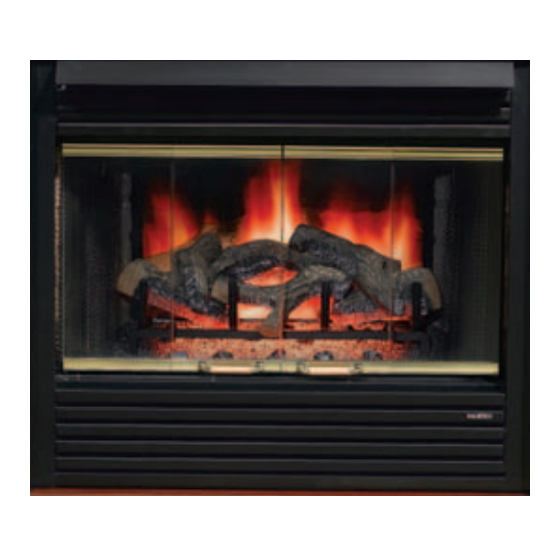

Electric Fireplace
•
Important operating
a n d m a i n t e n a n c e
instructions included.
WARNING
If the information in these instruc-
tions is not followed exactly, a
fi re may result causing property
damage, personal injury, or death.
Do not store or use gasoline or other
•
fl ammable vapors and liquids in the vicinity
of this or any other appliance.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to comply
may cause house fi re.
Made in China
Heatilator • SILHOUETTE Series Electric Fireplace • 4030-780 Rev F • 10/06
CAUTION
DO NOT DISCARD THIS MANUAL
•
Read, understand
and follow these
instructions for safe
i n s t a l l a t i o n a n d
operation.
Owner's Manual
Installation and Operation
•
Leave this manual with
party responsible for
use and operation.
WARNING
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
Glass and other surfaces are hot
during operation and cool down.
•
Keep children away.
•
CAREFULLY SUPERVISE children in same room
as heater.
•
Alert children and adults to hazards of high
temperatures.
•
Keep clothing, furniture, draperies and other
combustibles away.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SILH50E-B and is the answer not in the manual?

Questions and answers

Related Manuals for Heatiator SILH50E-B

Summary of Contents for Heatiator SILH50E-B

  • Page 1 Models: SILH50E-B SILH50ENH-B SILH50EV-B SILH60E-B SILH60ENH-B SILH60EV-B Electric Fireplace • Important operating a n d m a i n t e n a n c e instructions included. WARNING If the information in these instruc- tions is not followed exactly, a fi...
  • Page 2 Read this manual before installing or operating this heater. Please retain this owner’s manual for future reference. Congratulations on selecting a Heatilator electric fi replace. The insert you have selected is designed to provide the utmost in safety, reliability and effi ciency. As the owner of a new fi...

  • Page 3: Table Of Contents

    Listing and Code Approvals A. Certifi cation ....... . . 4 Getting Started A.

  • Page 4: Listing And Code Approvals

    Listing and Code Approvals A. Certifi cation This heater has been tested in accordance with the UL2021 Standards for fi xed and location-dedicated electric room heaters in the United States, the current CSA C22.2 No. 46 in Canada and has been listed by Underwriters Laboratories Inc.

  • Page 5: Getting Started

    Getting Started WARNING Fire Risk! • Do not install or operate damaged heater. • Do not modify heater. • Installation other than as instructed by Hearth & Home Technologies Inc. is strictly prohibited. • Do not operate the heater without fully assembling all components.

  • Page 6: Design And Installation Considerations

    B. Design and Installation Considerations CAUTION Check building codes prior to installation. • Installation MUST comply with local, regional, state and national codes and regulations. • Consult insurance carrier, local building inspector, fi re offi cials or authorities having jurisdiction about restrictions, installation inspection, and permits.

  • Page 7: Framing And Clearances

    • Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 12 in. (305 mm) from the front of the heater. 14 in. (356mm) Model 36-1/4 SILH50E-B Series 1143 41-1/8 SILH60E-B Series 1045 1270 Figure 3.1 Heater Locations 14 in.

  • Page 8: Framing

    30 in. min. (762 mm) (header height) (CEILING) 3/4 in. - 12 in. (19 mm - 305 mm) Mantel height listed is measured from the BASE of the heater. Model 36-1/4 31-1/4 SILH50E-B Series 41-1/4 34-7/8 SILH60E-B Series 1048 31-1/2...

  • Page 9: Wiring

    Wiring Model Description Voltage SILH50E-B 31 in. fi replace SILH50EV-B 31 in. fi replace SILH50ENH-B 31 in. fi replace SILH60E-B 36 in. fi replace SILH60EV-B 36 in. fi replace SILH60ENH-B 36 in. fi replace Note: Follow all national and local electrical codes.

  • Page 10: 240Vac Hardwire Installation

    C. 240VAC Hardwire Installation • Turn off circuit breaker. • Access knockout. • Remove the access cover plate. • Disconnect the power cord from the terminal block. • Remove the knockout and install the cable clamp (not provided) into the hole. •...

  • Page 11: Heater Preparation

    Heater Preparation Note: Follow all national and local electrical codes. Note: Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffi c areas. WARNING Shock Risk Improperly grounded outlets could cause electrical shock.

  • Page 12: Finishing

    Finishing A. Finishing Material • Combustible Material Material which is made of or surfaced with wood, compressed paper, plant fi bers, plastics, or any material capable of igniting and burning, whether fl ame proofed or not, plastered or not plastered. •...

  • Page 13: Mantel

    C. Mantel (CEILING) 30 in. min. (762 mm) 3/4 in. - 12 in. (19 mm - 305 mm) Model SILH50E-B 31-1/2 Series 120 & 240 Volt Units SILH60E-B Series 120 & 240 Volt Units Figure 6.4 Mantel Specifi cations WARNING Fire Risk Do NOT obstruct air inlet or outlet grilles.

  • Page 14: Heater Setup

    Heater Setup A. Remove Shipping Materials • Cut and discard the ties bundling the fi rescreen. • Remove screws holding ember bed shipping tabs in place. • Remove the tabs and discard. Replace the screws. • Remove the grate from the shipping pack and slide into place.

  • Page 15: Operating Instructions

    Operating Instructions WARNING Fire Risk • Do not operate heater before reading and understanding operating instructions. Failure to operate heater properly may cause fi re. A. Manual Controls Access Controls • Controls are located behind the lower grille panel. To access the controls, lift up on the lower grille panel and rotate it forward.

  • Page 16: Hand Held Remote Control Transmitter

    WARNING HOT! DO NOT TOUCH. SEVERE BURNS MAY RESULT. CLOTHING IGNITION MAY RESULT. Glass and other surfaces are hot during operation and cool down. • Keep children away. • CAREFULLY SUPERVISE children in same room as heater. • Alert children and adults to hazards of high temperatures.

  • Page 17: Wall Switch Control

    • Remote Transmitter Function The hand held remote transmitter is only an ON/OFF control. When the transmitter is active, the remote LED light will be RED. Upon initial use, there may be a delay of three seconds before the remote receiver will respond to the transmitter.

  • Page 18: Troubleshooting

    Troubleshooting A. Troubleshooting Guide Issues Possible Causes Heater doesn’t turn on with the main 1. Power switch is off. switch or remote transmitter. 2. Circuit breaker is tripped 3. Heater is unplugged from wall outlet. 4. Loose wiring. Heater is on, but no fl ame or low fl ame 1.

  • Page 19: Maintenance And Service

    Maintenance and Service A. Cleaning the Firebox and Control Compart- ment Keep the fi rebox, control compartment and heater system clean. Clean by brushing and vacuuming at least once a year. To access the control compartment, follow the instruc- tions for replacing the light bulbs. Follow the heater system maintenance instructions to access the heater system.

  • Page 20: Heater/Blower Assembly Maintenance

    D. Heater/Blower Assembly Maintenance • Turn off the circuit breaker/unplug the heater before servicing the heater/blower assembly. • Allow heater to cool before removing. • Open the lower grille panel to view the dashboard on the heater (the lower grille may need to be removed). •...

  • Page 21: Reference Materials

    (356 mm) 41 in. (1041 mm) Heatilator • SILHOUETTE Series Electric Fireplace • 4030-780 Rev F • 10/06 17-1/4 in. (438 mm) 31-1/8 in. (791 mm) SILH50E-B/SILH50EV-B/SILH50ENH-B 20-7/8 in. (530 mm) 36-1/8 in. (918 mm) SILH60E-B/SILH60EV-B/SILH60ENH-B 30 in. (762 mm) 31 in.

  • Page 22: Optional Components

    LIGHT ON/OFF BUTTONS BATTERY COMPARTMENT FRONT BACK RCE-HTL-B Remote Control (left) RF50E (SILH50E-B Series) RF60E (SILH60E-B Series) Side Refractory Fronts NXT-AMD 70 (SILH60E-B Series only) Heatilator • SILHOUETTE Series Electric Fireplace • 4030-780 Rev F • 10/06 DM1031 DM1031B DM1031S...

  • Page 23: Trim Kits

    B - Brass Finish S - Stainless Steel Finish PT - Pewter Finish BN - Brushed Nickel Finish Flush Surrounds (chase installations only) SILH50E-B Series SILH60E-B Series ROF44SB_* MVF44SB_* PLF44SB_* * O = Unstained Oak * P = Primed ROF48DB_*...
  • Page 24 Marble Lux Heatilator • SILHOUETTE Series Electric Fireplace • 4030-780 Rev F • 10/06 Marble Lux SILH50E-B Series SILH60E-B Series VML-550-G VML-36-G VML-550-BG VML-36-BG VML-550-BK VML-36-BK...

  • Page 25: Service Parts

    C. Service Parts SILH50E-B & SILH60E-B Service Parts Beginning Manufacturing Date:Apr 2005 Exploded Parts Diagram Ending Manufacturing Date: Active SILHOUETTE Series Electric Fireplaces 3 - Light Tray Assembly Heatilator • SILHOUETTE Series Electric Fireplace • 4030-780 Rev F • 10/06...

  • Page 26: Service Parts

    Upper Grille Assembly Hood Upper Glass Retainer Power Cord Heatilator • SILHOUETTE Series Electric Fireplace • 4030-780 Rev F • 10/06 SILH50E-B & SILH60E-B Service Parts Service Parts List SILHOUETTE Series Electric Fireplaces Beginning Manufacturing Date: Apr 2005 Ending Manufacturing Date: Active...

  • Page 27: Limited Warranty

    D. Limited Warranty Hearth & Home Technologies Inc. (HHT) Electric Fireplaces are tested and inspected prior to shipment and are guaranteed from defect to the purchaser of each new product. Any part which proves to be defective in material or workmanship under normal use within one year will be repaired or replaced without charge.* The Company will not be responsible for any expense incurred for installation, removal from service, or transportation costs.

  • Page 28: Contact Information

    E. Contact Information Please contact your Heatilator dealer with any questions or concerns. For the number of your nearest Heatilator dealer, please visit www.heatilator.com. • Important operating a n d m a i n t e n a n c e instructions included.
