A P L i s t
A P L i s t
The wireless monitor utility will find out all the available Access Points and list them

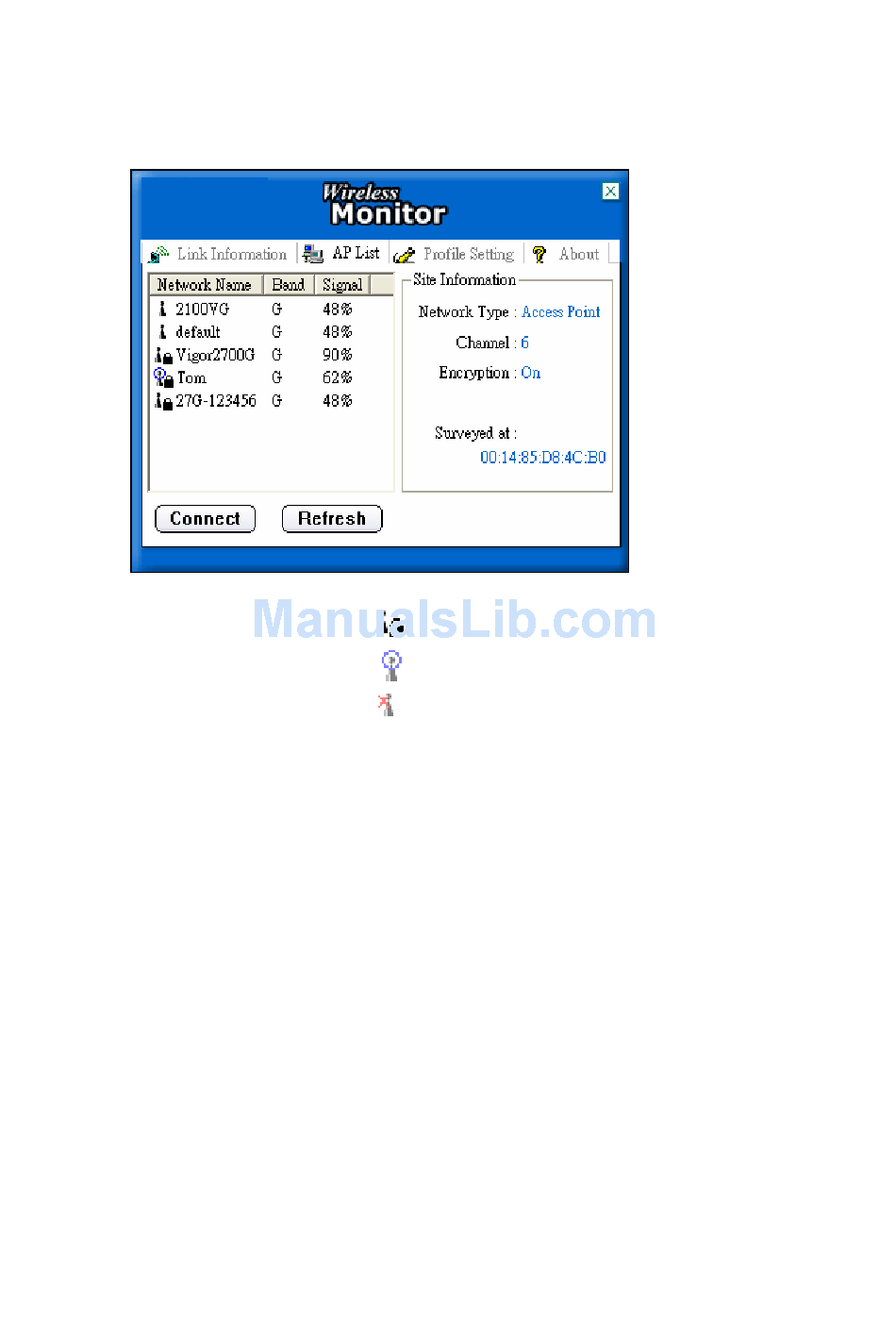

automatically for you to choose. The following figure is just an example. The real available
list depends on the AP(s) that found around your computer system.
Network Name
Band
Signal
Site Information
Connect
Refresh
22
It displays the SSID of the AP.
means profile settings for that device.
means a successful connection to that AP
means connecting to that AP failed
It means
The more the percentage is, the better the link quality will be.
It briefly displays general information for the AP you selected.
It starts to build a connection between the station (client) and
the AP.
It can re-search available APs on wireless network whenever
the user clicks it. By the way, the whole list will be refreshed in
a certain time automatically.
