Summary of Contents for Antec VP350

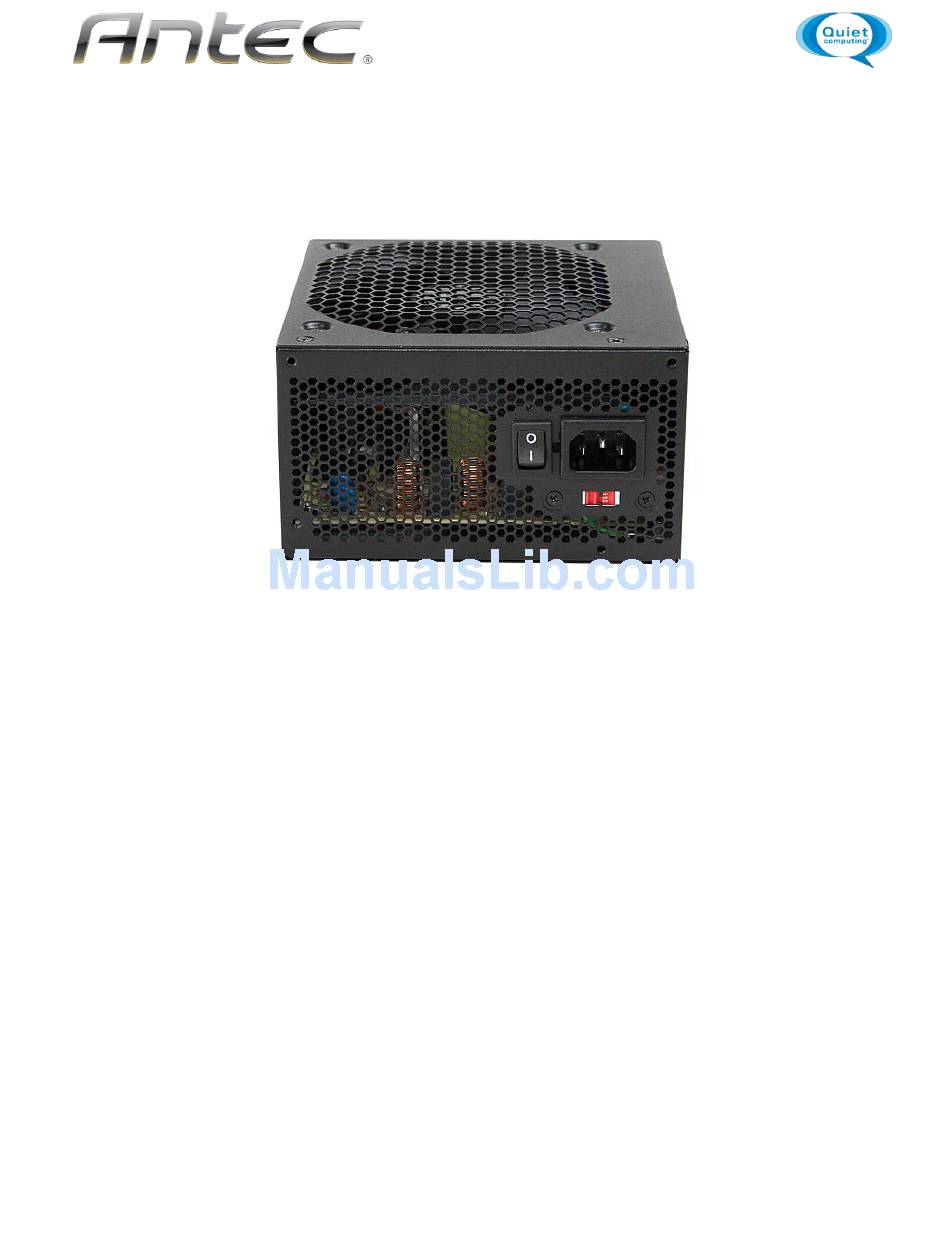

- Page 1 VP350 POWER SUPPLY USER’S MANUAL...

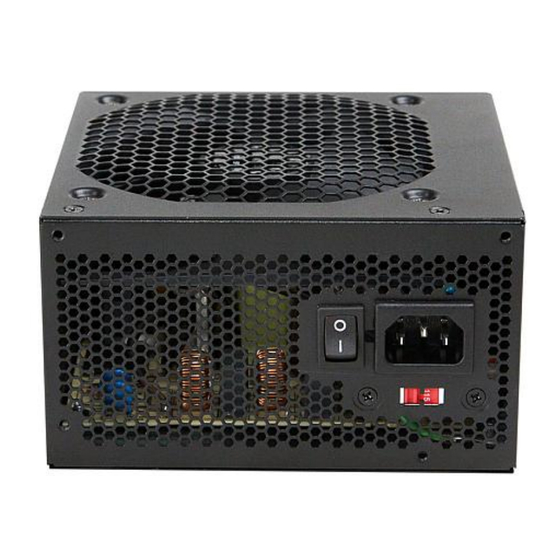

- Page 2 The VP350 is crafted for quality, performance and incredible value. This entry-level solution gives you everything you need in a power supply. And it comes with all the assurance of Antec’s AQ2 Antec Quality 2-year limited warranty. All the features, none of the waste: for builders that are strictly business, the VP350 is strictly power.
- Page 3 TABLE 1 Output Voltage Load Max. Regulation Ripple & Noise +12V ₁ ± 5% < 120 mV +12V ₂ ± 5% < 120 mV +3.3V ± 5% < 50 mV ± 5% < 50 mV -12V 0.3A ± 10% < 200 mV +5Vsb ±...
- Page 4 INSTALLATION Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your case manual if you are unsure where the power supply should be installed. Connect the 24-pin main power connector to your motherboard. Connect the 8-pin or 4+4-pin connector for the CPU.
- Page 5 Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied with your PSU. Hard drives, optical drives (CD/DVD/BluRay™) and other accessories will use either the older 4-pin Molex connector or the newer 15-pin SATA connector. 4-pin Molex connectors have two black, one yellow and one red wire.
-
Page 6: Technical Support
Tel: 510-770-1200 - Fax: 510-770-1288 www.antec.com © 2011-2012 Antec, Inc. All rights reserved. Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.
