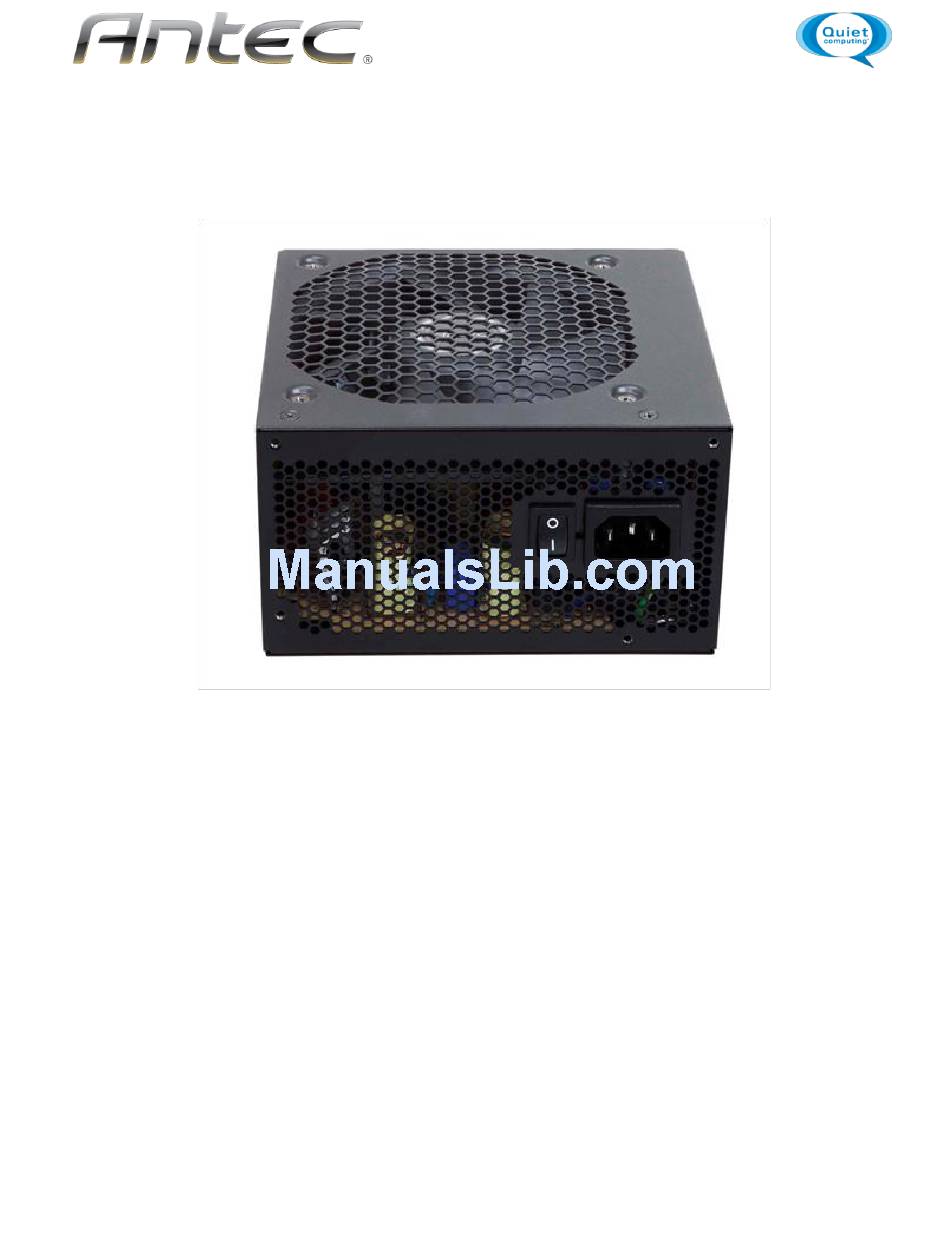

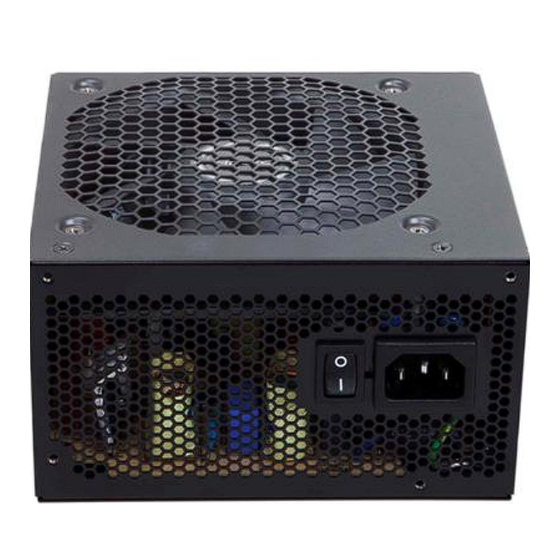

- Page 1 VP550F POWER SUPPLY USER’S MANUAL...
- Page 2 STANDARDS AND FEATURES The connectors and power specifications of the VP550F PSU are all compatible with ATX12V v2.32 & EPS12V v2.92 specifications. This power supply also features Active Power Factor Correction (PFC), which improves the power factor value of the power supply by altering the input current wave shape, helping to power transmission across the grid.
- Page 3 80 PLUS® certified power supply uses less energy and generates less heat to stay cooler, run quieter and last longer. The VP550F has been 80 PLUS® certified to be at least 80% efficient at a wide range of operating loads; this will lower your operating costs and help protect the environment.
- Page 4 TABLE 2 Cable Quantity Connectors Description 24(20+4)-pin Motherboard 8(4+4)-pin ATX12V/EPS12V 8(6+2)-pin PCI-E Molex SATA Molex SATA...
- Page 5 INSTALLATION Install the PSU into either the top or bottom of your case with the four screws provided. Refer to your case manual if you are unsure where the power supply should be installed. Connect the 24-pin main power connector to your motherboard. Connect the 8-pin or 4+4-pin connector for the CPU.
- Page 6 Connect the AC power cord to the power supply AC inlet. Be sure to use the heavy-duty cord supplied with your PSU. PCI-E graphics cards use different amounts of power. For some, a single 6-pin connector is sufficient, making the hardwired connector the preferred choice. More powerful cards use multiple connectors, including the advanced 8-pin PCI-E connector.
-
Page 7: Technical Support
Tel: 510-770-1200 - Fax: 510-770-1288 www.antec.com © 2012 Antec, Inc. All rights reserved. Specifications are subject to change without prior notice. Actual product(s) and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in different countries or areas. Some trademarks may be claimed as the property of others.
