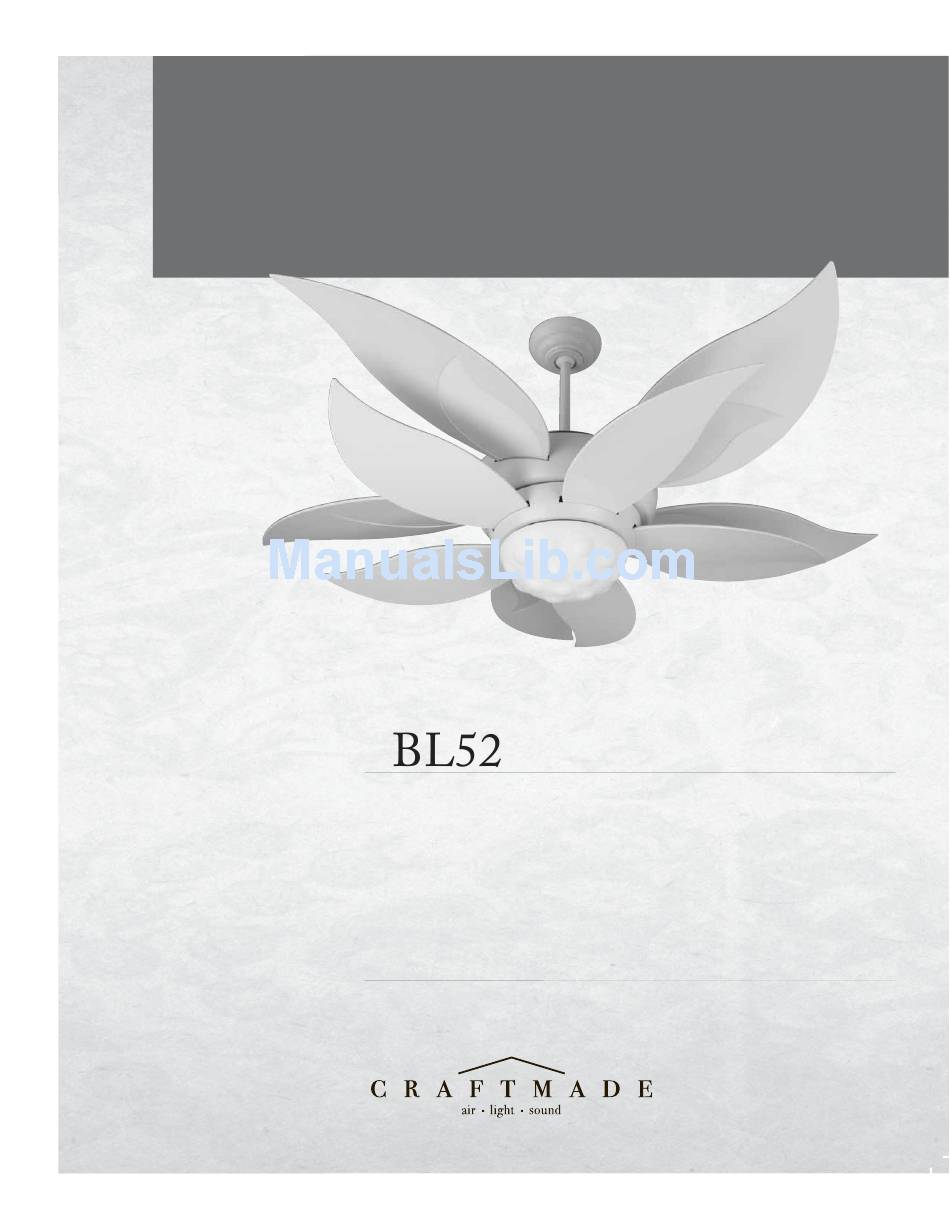

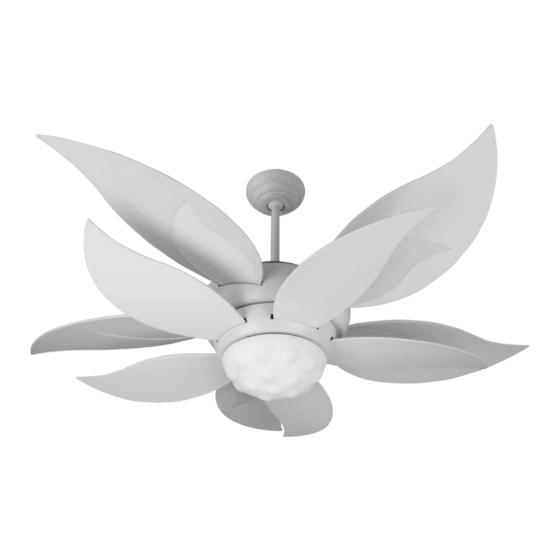

B l o o m C e i l i n g F a n Installation Instructions Instrucciones de instalación Instructions d’installation...
Page 2
Read and Save These Safety Precautions 1. Turn off electricity at main switch before wiring or servicing fan in order to avoid possible electrical shock. 2. All wiring must be in accordance with the National Electric Code (ANSI/NFPA70-1999) and local electrical codes.
Page 3
Before Assembly 1. Make sure that the fan voltage (120) is compatible with your own electrical system. 2. Check to make sure that your carton contains all the parts mentioned in the parts list. NOTE: The box can be used as a work space to prevent any damage on the ornamental surface.
Page 4
Turn off circuit breakers and wall switch to the fan supply line leads. Important: When using an existing outlet box, be sure the box is Preparation securely attached to the building structure and can support the full weight of the fan. Failure to do so can result in serious injury or death. b.) Angle Mount IMPORTANT: If using the angle mount method, check to make sure the ceiling angle is not steeper than 35º.
Installing Mounting Bracket Support Beam “J” Hook (S8) Outlet Box (A) OUTLET BOX Ceiling Mounting Bracket (1) Bracket Screws & Washers (S3) Wood Screws (S1) Wood Screws (S1) Canopy Screws (S2) NOTE: Do not mount directly to sheet rock or ceiling tile. Prior to securing mounting bracket, screw "J"...
Page 6
Unscrew and remove motor housing washer and motor housing top plate. Attach Large Pedal Blades from Top of Motor Housing.
Page 7
Reattach the Motor housing Plate and Motor Housing Washer as shown. Make sure the antenna wire is threaded through hole on top of motor housing. Downrod Assembly Locate downrod assembly (#2). Loosen ball screw on black hanging ball to free lock pin. Black hanging ball will slide down. Remove ground screw and green ground wire.
Page 8
Insert fan wires through downrod. Thread the downrod onto the motor housing making sure the wires don’t get twisted. Insert safety bolt (S7) through flange & downrod and attach nut. Tighten firmly. Tighten set screw (A) against downrod.
Page 9
Place flange cover (4) over downrod assem- bly. Attach antenna wire to flange cover. Place canopy screw cover over downrod. Place canopy (3) over downrod (2). WARNING: Failure to completely tighten downrod as described in steps above could result in the fan loosening and possibly falling. Replace hanging ball, insert hanging pin through downrod and tighten set screw "C"...
Page 10
Lift fan onto the mounting bracket (#1). Turn housing until hanging ball seats itself into ball socket (listen for click). For added security, attach safety cable from fan unit to "J" hook (S8) in outlet box. Secure by looping zip tie (S9) through safety cable and "J" hook. Tighten zip tie securely.
Page 11
Ground 1. Connect fan wires to ceiling Wire White (Neutral) Connectors wires: white fan wire to white (S6) outlet wire, black to black and Black (Power) green to green. Wire connectors (S6) are provided for your conve- Ground (Green) White nience.
Page 12
Attach canopy (3) to the mounting bracket by placing screws (S2) into slot in canopy. Twist clockwise to lock into place. Tighten screws firmly. Seat the canopy screw cover into slots and twist to lock.
Page 13
Slide the small pedal blades into place, support and attach with screws. (S4) Screw in candelabra light bulbs. (not included) Place light kit glass over bulbs twist to lock into place.
Page 14
Remote Control Operation Instructions ON/OFF For emergency shut off. HIGH Controls fan motor speed. To select desired speed, press MEDIUM button once and release. REVERSE Controls direction of fan blades. To reverse fan blades, press once and release. FAN OFF Turns fan motor speed off.
