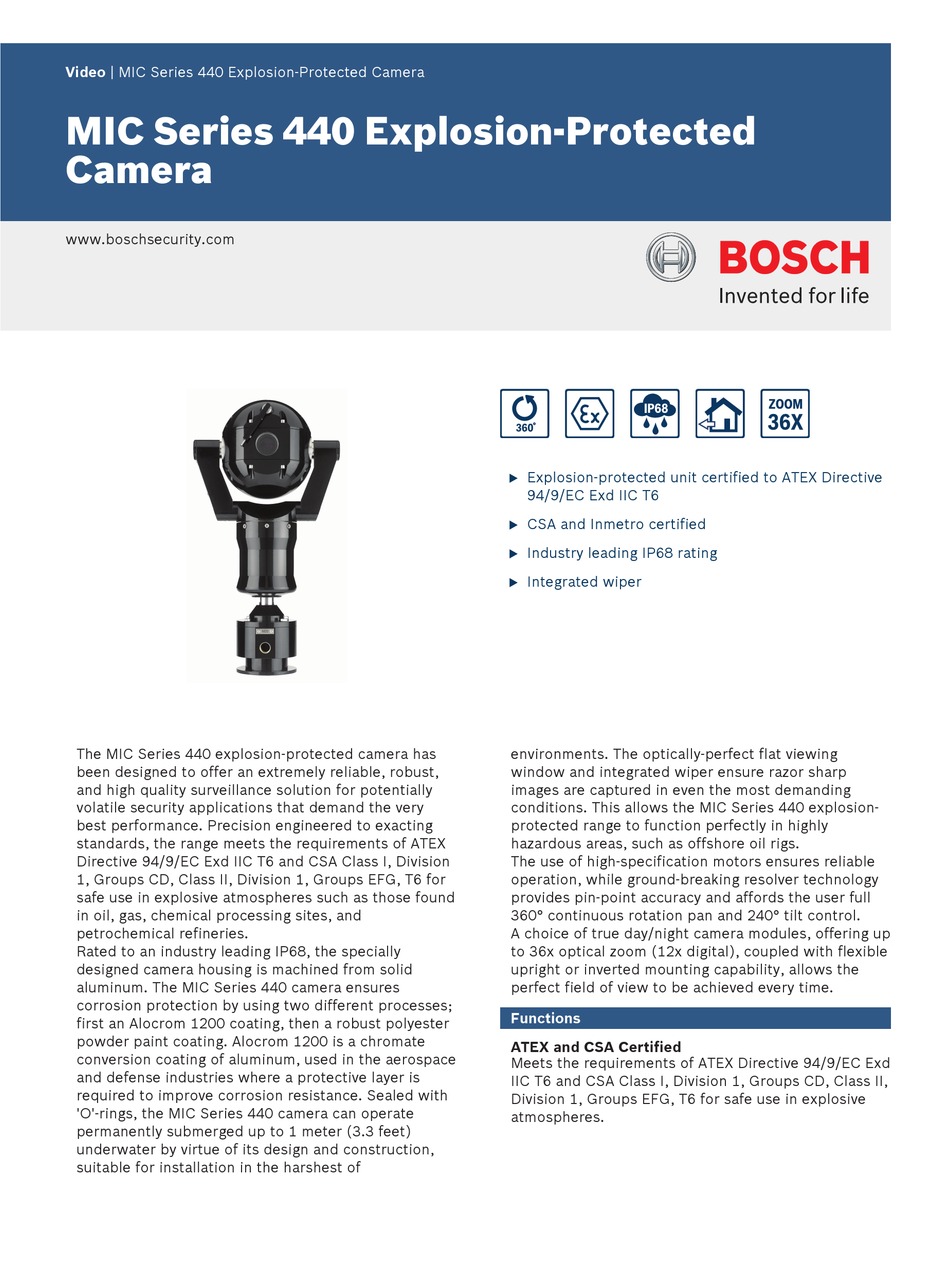

Video | MIC Series 440 Explosion-Protected Camera
MIC Series 440 Explosion-Protected
Camera
www.boschsecurity.com

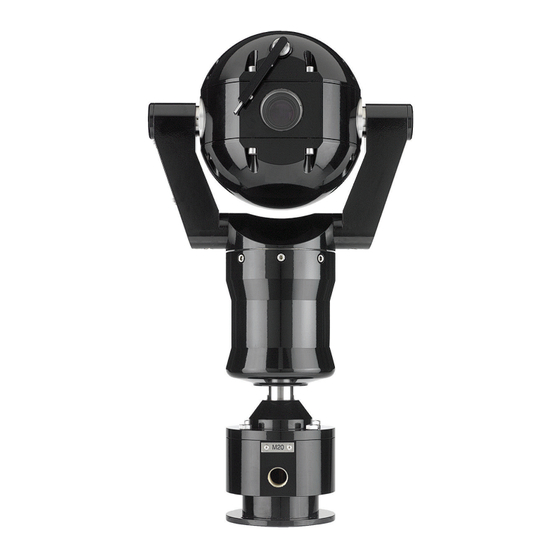

The MIC Series 440 explosion-protected camera has
been designed to offer an extremely reliable, robust,
and high quality surveillance solution for potentially
volatile security applications that demand the very
best performance. Precision engineered to exacting
standards, the range meets the requirements of ATEX
Directive 94/9/EC Exd IIC T6 and CSA Class I, Division
1, Groups CD, Class II, Division 1, Groups EFG, T6 for
safe use in explosive atmospheres such as those found
in oil, gas, chemical processing sites, and
petrochemical refineries.
Rated to an industry leading IP68, the specially
designed camera housing is machined from solid
aluminum. The MIC Series 440 camera ensures
corrosion protection by using two different processes;
first an Alocrom 1200 coating, then a robust polyester
powder paint coating. Alocrom 1200 is a chromate
conversion coating of aluminum, used in the aerospace
and defense industries where a protective layer is
required to improve corrosion resistance. Sealed with
'O'-rings, the MIC Series 440 camera can operate
permanently submerged up to 1 meter (3.3 feet)
underwater by virtue of its design and construction,
suitable for installation in the harshest of
Explosion-protected unit certified to ATEX Directive
u
94/9/EC Exd IIC T6
CSA and Inmetro certified
u
Industry leading IP68 rating
u
Integrated wiper
u
environments. The optically-perfect flat viewing
window and integrated wiper ensure razor sharp
images are captured in even the most demanding
conditions. This allows the MIC Series 440 explosion-
protected range to function perfectly in highly
hazardous areas, such as offshore oil rigs.
The use of high-specification motors ensures reliable
operation, while ground-breaking resolver technology
provides pin-point accuracy and affords the user full
360° continuous rotation pan and 240° tilt control.
A choice of true day/night camera modules, offering up
to 36x optical zoom (12x digital), coupled with flexible
upright or inverted mounting capability, allows the
perfect field of view to be achieved every time.
Functions
ATEX and CSA Certified
Meets the requirements of ATEX Directive 94/9/EC Exd
IIC T6 and CSA Class I, Division 1, Groups CD, Class II,
Division 1, Groups EFG, T6 for safe use in explosive
atmospheres.

Advertisement

Table of Contents
loading

  Also See for Bosch MIC Series 440

  Summary of Contents for Bosch MIC Series 440

  • Page 1 This allows the MIC Series 440 explosion- best performance. Precision engineered to exacting protected range to function perfectly in highly standards, the range meets the requirements of ATEX hazardous areas, such as offshore oil rigs.
  • Page 2: Integrated Wiper

    Rated to an industry leading IP68 Recommended illumination 100 to 100,000 lx Zero dust ingress and ability to withstand sustained periods of immersion under water, the MIC Series 440 Signal-to-Noise ratio (SNR) 50 dB or more explosion-protected range is perfectly suited for...
  • Page 3 3 | MIC Series 440 Explosion-Protected Camera Communication and Protocols Viewing window Tempered flat glass Communication RS485 / RS422 Construction material Machined aluminum Control protocol Bosch, Forward Vision, Pelco, American Dynamics, Standard colors Black (RAL9005), White (RAL9003) and VCL protocol variants available.
  • Page 4 4 | MIC Series 440 Explosion-Protected Camera MIC440AXBUP14618P MIC EXP PF, 18x PAL, Black, MIC440AXWUD14636P MIC EXP PF, 36x PAL, White, Bosch Prtcl Pel Prtcl MIC 18x Optical zoom, Explosion-Protected, black, MIC 36x Optical zoom, Explosion-Protected, white, upright, Bosch Protocol, wiper fitted, PAL...
  • Page 5 5 | MIC Series 440 Explosion-Protected Camera MIC Cable 10M MIC-WKT Washer Kit 10 meter (32.81 ft) composite cable with plug for Washer kit for non infrared MIC models (includes power, data and video for MIC Series cameras washer pump drive card, washer nozzle and mounting Order number brackets for wall and 4 in.
  • Page 6 Fax: +65 6571 2699 Phone +86 21 22181111 Fax: +55 19 2103 2862 www.boschsecurity.us www.boschsecurity.com apr.securitysystems@bosch.com Fax: +86 21 22182398 latam.boschsecurity@bosch.com www.boschsecurity.asia www.boschsecurity.com.cn www.boschsecurity.com © Bosch Security Systems 2013 | Data subject to change without notice 2317832715 | en, V11, 04. Oct 2013...
