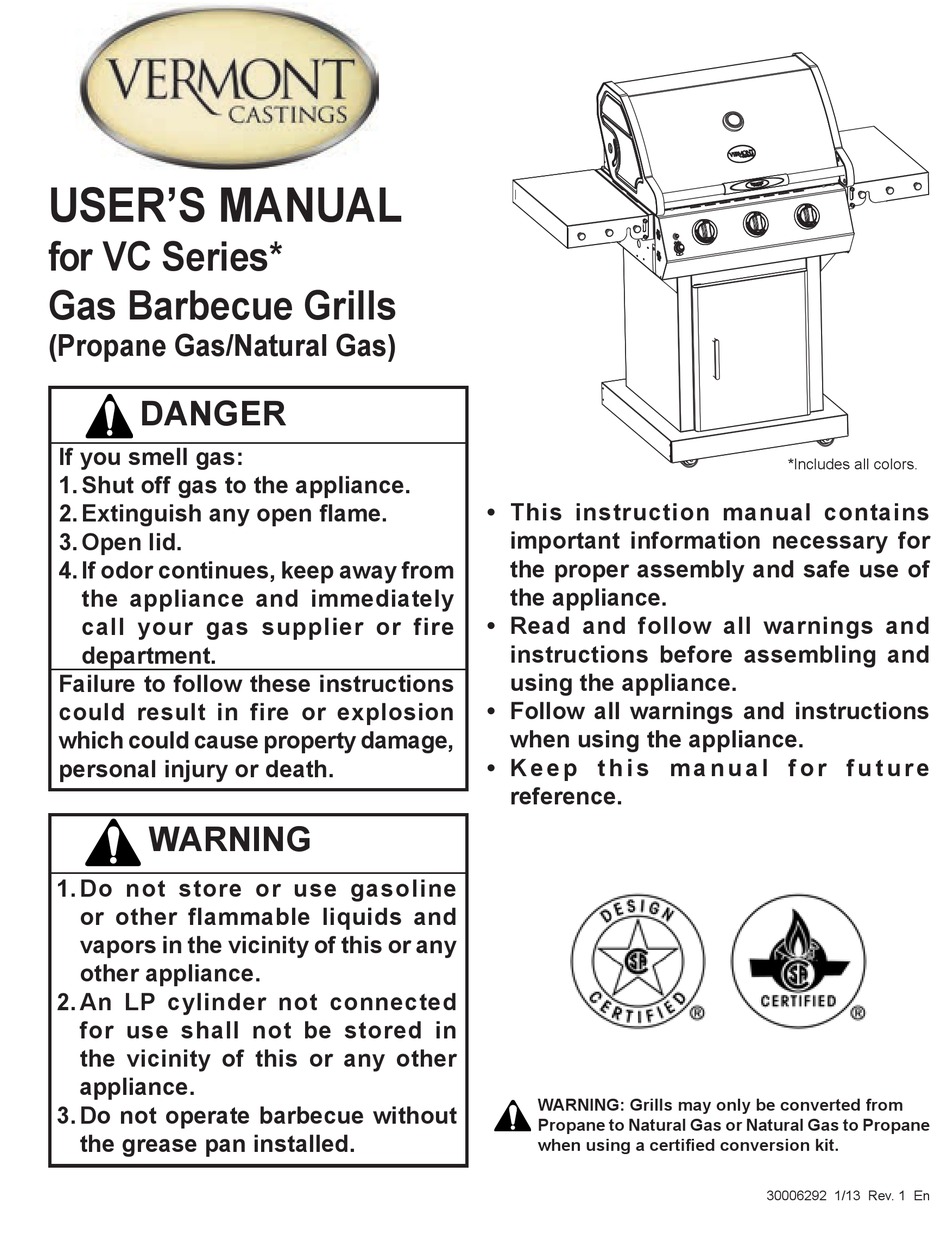

User's ManUal
for VC series*
Gas Barbecue Grills
(Propane Gas/natural Gas)
DanGer
If you smell gas:
1. shut off gas to the appliance.
2. extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from
the appliance and immediately
call your gas supplier or fire
department.
Failure to follow these instructions
could result in fire or explosion
which could cause property damage,
personal injury or death.
WarnInG
1. Do not store or use gasoline
or other flammable liquids and
vapors in the vicinity of this or any
other appliance.
2. an lP cylinder not connected
for use shall not be stored in
the vicinity of this or any other
appliance.
3. Do not operate barbecue without
the grease pan installed.
• This instruction manual contains
important information necessary for
6235
the proper assembly and safe use of
VC323SSP cover
the appliance.
• read and follow all warnings and
instructions before assembling and
using the appliance.
• Follow all warnings and instructions
when using the appliance.
• K e e p t h i s m a n u a l f o r f u t u r e
reference.
WarnInG: Grills may only be converted from
Propane to natural Gas or natural Gas to Propane
when using a certified conversion kit.
*Includes all colors.
30006292 1/13 Rev. 1 En
