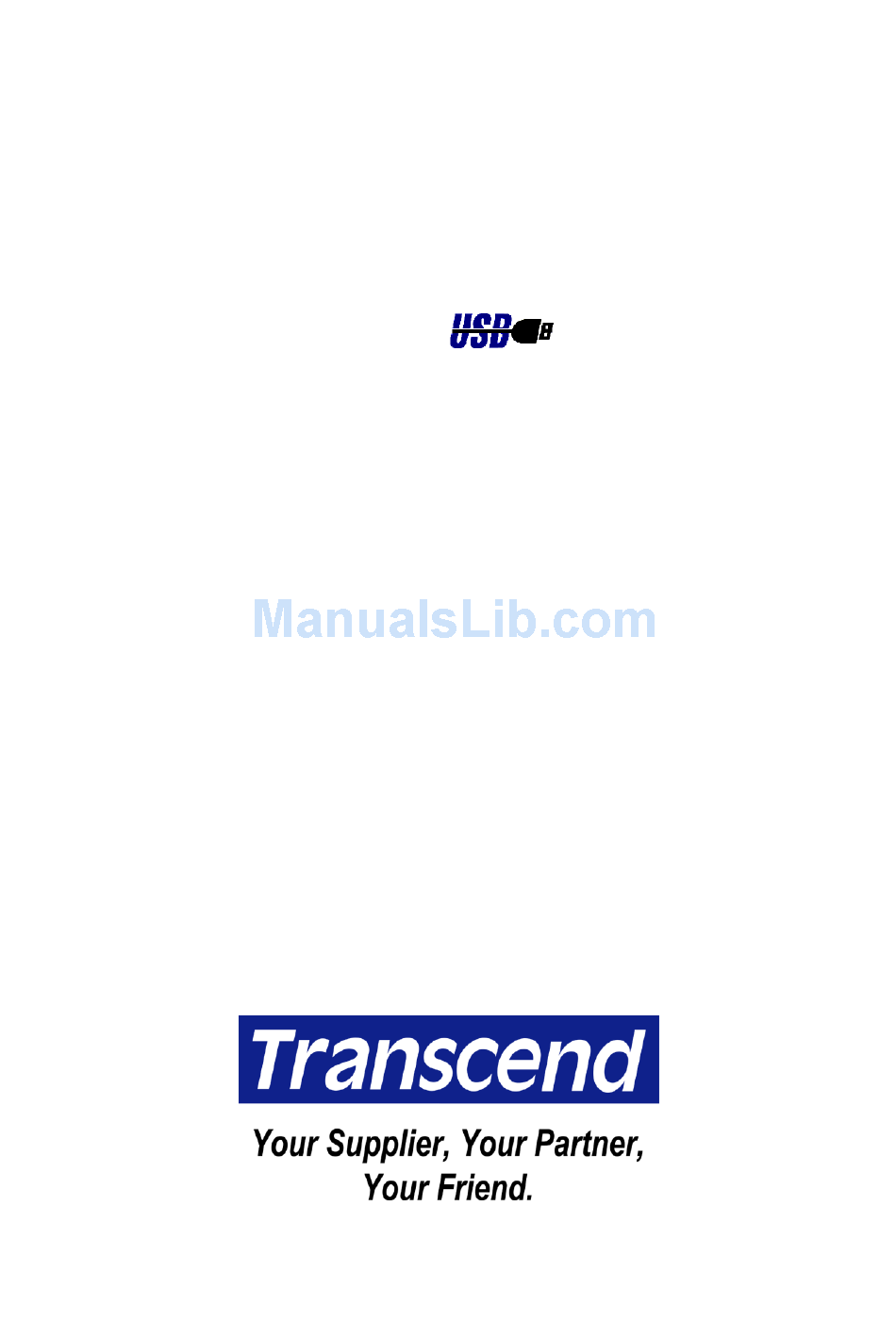

- Page 1 6-in-1 Card Reader/Writer TS0MFLRD6 User’s Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction Package Contents .................. 1 Features....................1 System Requirements ................2 Driver Installation Driver Installation for Windows 98 and Windows 2000 ...... 2 Hardware Setup..................3 To Uninstall .................... 4 Driver Installation for Windows Me and Windows XP......4 Note: Removal of 6-in-1 Card Reader/Writer in Windows 2000/Me/XP ............ -
Page 3: Package Contents
Introduction Thank you for purchasing Transcend’s 6-in-1 Card Reader/Writer, a small device designed for fast easy data exchange using 6 types of storage media—CompactFlash, IBM Microdrive™, SmartMedia, Secure Digital, ® MultiMediaCard™, Memory Stick Transcend 6-in-1 Card Reader/Writer is an easily installed device, which only needs a USB interface to allow its use by any PC, Mac or notebook computer. -
Page 4: System Requirements
System Requirements Desktop or notebook computer with USB port One of following operating systems: ® Windows 98/SE • ® Windows 2000 • ® Windows Me (No driver needed) • ® Windows XP (No driver needed) • Mac™ OS 8.6 • Mac™... -
Page 5: Hardware Setup
Hardware Setup Connect the ends of the USB extension cable into the 6-in-1 Card Reader/Writer and the available USB port of your computer. Your computer will automatically recognize the 6-in-1 Card Reader/Writer and show the “New Hardware Found” windows. Windows will install the files needed to use your device. -
Page 6: To Uninstall
Windows 2000. Driver Installation for Windows Me and Windows XP The Transcend 6-in-1 Card Reader/Writer is a driver-free device for Windows Me and Windows XP. You can connect it to an available USB port via the USB extension cable and don't have to install a special driver. -
Page 7: Note: Removal Of 6-In-1 Card Reader/Writer
Four Removable Disk drives with newly assigned drive letters will appear in My Computer. The 6-in-1 Card Reader/Writer is ready for use. Note: Removal of 6-in-1 Card Reader/Writer in Windows 2000/Me/XP Please locate the green arrow icon as shown below. Please right click on the icon. - Page 8 After the following window appears, please select the USB Mass Storage Device and click on Stop to continue. The Stop a Hardware device window will appear. Please click on OK for removal. When the Safe To Remove Hardware window appears, the 6-in-1 Card Reader/Writer is ready to be disconnected.
-
Page 9: Driver Installation For Mac Os 8.6 And Mac Os 9.X
Restart the computer to complete the installation process. Driver Installation for Mac OS X 10.1.2 The Transcend 6-in-1 Card Reader/Writer is a driver-free device for Mac OS X 10.1.2. You can connect it to an available USB port via the USB extension cable and don't have to install a special driver. -
Page 10: Warning
If you want to remove the storage card, you must first drag and drop the corresponding disk icon into the trashcan. After the disk icon disappears, you can remove the storage card. (Never remove a storage card directly because the system might halt.) When there is in no storage card in the 6-in-1 Card Reader/Writer, you can disconnect the device from the USB port at any time. - Page 11 Duration of Warranty: Transcend USB Card Readers are covered by this warranty for a period of five (5) years from the date of purchase. Transcend will inspect the product and make the determination as to whether the product is eligible for repair or replacement. The decision by Transcend regarding eligibility of the product for repair or replacement will be final and binding.
