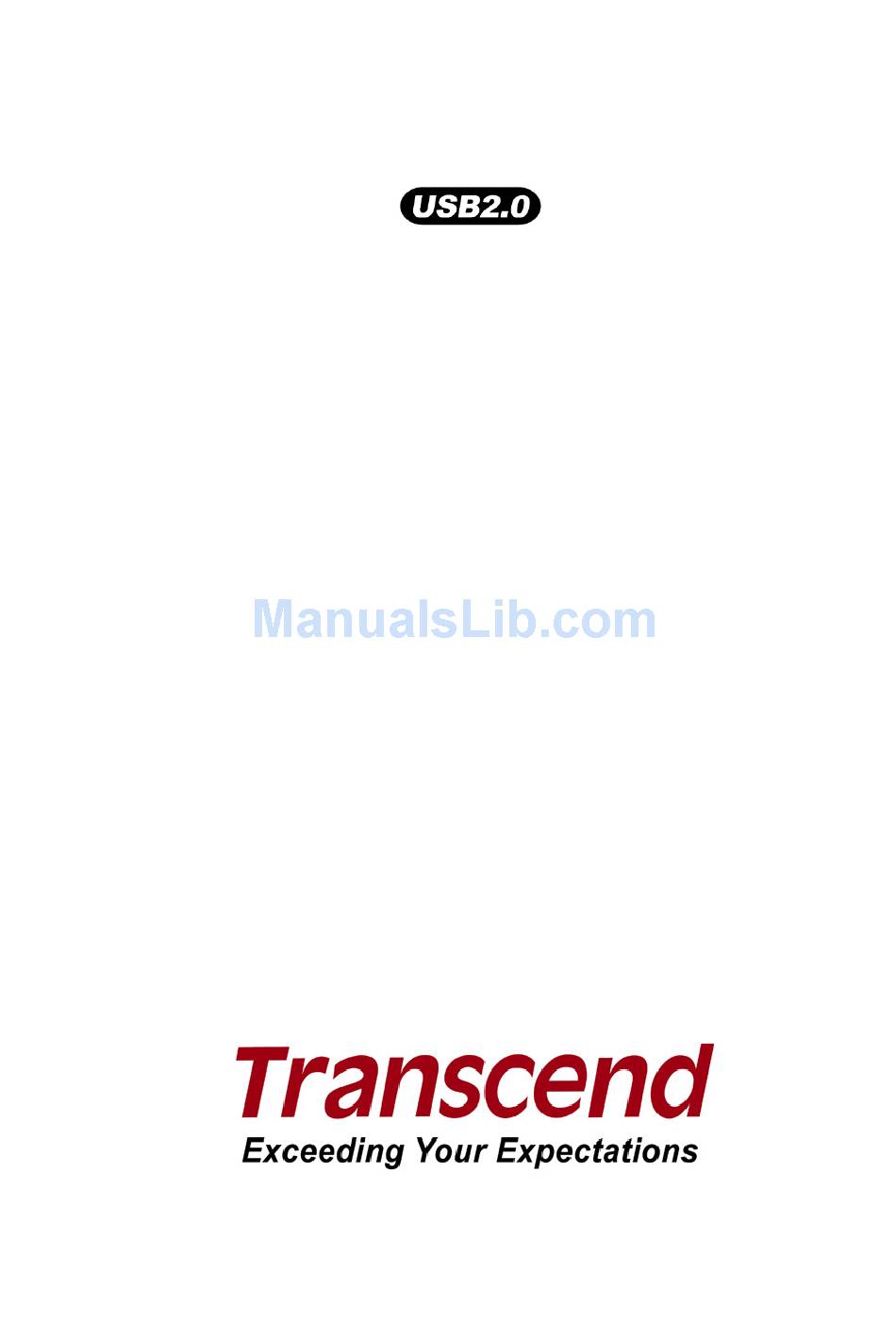

- Page 1 Transcend Multi-Card Reader User’s Manual P/N'TS-RDM1/M2/M3/M5 Version 1.5...
-
Page 2: Table Of Contents
Remove the Multi-Card Reader in Linux Kernel 2.4.2, or Later ............ 15 Troubleshooting ........................16 Multi-Card Reader TS-RDM1 Specifications..............17 Multi-Card Reader TS-RDM2 Specifications..............18 Multi-Card Reader TS-RDM3 Specifications..............19 Multi-Card Reader TS-RDM5 Specifications..............20 Transcend Limited Warranty ....................21... -
Page 3: Introduction
Memory Cards and without the need for an adapter. Transcend Multi-Card Readers plug into the USB port on your Desktop, or Notebook computer and accept the direct input of the most popular Memory Cards. In addition, Transcend’s Portable Multi-Card Readers also accept the input of a large number of reduced sized... -
Page 4: Features
Features Fully Compliant with the Hi-Speed USB 2.0 specification Hi-Speed Data transfer rates up to 480Mb/s USB powered (no external power or battery needed) LED indicates card insertion and data transfer ™ Compatible with the New SDHC Memory Card Standard Supports the most popular Memory Cards: TS-RDM1 TS-RDM2... -
Page 5: System Requirements
System Requirements Desktop or notebook computer with a working USB port. One of the following Operating Systems (OS): ® Windows ® Windows 2000 ® Windows ™ Windows Vista ™ OS 9.0, or later ™ OS X ™ Linux Kernel 2.4.2, or later... -
Page 6: Safety Precautions
Next to an air conditioner, electric heater, or other heat sources o In a closed car that is in direct sunlight Transferring Data Transcend does NOT take any responsibility for data loss, or damage during operation. Reminders Follow the procedures in the “Disconnecting from a... -
Page 7: M1 Product Overview

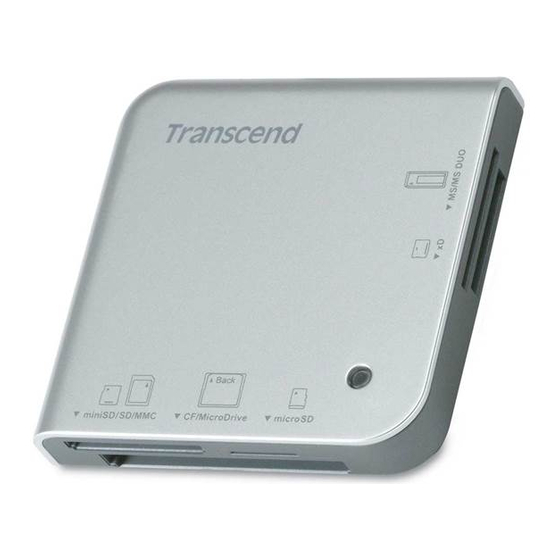

M1 Product Overview Figure 2. Multi-Card Reader M1 (direct insertion) (direct insertion) (reverse insertion) ™ ™ ® Secure Digital (SD miniSD Memory Stick (MS) ™ ™ ™ SDHC miniSDHC Memory Stick PRO ™ ™ MultiMediaCard (MMC Memory Stick Duo ™ ™... -
Page 8: M2 Product Overview
M2 Product Overview Figure 3. Multi-Card Reader M2 (direct insertion) (reverse card insertion) (direct insertion) ™ ® Secure Digital (SD CompactFlash (CF) TypeI/II xD (M-Type, H-Type) ™ SDHC MicroDrive (direct insertion) ™ ® miniSD Memory Stick (MS) (direct insertion) ™ ™... -
Page 9: M3 Product Overview
M3 Product Overview Figure 4. Multi-Card Reader M3 (direct insertion) (reverse card insertion) (direct insertion) ™ ® Secure Digital (SD CompactFlash (CF) TypeI/II xD (M-Type, H-Type) ™ SDHC MicroDrive (direct insertion) ™ ® miniSD Memory Stick (MS) (direct insertion) ™ ™... -
Page 10: M5 Product Overview
M5 Product Overview Figure 5. Multi-Card Reader M5 (direct insertion) (reverse card insertion) (direct insertion) ™ ® Secure Digital (SD CompactFlash (CF) TypeI/II xD (M-Type, H-Type) ™ SDHC MicroDrive (direct insertion) ™ ® miniSD Memory Stick (MS) (direct insertion) ™ ™... -
Page 11: Driver Installation
Put the Driver CD into the CD-ROM (Auto-Run supported). Click on the “Driver and Icon Utility” button. If the product does not attach CD, you can download the Windows 98SE driver from Transcend’s website, http://www.transcendusa.com/Support/DLCenter/. Figure 5. Windows 98SE/2000 (SP1 & SP2), Mac OS 9.x Driver Installation The InstallShield Wizard will guide you through the installation process. -
Page 12: Driver Installation For Windows Me, 2000 (Sp3, Or Later), Xp And Vista
After the drivers are installed onto the computer, plug the Multi-Card Reader into an available USB port, the “New Hardware Found” dialogue boxes will appear. Figure 7. Found New Hardware The computer will automatically detect the Multi-Card Reader and a number of Removable Disk* drive letters with separate Card Slot Identification Icons will appear in the My Computer window (The number of card slots depends on your reader). -
Page 13: Driver Installation For Mac ™ Os 9.X
Driver Installation for Linux Kernel 2.4.2, or Later Transcend’s Multi-Card Reader does not require a device driver for Linux Kernel 2.4 or later. You may connect the Reader directly to a USB port on you computer using the supplied cable. Please follow the below procedures to mount and use the device: 1. - Page 14 Example: mkdir /mnt/CardReader 4. Mount the Multi-Card Reader. Example: mount –a –t msdos /dev/sda1 /mnt/CardReader Mapping of Disks SD/MMC/miniSD /dev/sda TS-RDM1 /dev/sdb SD/MMC/miniSD /dev/sda CF/Microdrive /dev/sdb /dev/sdc TS-RDM2 /dev/sdd microSD /dev/sde SD/MMC/miniSD/microsD /dev/sda CF/Microdrive /dev/sdb TS-RDM3 /dev/sdc /dev/sdd SD/MMC/miniSD/microsD /dev/sda CF/Microdrive /dev/sdb TS-RDM5...
-
Page 15: Connecting To A Computer
Connecting to a Computer Plug the small end of the Mini USB to USB A-Type cable into the Mini USB connector on the Multi-Card Reader and plug the large end of the cable into an available USB port on your desktop, or notebook computer. -
Page 16: Disconnecting From A Computer
Disconnecting from a Computer NEVER disconnect the Multi-Card Reader from a computer when data is being transferred, or you may damage the Reader and your Card(s). ® ® ® ® Removing the Multi-Card Reader in Windows 98SE Unplug your Multi-Card Reader from your system directly when data is not transferring. ™... -
Page 17: Removing The Multi-Card Reader In Mac Os 9.0, Or Later
WARNING! To prevent data loss, always use this procedure to remove the Multi-Card ® ™ Reader from Windows Me, 2000, XP and Vista ™ ™ ™ ™ Removing the Multi-Card Reader in Mac OS 9.0, or Later Drag and drop the Disk icon corresponding to your Multi-Card Reader into the trashcan. Then unplug your Multi-Card Reader from the USB port. -
Page 18: Troubleshooting
If a problem occurs with your Multi-Card Reader, please first check the information listed below before taking your Multi-Card Reader for repair. If you are unable to remedy a problem from the following hints, please consult your dealer, service center, or local Transcend branch office. We also have FAQ and Support services on our websites. -
Page 19: Multi-Card Reader Ts-Rdm1 Specifications
, Memory Stick PRO Duo Memory Cards w/Adapter ™ ™ ™ Secure Digital (SD microSD / TransFlash ™ ™ MultiMediaCard (MMC MMCmicro ® ™ Memory Stick (MS): Memory Stick Micro (M2) Ordering Information Device Description Transcend P/N Transcend Multi-Card Reader M1 TS-RDM1... -
Page 20: Multi-Card Reader Ts-Rdm2 Specifications
Memory Cards w/Adapter ™ ™ MultiMediaCard (MMC MMCmicro ® ™ Memory Stick (MS): Memory Stick Micro (M2) Ordering Information Device Description Transcend P/N Transcend Multi-Card Reader M2 Blue TS-RDM2B Transcend Multi-Card Reader M2 Orange TS-RDM2R Transcend Multi-Card Reader M2 Silver TS-RDM2S... -
Page 21: Multi-Card Reader Ts-Rdm3 Specifications
Memory Stick (MS): Memory Stick Duo , Memory Stick PRO ™ ™ , Memory Stick Micro (M2) xD (M-Type, H-Type) Memory Cards w/Adapter ™ ™ MultiMediaCard (MMC MMCmicro Ordering Information Device Description Transcend P/N Transcend Multi-Card Reader M3 White TS-RDM3W... -
Page 22: Multi-Card Reader Ts-Rdm5 Specifications
, Memory Stick PRO ™ ™ , Memory Stick Micro (M2) xD (M-Type, H-Type) Memory Cards w/Adapter ™ ™ MultiMediaCard (MMC MMCmicro Ordering Information Device Description Transcend P/N Transcend Multi-Card Reader M5 White TS-RDM5W Transcend Multi-Card Reader M5 Red TS-RDM5R... -
Page 23: Transcend Limited Warranty
Transcend is not responsible for recovering any data lost due to the failure of a hard drive or flash memory device. Transcend’s Multi-Card Reader must be used with devices that conform to the recommended industry standards.
