Summary of Contents for Transcend m2

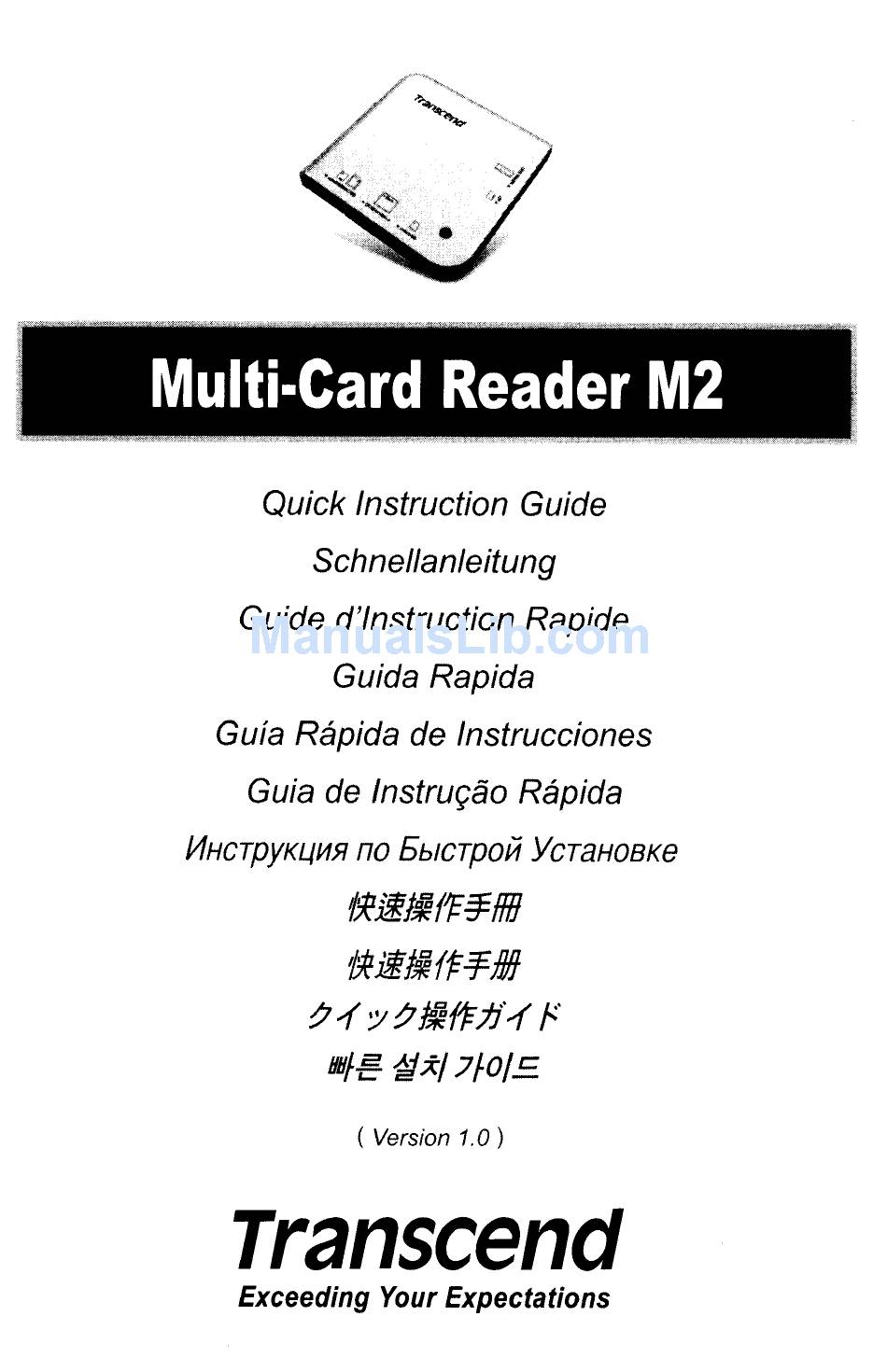

- Page 6 Transcend Multi-Card Reader User’s Manual P/N TS-RDM1/M2 Version 1.1...
-
Page 7: Table Of Contents
Safety Precautions .........................3 General Use............................3 Transferring Data ..........................3 Reminders............................3 M1 Product Overview ......................4 M2 Product Overview ......................5 Driver Installation ........................6 Driver Installation for Windows 98SE, 2000 (SP1 and SP2)............6 ™ Driver Installation for Windows Me, 2000 (SP3, or later), XP and Vista ........7... -
Page 8: Introduction
Memory Cards and without the need for an adapter. Transcend Multi-Card Readers plug into the USB port on your Desktop, or Notebook computer and accept the direct input of the most popular Memory Cards. In addition, Transcend’s Portable Multi-Card Readers also accept the input of a large number of reduced sized... -
Page 9: Features
/ TransFlash ™ ™ With Adapter MMCmicro MMCmicro ™ ™ Memory Stick Micro (M2) Memory Stick Micro (M2) System Requirements Desktop or notebook computer with a working USB port. One of the following Operating Systems (OS): ® Windows 98SE ®... -
Page 10: Safety Precautions
Next to an air conditioner, electric heater, or other heat sources o In a closed car that is in direct sunlight Transferring Data Transcend does NOT take any responsibility for data loss, or damage during operation. Reminders Follow the procedures in the “Disconnecting from a... -
Page 11: M1 Product Overview
™ ™ SDHC miniSDHC Memory Stick PRO ™ ™ MultiMediaCard (MMC Memory Stick Duo ™ ™ MMCplus Memory Stick PRO Duo RS-MMC (adapter required) ™ ™ MMCmobile Memory Stick Micro (M2) (adapter required) ™ ™ microSD / TransFlash ™ MMCmicro... -

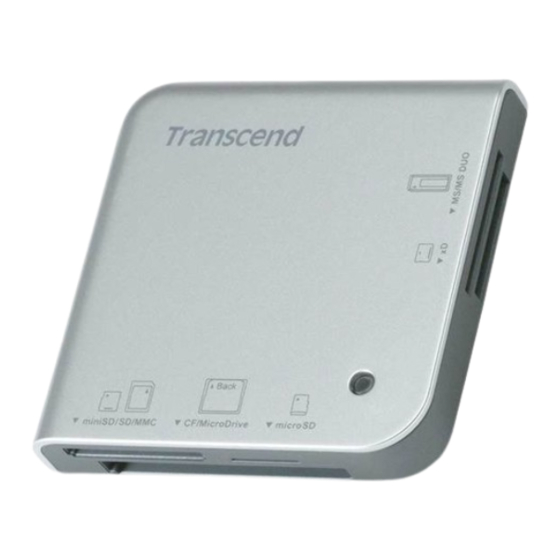

Page 12: M2 Product Overview
M2 Product Overview Figure 3. Multi-Card Reader M2 (direct insertion) (reverse card insertion) (direct insertion) ™ ® Secure Digital (SD CompactFlash (CF) TypeI/II xD (M-Type, H-Type) ™ SDHC MicroDrive (direct insertion) ™ ® miniSD Memory Stick (MS) (direct insertion) ™... -
Page 13: Driver Installation
Driver Installation Driver Installation for Windows 98SE, 2000 (SP1 and SP2) Put the Driver CD into the CD-ROM (Auto-Run supported). Click on the “Driver and Icon Utility” button. Figure 4. Windows 98SE/2000 (SP1 & SP2), Mac OS 9.x Driver Installation The InstallShield Wizard will guide you through the installation process. -
Page 14: Driver Installation For Windows Me, 2000 (Sp3, Or Later), Xp And Vista
After the drivers are installed onto the computer, plug the Multi-Card Reader into an available USB port, the “New Hardware Found” dialogue boxes will appear. Figure 6. Found New Hardware The computer will automatically detect the Multi-Card Reader and a number of Removable Disk* drive letters with separate Card Slot Identification Icons will appear in the My Computer window (The number of card slots depends on your reader). -
Page 15: Driver Installation For Mac ™ Os 9.X
Driver Installation for Linux Kernel 2.4, or Later Transcend’s Multi-Card Reader does not require a device driver for Linux Kernel 2.4 or later. You may connect the Reader directly to a USB port on you computer using the supplied cable. Please follow the below procedures to mount and use the device: 1. - Page 16 Mapping of Disks SD/MMC/miniSD /dev/sda TS-RDM1 /dev/sdb SD/MMC/miniSD /dev/sda CF/Microdrive /dev/sdb /dev/sdc TS-RDM2 /dev/sdd microSD /dev/sde Never remove or insert a memory card or disconnect the USB cable while data is being transferred. In order to avoid data transfer errors due to improper shutdown of a connected device, you should always open the transferred file in its new location to ensure successful transfer before disconnecting the Reader.
-
Page 17: Connecting To A Computer
Connecting to a Computer Plug the small end of the Mini USB to USB A-Type cable into the Mini USB connector on the Multi-Card Reader and plug the large end of the cable into an available USB port on your desktop, or notebook computer. -
Page 18: Disconnecting From A Computer
Disconnecting from a Computer NEVER disconnect the Multi-Card Reader from a computer when data is being transferred, or you may damage the Reader and your Card(s). Removing the Multi-Card Reader in Windows 98SE Unplug your Multi-Card Reader from your system directly when data is not transferring. ™... -
Page 19: Removing The Multi-Card Reader In Mac Os 9.X, Or Later
WARNING! To prevent data loss, always use this procedure to remove the Multi-Card ® ™ Reader from Windows Me, 2000, XP and Vista Removing the Multi-Card Reader in Mac OS 9.x, or Later Drag and drop the Disk icon corresponding to your Multi-Card Reader into the trashcan. Then unplug your Multi-Card Reader from the USB port. -
Page 20: Troubleshooting
If a problem occurs with your Multi-Card Reader, please first check the information listed below before taking your Multi-Card Reader for repair. If you are unable to remedy a problem from the following hints, please consult your dealer, service center, or local Transcend branch office. We also have FAQ and Support services on our websites. -
Page 21: Multi-Card Reader Ts-Rdm1 Specifications
, Memory Stick PRO Duo Memory Cards w/Adapter ™ ™ ™ Secure Digital (SD microSD / TransFlash ™ ™ MultiMediaCard (MMC MMCmicro ® ™ Memory Stick (MS): Memory Stick Micro (M2) Ordering Information Device Description Transcend P/N Transcend Multi-Card Reader M1 TS-RDM1... -
Page 22: Multi-Card Reader Ts-Rdm2 Specifications
Memory Cards w/Adapter ™ ™ MultiMediaCard (MMC MMCmicro ® ™ Memory Stick (MS): Memory Stick Micro (M2) Ordering Information Device Description Transcend P/N Transcend Multi-Card Reader M2 Blue TS-RDM2B Transcend Multi-Card Reader M2 Orange TS-RDM2R Transcend Multi-Card Reader M2 Silver TS-RDM2S... -
Page 23: Transcend Limited Warranty
Transcend is not responsible for recovering any data lost due to the failure of a hard drive or flash memory device. Transcend’s Multi-Card Reader must be used with devices that conform to the recommended industry standards. -
Page 24: Terminology
Terminology adapter..............................3, 6, 7 Device that is used to connect one hardware device to another without a loss in function. CD-ROM ............................8, 10, 13 Compact Disk-Read Only Memory is a compact disk format that can store music, text and graphics. desktop ..............................10, 11 ®...
