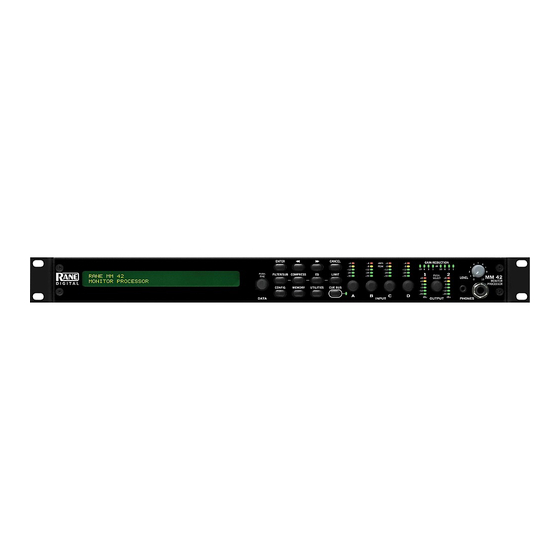

Quick Start

We know you're excited about your new MM 42. But trust us:
take your earphones out for a moment and read this Quick
Start. It covers the basics to get you tweaking your ear mixes
into submission in no time. The following paragraphs assume
you're working with a stereo (left/right) mix. For more advanced
applications you'll have to dig a bit deeper into this manual.
First, the hardware. Connect the console aux/groups
corresponding to the left and right ear mixes to the MM 42's
LINE INPUT A and LINE INPUT B respectively. Send the
MM 42 a good healthy signal, aiming to keep the loudest
peaks around the -8 dBFS mark (yellow LEDs) on the INPUT
meters. Running the Inputs "into the red" is only cool with old-
school analog gear. If needed, make further adjustments using
the INPUT controls.
Turn the PHONES LEVEL all the way down and plug your
earphones or headphones directly into either the ¼" or 3.5mm
PHONES jack. Slowly turn up the PHONES LEVEL to a
comfortable listening volume. Not hearing anything? Press the
CUE BUS button.
Press the COMPRESS button and use the Previous  
and Next   cursor keys to navigate to the M-BAND parameter.
Rotate the DATA control clockwise until SET starts flashing.
Don't panic; instead, press the ENTER key to go to the Cross-
over Frequency page. Adjust the frequency splits for each range,
pushing and turning the DATA control to make fine adjust-
ments. Press the ENTER or COMPRESS key to return to the
Compressor page. Adjust the THRSH parameter until you see a
Contents
Front Panel ....................................................................... 2
Rear Panel ........................................................................ 3
Connection Examples ..................................................... 4
Welcome Page ................................................................. 7
Basic Navigation & Editing ............................................. 7
Output Chain Configuration .......................................... 7
Adjusting Input & Output Levels ................................... 8
Signal Processing ............................................................ 9
Filters & Subwoofer ......................................................... 10
Multi-Band Compressor ................................................. 11
Parametric Equalization ................................................. 12
WEAR PARTS: This product contains no wear parts.

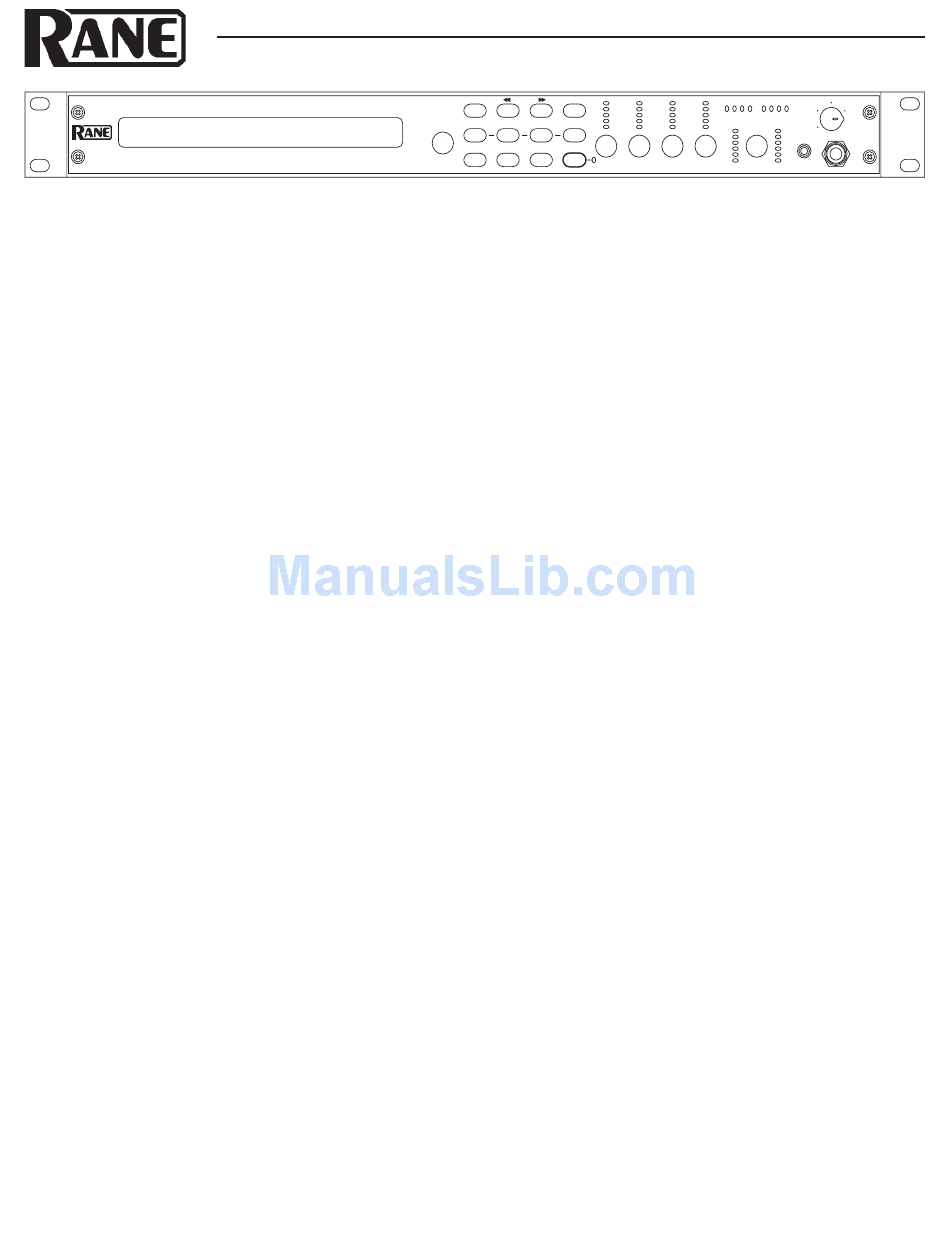

OPERATORS MANUAL
ENTER
CANCEL
-4
-8
-12
-24
PUSH:
FILTER/SUB
COMPRESS
EQ
LIMIT
-36
FINE
CONFIG
MEMORY
UTILITIES
CUE BUS
A
DATA
few blinky lights on the GAIN REDUCTION meter. Press the
COMPRESS button again to move on to band 2, and again to
move to 3, merrily making adjustments. No, you're not hal-
lucinating - the GAIN REDUCTION meter does indeed
switch automatically to show you what's happening within each
frequency band.
Okay, if you're comfortable with getting around the various
pages then the dry run is over. If you're using a wireless trans-
mitter, connect the MM 42's main OUT 1 and OUT 2 to the
inputs of the transmitter and adjust the transmitter's input gain
to a nominal level. If you're using a hardwired beltpack, con-
nect the MM 42's main Outputs directly to the beltpack inputs,
making sure the beltpack level is turned all the way down. Plug
your earphones into the beltpack and slowly turn its level up to a
comfortable listening volume.
That's it! You're ready to rock. Or folk. Or country. Or
polka....whatever your musical style. Tweak each processing
section to taste, making sure you go to the MEMORY page
once satisfied and store your hard work to one of the 16 available
(preset) locations.
There's plenty more you can do with the MM 42. The rest of
this manual covers important topics like using the SUB Output
to augment an earphone mix with onstage subwoofers or "shak-
ers", handling two independent mono mixes with one MM 42,
linking and unlinking parameters, connecting multiple MM 42s
together via the Cue Bus, and the wonderful world of MIDI, just
to name a few. So don't stop here - keep reading! You still have
3 hours until show time.
Multi-Band Peak Limiter .................................................12
Using the Cue Bus ............................................................13
Utilities .............................................................................14
Cue Bus Configuration .................................................... 14
Gain Reduction Meter Mode ..........................................15
MIDI Configuration & Transfer .......................................15
Name Device ....................................................................16
Firmware Update .............................................................16
Restoring Factory Defaults............................................. 17
Appendix: Additional Resources ...................................17
MIDI Implementation Chart ...........................................18
MONITOR PROCESSOR
GAIN REDUCTION
-4
dBFS
-4
-4
-8
PEAK
-8
-8
dB
-12
-12
-12
10
6
3
1
10
6
3
1
-24
-24
-24
1
2
PUSH:
-36
-36
-36
LEVEL
+8
SELECT
+8
+4
+4
0
0
-3
-3
-12
-12
-24
-24
B
C
D
dBu
dBu
INPUT
OUTPUT
PHONES
MM 42
4
6
2
8
MM 42
0
10
MONITOR
PROCESSOR
Manual-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM 42 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rane MM 42

  • Page 1: Table Of Contents

    If you’re using a wireless trans- LINE INPUT A and LINE INPUT B respectively. Send the mitter, connect the MM 42’s main OUT 1 and OUT 2 to the inputs of the transmitter and adjust the transmitter’s input gain...
  • Page 2: Front Panel

     CUE BUS: Activates the selected Output(s) on the Cue Bus for soloing purposes. The CUE BUS indicator lights when the Cue Bus is active. 1 Edit Pages: The 2x40 backlit LCD screen displays the edit pages for all MM 42 functions. 2 DATA control: Adjusts the currently selected parameter. Turning the DATA control clockwise increases the parameter, and turn- ing it counterclockwise decreases the parameter.
  • Page 3: Rear Panel

    MM 42, etc.) to accommodate data transfers, firmware updates, and external control. 9 Power connector: Uses the standard cord provided. The MM 42 has a universal internal switching power supply that accepts 100 to 240 VAC at 50 to 60 Hz, allowing it to work in most countries.
  • Page 4: Connection Examples

    Connection Examples The MM 42 is intended to be connected in-line between a mixing console and a wireless transmitter, hardwired beltpack or head- phone amplifier. Stereo Mix with Optional Mono Subwoofer Output (default) In this configuration a standard Left/Right mix from the console is processed. The Left and Right signals (Inputs A and B) are summed to mono and assigned to the SUB Output.
  • Page 5 –8 –8 –12 –12 –12 –12 –24 –24 –24 –24 PUSH: FILTER/SUB COMPRESS LIMIT PUSH: –36 –36 –36 –36 MM 42 FINE LEVEL SELECT MONITOR PROCESSOR CONFIG MEMORY UTILITIES CUE BUS –3 –3 –12 –12 –24 –24 DATA INPUT OUTPUT...
  • Page 6 For example, create a single or stereo “full band” mix for a group of background singers, and send this feed from the console to Line Inputs A and B of the MM 42. Augment each person’s mix with an individual feed to Line Input C of each MM 42. Connect Direct Outs A and B to Inputs A and B of another MM 42.
  • Page 7: Welcome Page

    MM 42 Welcome Page Output Chain Configuration The MM 42 features four line-level Inputs, labeled A through D, RANE CORPORATION MM 42 which are assignable in any combination to either or both of the PERSONAL MONITOR PROCESSOR output signal chains and the SUB Output. Such an arrangement allows tremendous flexibility in setting up mixes.
  • Page 8: Adjusting Input & Output Levels

    Adjusting Input Levels Adjusting Output Levels The Input Levels page is automatically displayed any time an The Output Levels page is automatically displayed any time the INPUT A/B/C/D control is adjusted. OUTPUT control is adjusted. This page differs slightly depend- ing on the currently selected configuration mode.
  • Page 9: Signal Processing

    Overview for an artist’s hearing difference between right and left ears, for So what does the MM 42 have under the hood you ask? Plenty! example) or to process two completely independent mono mixes. Routing options allow the assignment of any combination of the...
  • Page 10: Filters & Subwoofer

    Filters & Subwoofer Parameters Pressing the FILTER/SUB button again displays the SUB- Pressing the FILTER/SUB button displays this edit page: WOOFER SETTINGS edit page: FLT ON | LOW SHELF HIGH SHELF | LOW CUT HIGH CUT LEVEL OUT 1+2| 100Hz 10kHz 20Hz 200Hz...
  • Page 11: Multi-Band Compressor

    (say, 200 Hz and below) while keeping the INF = hard compression. vocals and guitars strong and present. The multi-band compressor used in the MM 42 is of the rms Determines how quickly the (root mean square) variety with a soft-knee characteristic for a...
  • Page 12: Parametric Equalization

    Parametric Equalization Multi-Band Peak Limiter Parameters Parameters Repeatedly press the EQ button to move through each of the The Compressor may be used in either full-range (M-BAND five EQ bands. off) or multi-band (M-BAND on) modes. Repeatedly press the COMPRESS button to move through each frequency band PEQ ON | EQ GAIN FREQ...
  • Page 13: Using The Cue Bus

    The signal from that unit is automatically routed to OUT 1+2 | BND1-2=200Hz BND2-3=2.0kHz | the Cue Bus and can be monitored from any MM 42 using the PHONES or CUE OUTs. See the Cue Bus Configuration section on page Manual-...
  • Page 14: Storing And Recalling Memories (Presets)

    Storing and Recalling Memories Utilities (Presets) Repeatedly pressing the UTILITIES button cycles through the following useful pages. The current CONFIG settings and parameters for all processing sections (filter/sub, compressor, EQ, and limiter) are saved when Cue Bus Configuration you store a Memory. Input and output levels and all UTILITIES settings are not stored.
  • Page 15: Gain Reduction Meter Mode

    When LATCH mode is selected, pressing the CUE BUS but- It is possible to transfer an individual Memory or all Memories ton once routes the MM 42’s signal to the Cue Bus and the front from the MM 42 to another MM 42 or other MIDI device.
  • Page 16: Name Device

    Backing up Memories to a PC or other MIDI Device UPDATE DEVICE FIRMWARE page is displayed. Be sure the MIDI Tx of the MM 42 is not set to off. 3. Rotate the DATA control to select YES and press ENTER.
  • Page 17: Restoring Factory Defaults

    Phone: 415-409-EARS or (3277) the signal DOWN before performing a reset. Email: hear@hearnet.com The MM 42 can be restored to its original state (minus the Web: www.hearnet.com new audio gear smell, of course) by doing the following: 1. Press and hold the UTILITIES button.
  • Page 18: Midi Implementation Chart

    : l o d to ; l a d to 1 - ; l a , r e d to ; l a ©Rane Corporation 00 th Ave. W., Mukilteo WA -0 USA TEL --000 FAX -- WEB www.rane.com Manual- 107833...
