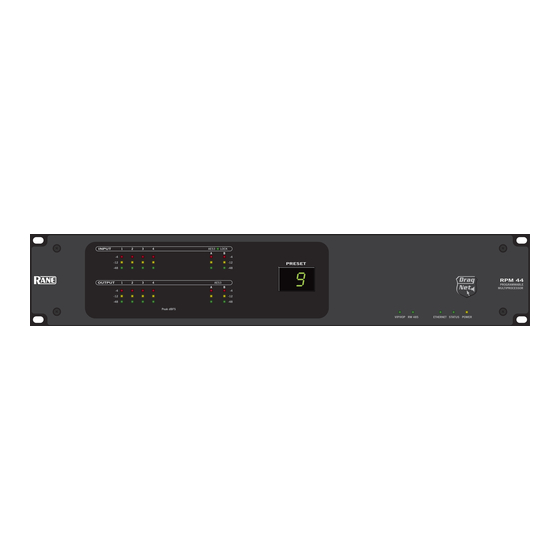

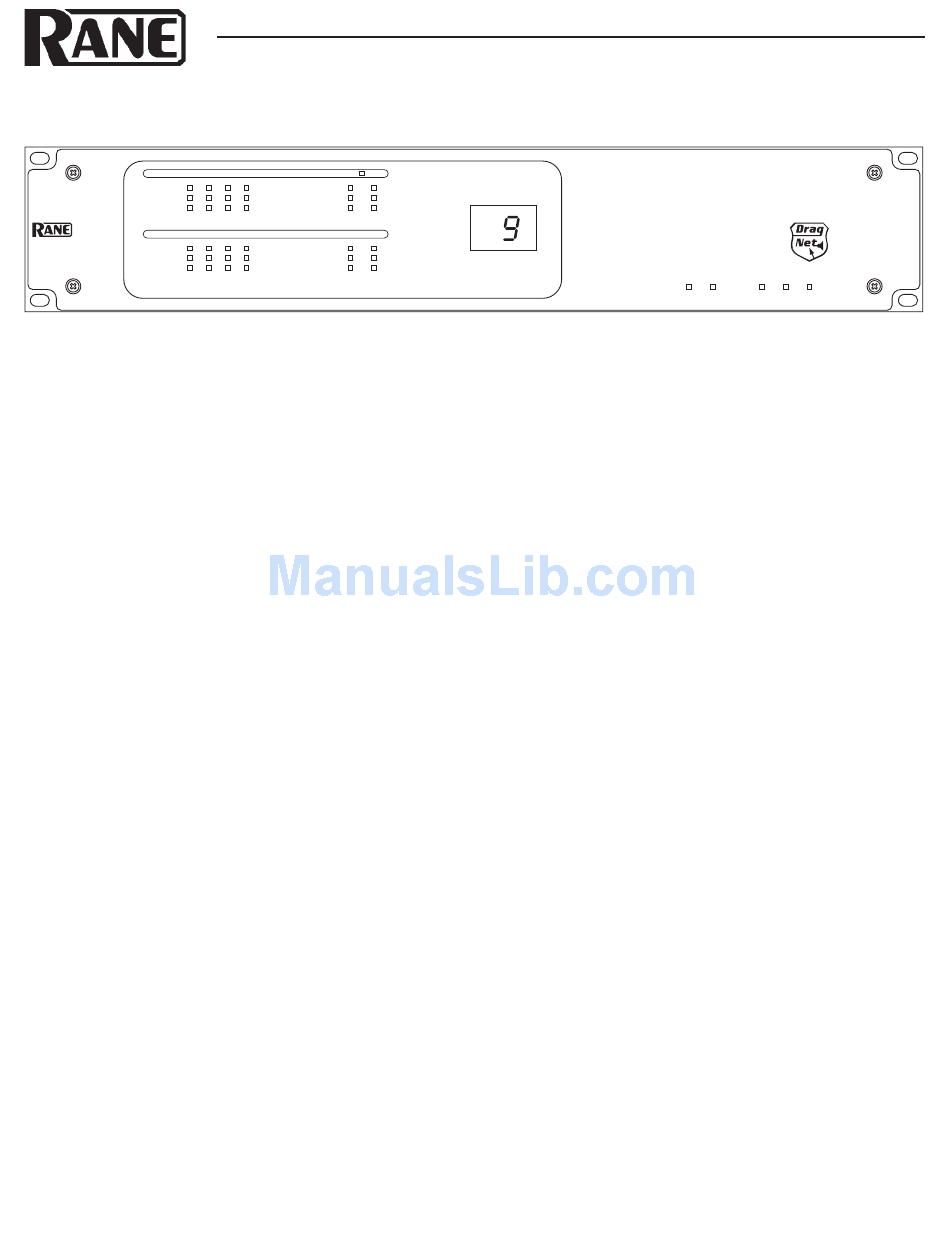

Rane RPM 44 Hardware Manual

INPUT 1
-4
-12
-48
OUTPUT 1
-4
-12
-48

QUICK START

This section is intended to help you make the physical con-
nections and software manipulations necessary to get up and
running with your sleek new RPM 44. If you don't read the en-
tire Hardware Manual, at least read this section. It is also recom-
mended that you read the Quick Start section of the Drag Net
Software Manual. If the Drag Net software is not yet installed
on your computer, please install it now.
To be safe, leave the audio connections until last. Begin by
connecting the IEC power cord. Observe that the POWER LED
on the front panel illuminates. After a few seconds, the STATUS
LED should turn from red to yellow to green, and the PRESET
display should have a number in it (00, if it's the first time you've
powered the device). If the POWER comes on, but the STATUS
LED does not turn green, contact the factory.
Connect one end of the Ethernet crossover cable (supplied
with the unit) to the 10Base-T jack on the rear panel. Connect
the other end of the cable to an Ethernet port on your computer.
The LINK LED on the rear panel should be lit. If it is not,
verify that you are indeed using a crossover cable, not a standard
Ethernet cable. A standard Ethernet cable should only be used
if you are connecting the RPM 44 and a computer indirectly
using an Ethernet switch. Launch the Drag Net application and
follow the steps to create a new project and new RPM 44 device
configuration. The Project window then appears. The Proj-
ect window then appears. Click the Configure Hardware IP
shortcut to set the unit's IP address to be compatible with your
computer's Network settings. Tip: If you aren't sure what IP to
use, try the address 192.168.69.69 and subnet 255.255.255.0. This
finds the default factory address without manually setting it.
WEAR PARTS: This product contains no wear parts.
HARDWARE MANUAL
2 3 4 AES3 LOCK
A B
-4
-12
-48
2 3 4 AES3
A B
-4
-12
-48
Peak dBFS
PROGRAMMABLE MULTIPROCESSOR
PRESET
Now click on the Poll button in the toolbar. A device name
and IP address should appear under the Live folder in the
Project window. If a device does not appear, consult Drag Net's
online Help for instructions on configuring and verifying your
computer's Network settings.
The audio path within the RPM 44 is displayed in Drag
Net's Device Configuration window as a collection of blocks
wired together to form a Processing Map. These maps are cre-
ated offline as Storage configurations, which are then trans-
ferred to a Live unit. Drag blocks from the Palette onto the
Processing Map and wire them together to create the audio
path. Save this file frequently using the File > Save command.
Transfer the selected Storage configuration to a Live unit using
the Transfer Config button in the Project window. A new,
minty green Device Configuration window opens once the
transfer is complete, indicating you are now online with a Live
device. Double-click a processing block to display and adjust its
Properties (parameters) in real time on a Live device – there is
no need to go offline to make parameter changes.
Once you have a useful configuration in the unit, connect
balanced audio INPUTS and OUTPUTS to the Euroblocks on
the rear panel, then turn on the amplifier. As a precautionary
measure, all outputs are muted during and after a configuration
transfer. Unmute each output individually, or use the handy
Mute Outputs button in the toolbar. Once all outputs are
unmuted, audio passes through the unit along the connections
you defined.
RPM 44
VIP/VOP RW 485 ETHERNET STATUS POWER
RPM 44
PROGRAMMABLE
MULTIPROCESSOR
Manual-1
