Zonetech Firmware Update Instructions
To update the firmware on your Zonetech:
1.
Power on Zonetech and connect a Cat 5e cable from the Computer Ethernet port on Zonetech to an
Ethernet router/switch that has a DHCP server running.
2.

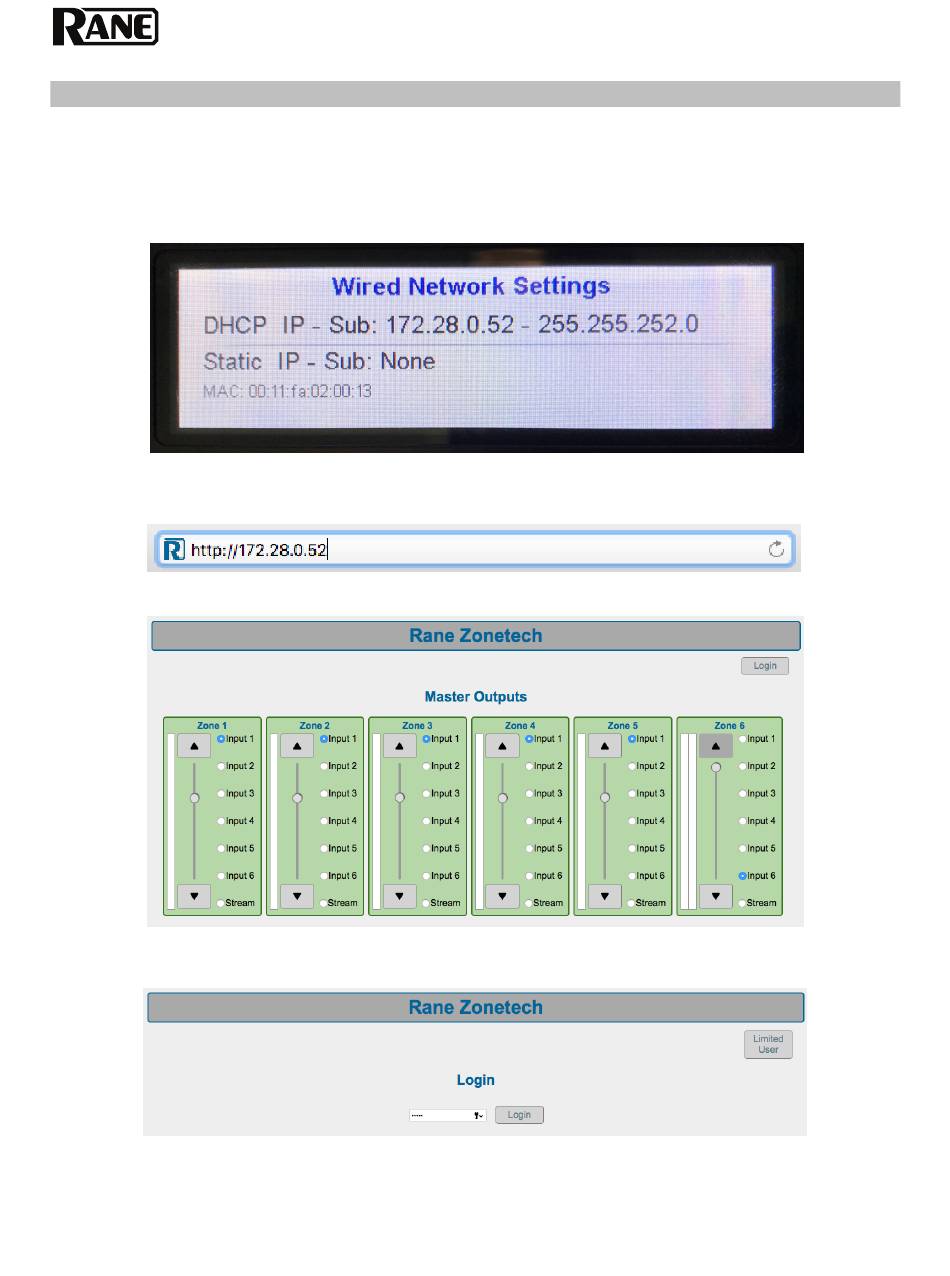

Press the Info knob on the front panel of Zonetech until the Wired Network Setting is displayed.
3.
Open a web browser (on the computer that is connected to the same router/switch from step 1) and type
in the following IP address: http://172.28.0.52.
4.
On the Master Outputs web page, press the Login button.
5.
At the Login prompt, type the default password admin and press the Login button.
1
Advertisement
Table of Contents
Related Manuals for Rane Zonetech
Summary of Contents for Rane Zonetech
- Page 1 Zonetech Firmware Update Instructions To update the firmware on your Zonetech: Power on Zonetech and connect a Cat 5e cable from the Computer Ethernet port on Zonetech to an Ethernet router/switch that has a DHCP server running. Press the Info knob on the front panel of Zonetech until the Wired Network Setting is displayed.
- Page 2 Press the Settings button to go to the settings page. Click the download icon under the Firmware Update section and select the latest Zonetech firmware update file. IMPORTANT: During the update process, do not power off Zonetech or disconnect it from the power outlet. Doing so can damage the unit.
- Page 3 The firmware update progress will be shown on the web page and on Zonetech’s display. Once the update reaches 100%, Zonetech will automatically reboot with the new firmware installed. Technical Support For additional help, visit ranecommercial.com/support. v1.1...
