Rane HC 4S Operator's Manual

SOURCE
MONO
STEREO PHONES
WEAR PARTS: This product contains no wear parts.
OPERATORS MANUAL
1 2
4 6
2 8
0 10
OL LEVEL PHONES OL

Quick Start

With the power switch in the off (out) position, plug the power
cord into an appropriate AC power source.
Begin with all LEVEL controls counterclockwise at "0."
Connect the output from any stereo source such as a mixer,
CD or MP 3 player, and plug the left and right inputs into the
respective INPUT jacks. The Inputs accept balanced or unbal-
anced sources. Just plug them in. This source is now routed to
each of the four Outputs.
See the Sound System Interconnection RaneNote for informa-
tion on proper cable wiring between devices that have different
connector types and grounding schemes.
For a single mono source feeding all headphones, connect
it to either one of the INPUT jacks and push the MONO /
STEREO SOURCE switch in. Set the LEVEL controls for
individual headphone levels.
3
4 6 4 6
2 8 2 8
0 10 0 10
LEVEL PHONES OL LEVEL
HEADPHONE AMPLIFIER
4
4 6
2 8
0 10
PHONES OL LEVEL

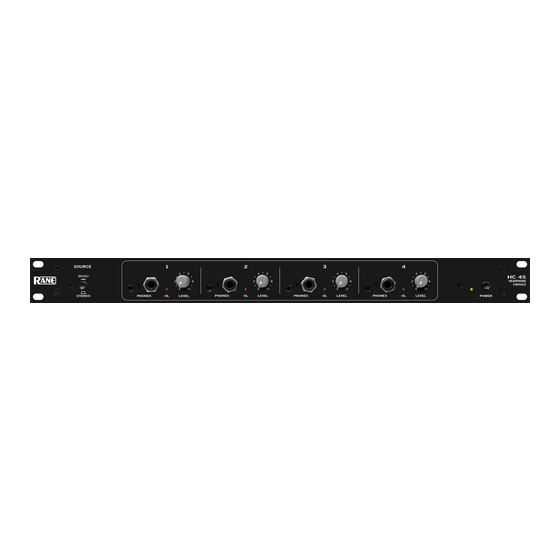

HC 4S
HC 4S
HEADPHONE
CONSOLE
POWER
