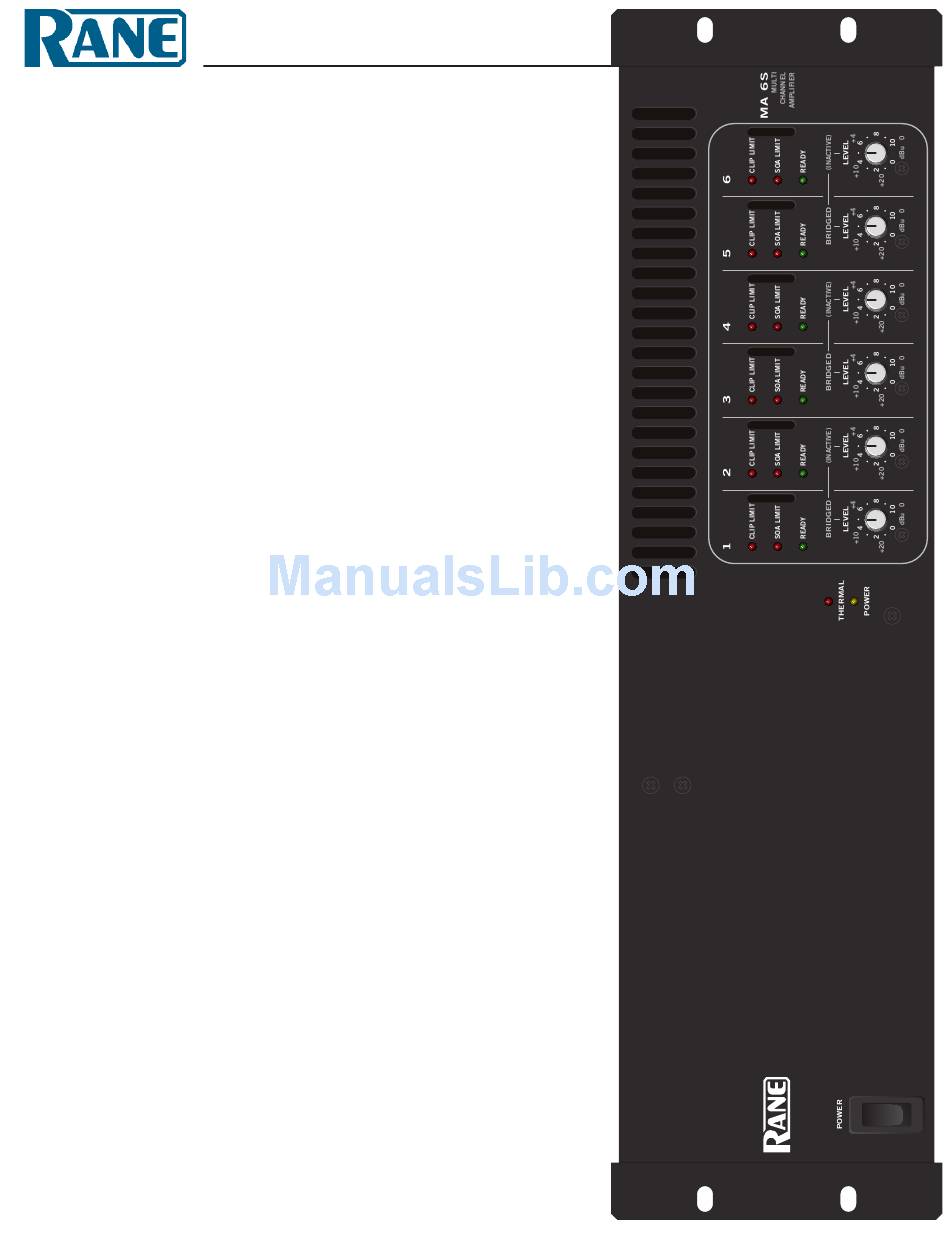

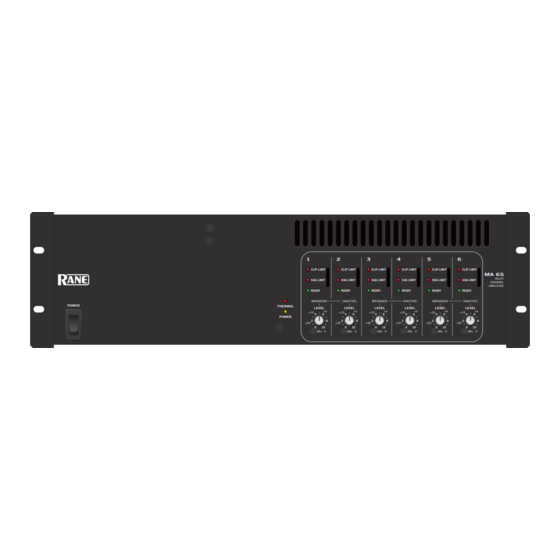

- Page 1 MA 6s MULTICHANNEL AMPLIFIER...
-
Page 2: Important Safety Instructions
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by Rane Corporation could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003. -
Page 3: Quick Start
Connect the sources positive or “hot” front panel LEVEL controls are all the way counterclockwise. to the MA 6S’s +, the negative or ground to the MA 6S’s –, and Now flip the POWER switch and after hearing the relays click connect the shield to the MA 6S’s SHIELD (center of Euroblock... - Page 4 Input sensitivity markings, not attenuation indications. NOTE: To install the MA 6S security covers, which have been supplied with the amplifier in the form of six small black plastic caps, set the six LEVEL controls to the desired position and then pull the knobs off. Insert the plastic covers in the now vacant holes. You may then sleep soundly knowing that your amplifier installation cannot be mindlessly violated.
-
Page 5: Rear Panel Description
AC line cord: Plug this into a grounded l20 VAC AC outlet (or 230 VAC if the MA 6S is internally wired for 230 V operation). Line FUSE: For 120 volt operation, use only a 15 amp 250 volt Fast-blow (or Normal blow—not Slow blow) fuse, 1.25" long, such as Buss ABC-15 or equivalent. - Page 6 MA 6S CONNECTIONS Direct, Biamp, and Bridged Wiring 4 OHM MINIMUM 4 OHM MINIMUM 4 OHM MINIMUM 4 OHM MINIMUM 8 OHM MINIMUM DIRECT BIAMPED BRIDGED MA 6S WARNING CAUTION CAUTION TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK DO MADE IN U.S.A.
- Page 7 3 and 4 are bridged to the second woofer. CAUTION: 8 ohms is the lowest impedance that can be driven by the MA 6S in BRIDGED mode. If there are two woofers in each bass cabinet, be sure they are wired in series if they have an individual impedance of less than 16 ohms each.
- Page 8 This operation requires dissasembly and soldering as out- lined in the MA 6S SERVICE INFORMATION section, and should only be performed by qualified service personnel. ©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 TEL 425-355-6000 FAX 425-347-7757 WEB www.rane.com 107213 Manual-6...
