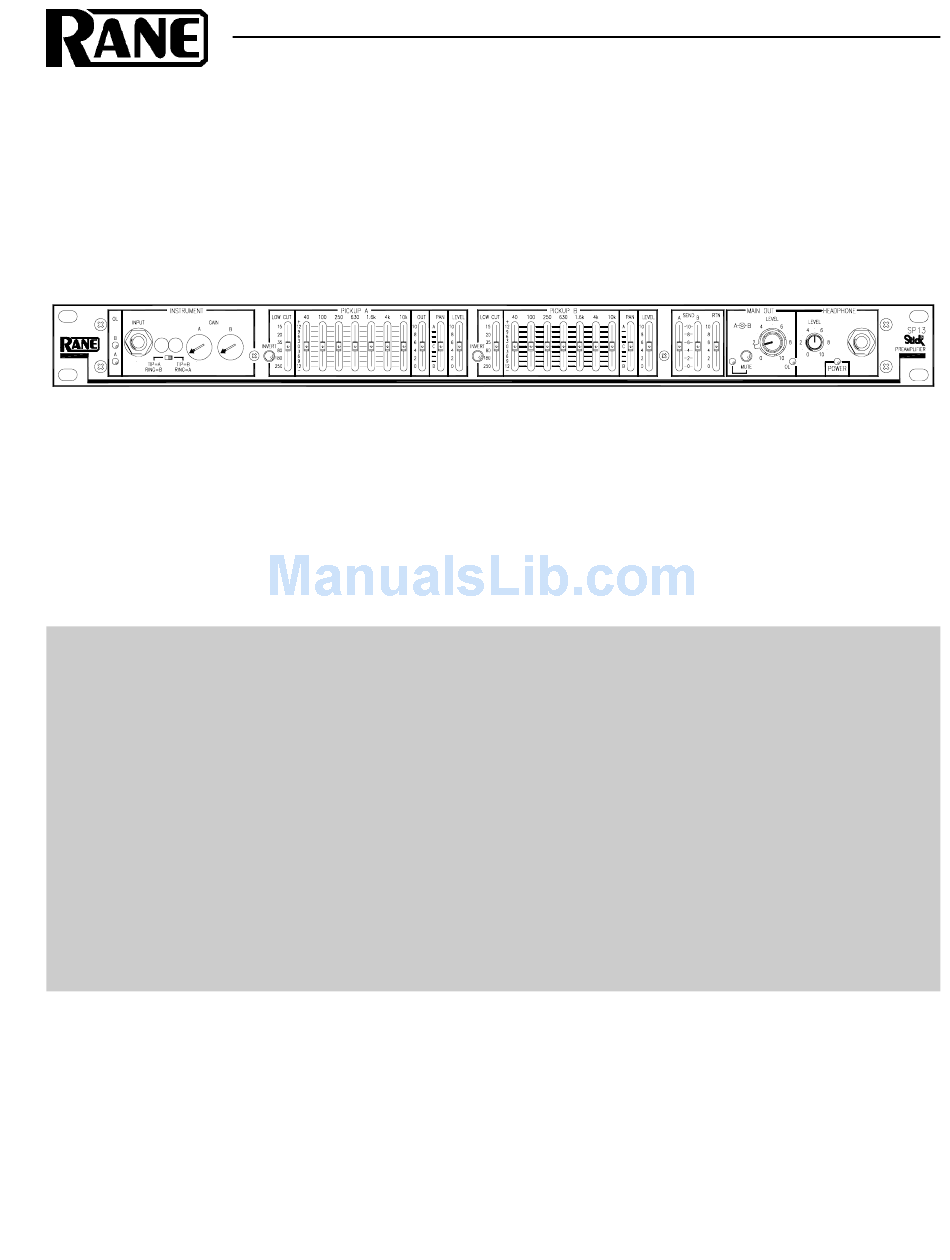

QUICK START

The SP 13 accommodates the signals from two pickups from a Stick® instrument, where the pickups are wired to the
tip and ring of a standard stereo ¼" TRS (Tip, Ring, Sleeve) plug. You do not need internal preamps when using the SP 13.
1. Slide the Input Wiring switch to the correct position agreeing with your pickup wiring situation.
2. Turn the MAIN OUT LEVEL controls down.
3. Connect the SP 13 to your amplifier using the ¼" MAIN OUTPUTS or use the HEADPHONE jack.
4. Initially, turn the A and B INSTRUMENT GAIN TRIM controls half way up.
6. Move each LOW CUT slider to the top (15 Hz); center all EQ sliders; center the PAN sliders; leave the INVERT
pushbuttons out; and position the LEVEL sliders to "4"
7. Plug in the instrument to the INPUT jack on the front of the SP 13 with a stereo ¼" TRS cable.
8. Power up the SP 13, then turn on your amplifier.
9. Play your instrument and slowly turn up the MAIN OUT LEVEL controls. You should hear sound from your speakers.
If not, recheck all settings and wiring, and read the next few pages.
Never connnect anything except an approved Rane power supply to the red thing that looks like a telephone jack on the
rear of the unit. This is an AC input and requires special attention if you do not have a power supply exactly like the one
originally packed with your unit. See the full explanation of the power supply requirements elsewhere in this manual.
WEAR PARTS: This product contains no wear parts.
OPERATORS MANUAL
SP 13
STICK PREAMP
Manual-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP 13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rane SP 13

Summary of Contents for Rane SP 13

  • Page 1: Quick Start

    The SP 13 accommodates the signals from two pickups from a Stick® instrument, where the pickups are wired to the tip and ring of a standard stereo ¼" TRS (Tip, Ring, Sleeve) plug. You do not need internal preamps when using the SP 13.

  • Page 2: Front Panel Description

    FRONT PANEL DESCRIPTION Stick® INSTRUMENT INPUT: is a stereo ¼" TRS (Tip-Ring-Sleeve) INPUT jack for use with a Stick instrument with two pickups; Use a balanced or stereo ¼" shielded cable to connect your instrument to this Input. However, this also accepts a mono input.

  • Page 3: Rear Panel Description

    MAIN OUTPUTS MONO button: Engaging this pushbutton combines (or Monoes) the Main A & B Output. EXPAND IN A & B jacks: Two unbalanced ¼" TS jacks used to expand the SP 13. These Inputs sum (pre-Main Level control) with the Main A & B signals. Mono expansion is done using only the EXPAND IN A jack. As long as nothing is plugged into the B jack, the signal from EXPAND A automatically drives EXPAND B.

  • Page 4: Operating Instructions

    (1-conductor) cables with mono jacks on the other. These are common enough, you shouldn’t have to make them. There are no controls to worry about with this loop. ©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 TEL (425)355-6000 FAX (425)347-7757 WEB http://www.rane.com Manual-4 104764...
