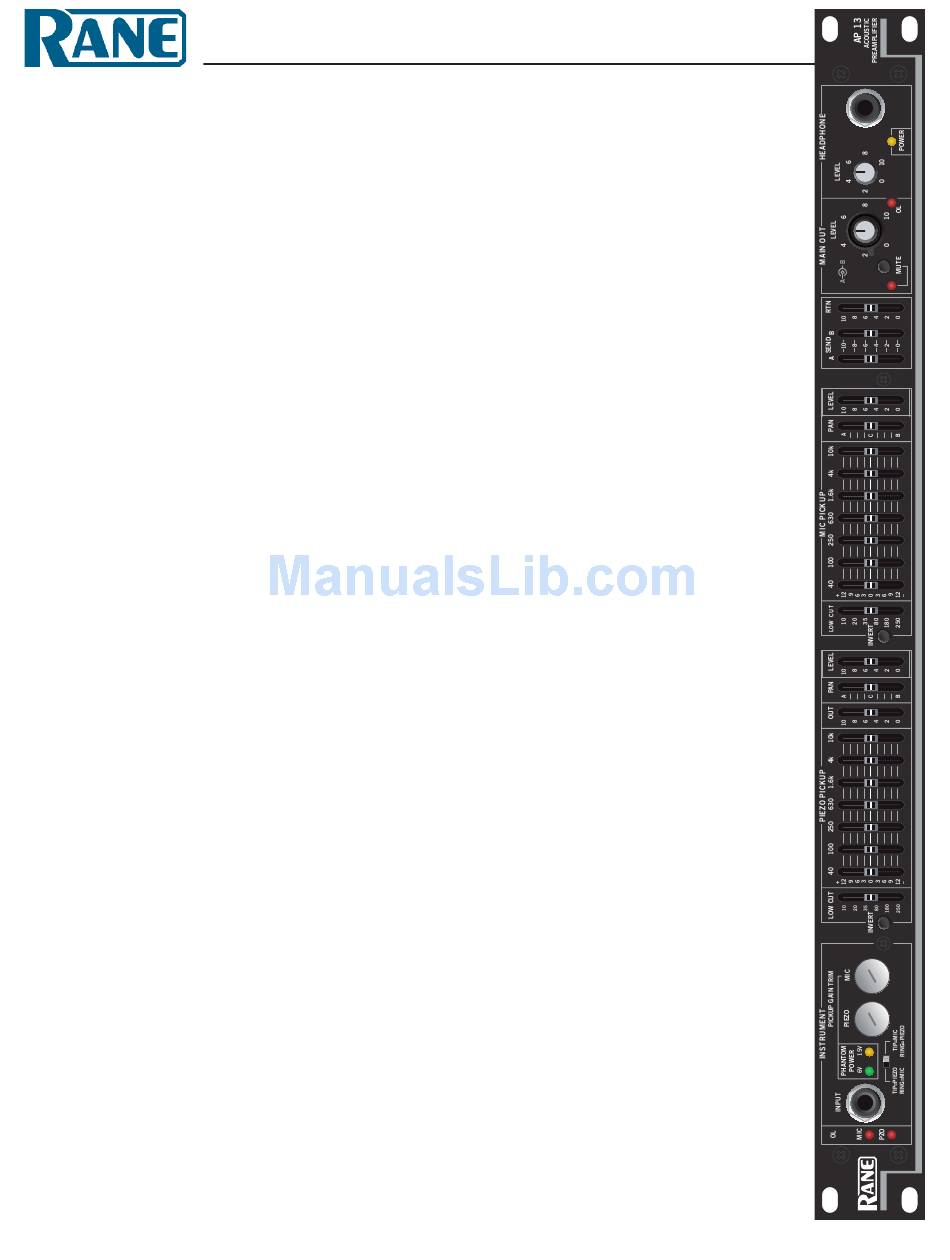

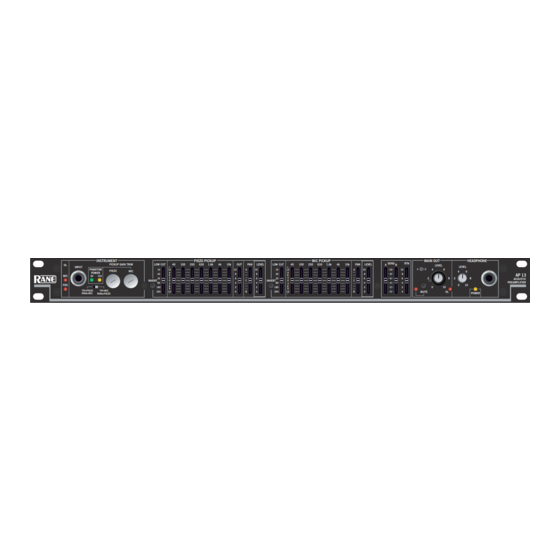

  • Page 1 AP 13 ACOUSTIC PREAMPLIFIER...

  • Page 2: Important Safety Instructions

    Protect the power cord and plug from damage caused by being walked on or pinched. Protect the line cord, where it exits the unit, from excessive strain. Only use attachments and acces- sories specified by Rane. Unplug this equipment during lightning storms or when unused for long periods of time.

  • Page 3: Acoustic Processor

    1. Slide the Input Wiring switch to the correct position agreeing with your pickup wiring situation. 2. If your mic pickup requires Phantom Power, select it using the switch on the AP 13 rear. Make sure the appropriate LED lights by the INPUT jack.

  • Page 4: Front Panel Description

    AKG Micro-Mic Users The Phantom Power requirement for these mics demands a minor modification to the inside of the AP 13. Remove the top and bottom covers and replace R220 with a 15k ohm resistor (see layout on the back page). Once modified with the new resistor, the input will not be compatible with other mics.

  • Page 5: Rear Panel Description

    MAIN OUTPUTS MONO button: Engaging this pushbutton combines or Monoes the Main A & B Output. EXPAND IN A & B jacks: Two unbalanced ¼" TS jacks used to expand the AP 13. These inputs sum (pre-Main Level control) with the Main A & B signals. Mono expansion is done using only the EXPAND IN A jack. As long as nothing is plugged into the B jack, the signal from EXPAND A automatically drives EXPAND B.

  • Page 6: Operating Instructions

    50% effects signal, because the dry signal is internally mixed with the return. See Figure 1 Figure 1. Effects Loop Options. to the right. ©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 TEL (425)355-6000 FAX (425)347-7757 WEB http://www.rane.com Manual-4 103211...
