QuickSpecs
Overview

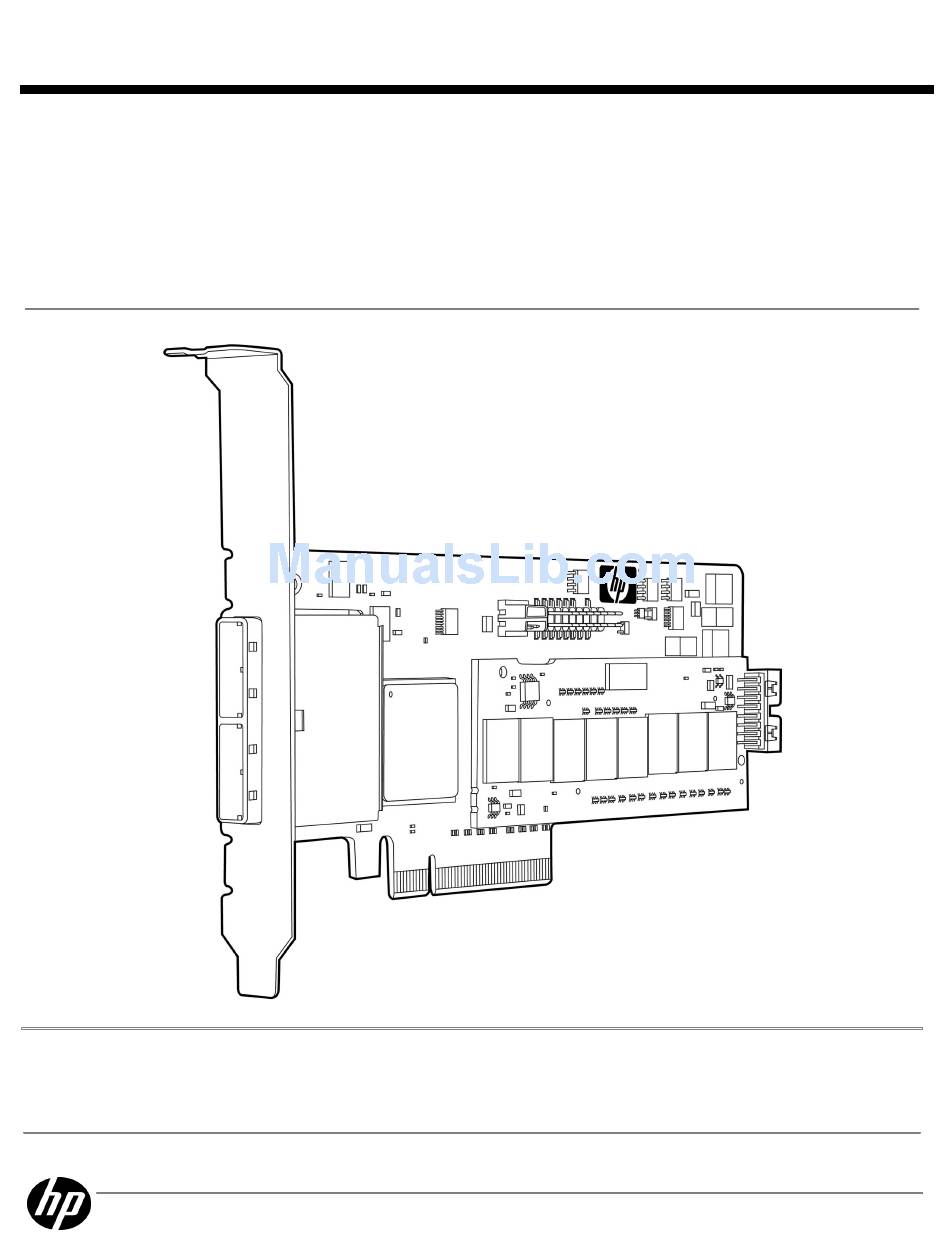

The HP Smart Array E500 is HP's external connect only, entry level PCI Express (PCIe) Serial Attached SCSI (SAS) RAID controller.
The full size card has 8 ports (2 x4 mini SAS external connectors) and utilizes DDR2-533 memory. The SA-E500 offers RAID 0, 1
and 0+1 and can be upgraded with the battery-backed write cache (BBWC) module for RAID 5. This low-profile card is ideal for
customers needing a low-cost external connect for HP ProLiant servers to tape, JBODs, and intelligent Modular Storage Arrays
(MSA).
Models
Models
Models
Models
HP Smart Array E500
HP Smart Array E500
HP Smart Array E500
HP Smart Array E500
Controller
Controller
Controller
Controller
HP Smart Array E500/256MB Controller
HP Smart Array E500/256MB Controller for Integrity Servers
DA - 12700
Worldwide — Version 20 — October 5, 2010
HP Smart Array E500 Controller
HP Smart Array E500 Controller
HP Smart Array E500 Controller
HP Smart Array E500 Controller
435129-B21
AH226A
Page 1
