About this document
This document describes procedures for installing a controller into an
HP StorageWorks 2312/2324 Modular Smart Array.
Before you begin
CAUTION:
When upgrading an existing operational system with a second
optional controller, removing the air management blank impacts
the airflow and cooling ability of the device. To avoid possible
overheating, insert the controller as quickly as possible. If the
internal temperature exceeds acceptable limits, the enclosure may
overheat and automatically shut down or restart.
CAUTION:
Parts can be damaged by electrostatic discharge. Use proper
anti-static protection.
• Keep the replacement component in the ESD bag until needed.
• Wear an ESD wrist strap grounded to an unpainted surface
of the chassis.
• If an ESD wrist strap is unavailable, touch an unpainted surface
of the chassis before handling the component.
• Never touch connector pins.
Installing a controller (single or dual) for
the first time

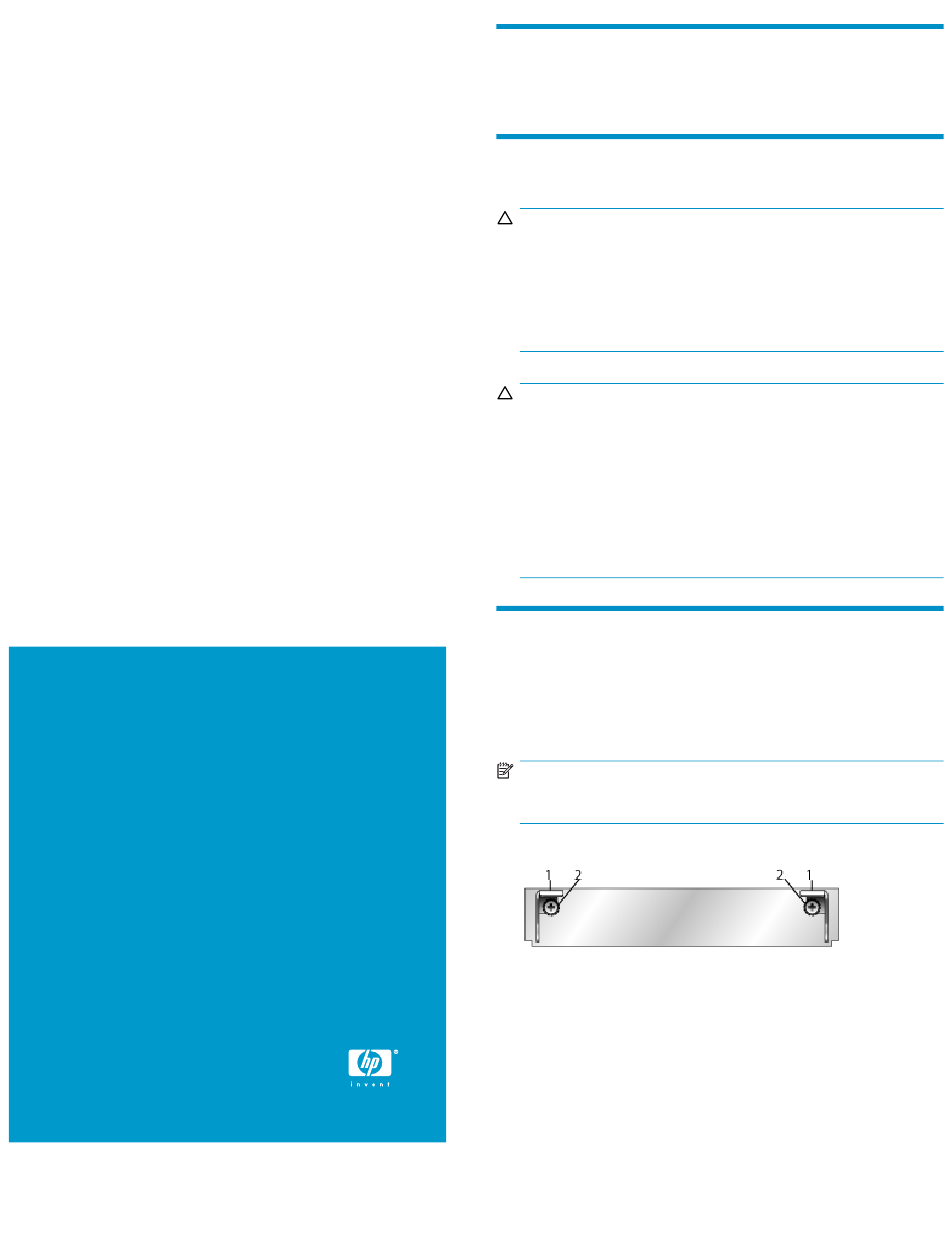

Remove the air management blank(s)
NOTE:
For clarity, only relevant details are shown in these illustrations.
1. Turn the thumbscrews until the screws disengage from the blank.
1 — Latch
2.
Press both latches downward.
Page 1
2 — Thumbscrew
