THE MOST ADVANCED DOME CAMERA SYSTEM AVAILABLE!

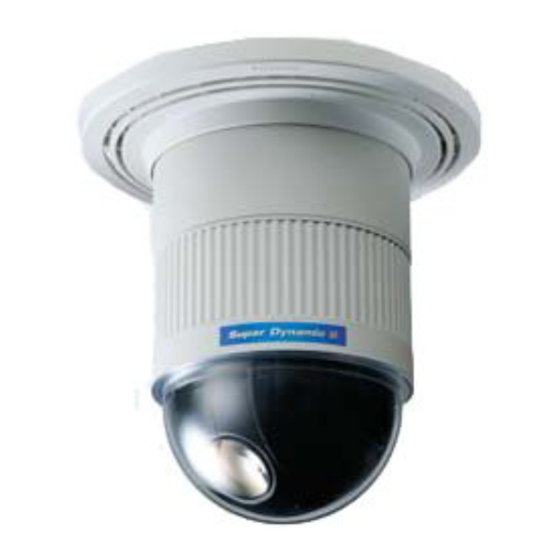

Panasonic's new WV-CS854B Unitized Color Dome Camera is the
most advanced color dome camera system available. It features our
exclusive Super Dynamic II technology and Day/Night operation,
plus a long list of advanced features designed to provide optimum
performance under virtually any lighting condition. The all-in-one
unit incorporates a 1/4-type color CCD camera, 22x zoom lens, and
rotating chassis packed in a sleek 110mm (4.3") diameter housing
ideal for almost any location.
WV-CS854B's Super Dynamic II capabilities give the WV-
CS854B a dynamic range 64 times greater than conventional cameras
to provide excellent images in even under highly contrasted lighting
conditions. In addition, the WV-CS854B delivers color images in
light as low as 1lux (0.1fc), and black and white images in as little as
0.06lux (0.006fc) of light. It's the ideal camera for surveillance
around the clock in areas affected by changing light conditions. With
its full 360˚ horizontal rotation, 190˚ vertical pan, and 300˚/second
speed, surveillance of any subject is constant and continuous.
Privacy Zone Masking and Patrol Learn features also make the WV-
CS854B perfect for even the most demanding surveillance
applications. In addition, the unit incorporates digital motion
detection for advanced alarm applications and an "image hold"
function to minimizes image distortion during fast motion transitions.
The Panasonic WV-CS854B - it's the most advanced dome
camera system available!
with Low-Light B/W Mode
WV-CS854B
KEY FEATURES
Compact 110mm (4.3") diameter dome all-in-one color unit.
Super Dynamic II technology delivers 64x wider dynamic
range compared to conventional cameras.
510 lines of horizontal resolution (at High position).
Digital-FLIP by memory read out allows automatic 190-degree turn.
Day/Night operation to automatically or manually select color or
B/W image capture by setup menu.
Minimum illumination of,
1 lux (0.1 fc) at color imaging (Sens up off: AGC High)
0.06 lux (0.006 fc) at B/W imaging (Pix Sens up off: Sens up off: AGC High)
0.03 lux (0.003 fc) at B/W imaging (Pix Sens up on: Sens up off: AGC High)
Privacy zone masking function.
Linear 32x electronic sensitivity enhancement function.
Digital motion detector.
Patrol Learn function.
Auto panning function with 64 preset positions.
360˚ panning and speed of max. 300˚/s at preset mode.
Image hold function during panning.
22x optical zoom lens (3.79 - 83.4mm at F1.6) plus 10x
electronic digital zoom for total zoom capacity of 220x.
Auto focus lens.
Multiplex-coaxial or RS485 data communication.
Four (4) alarm inputs and two (2) outputs terminals.
16 alphanumeric character display.
Internal/Line-lock/Multiplexed Vertical Drive (VD2)
synchronization.
24V AC, 60Hz power source.
Optional smoked and mirror type dome covers are available.
Super Dynamic II
Color Dome Camera
T.M
