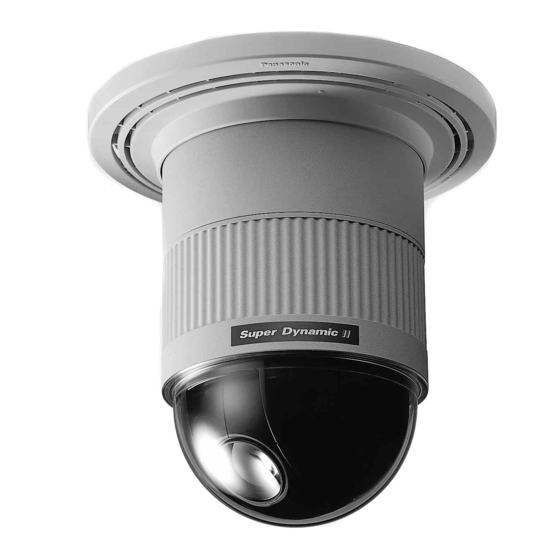

Combination camera
Hide thumbs Also See for WV-CS854A:

Advertisement

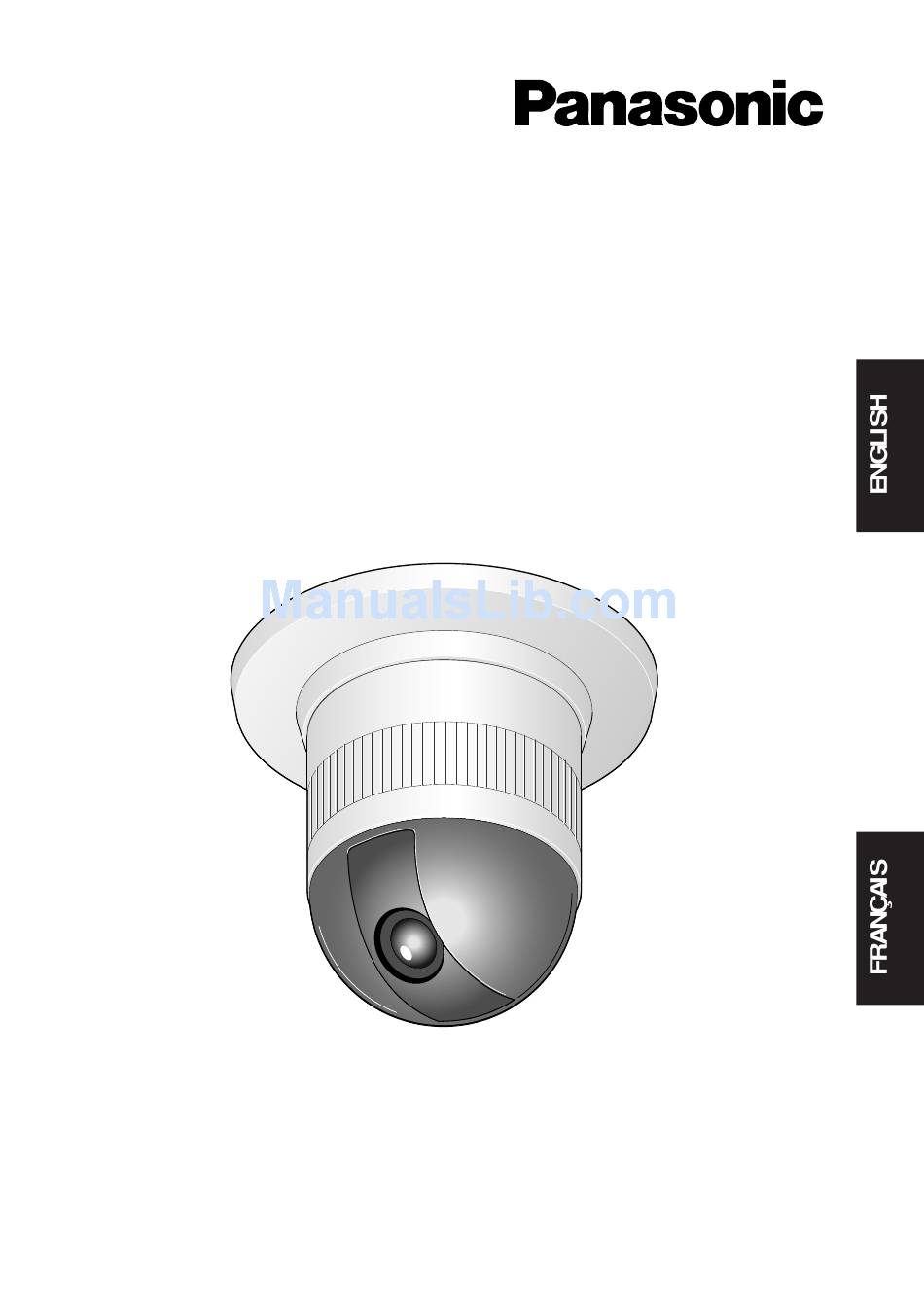

Combination Camera

Operating Instructions

WV-CS554
Model No.
WV-CS854A
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic WV-CS854A

  • Page 1: Operating Instructions

    Combination Camera Operating Instructions WV-CS554 Model No. WV-CS854A Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrow- head symbol, within an equilater- al triangle, is intended to alert the user to the presence of uninsu- lated "dangerous voltage"...
  • Page 3: Table Of Contents

    PREFACE ... 4 FEATURES ... 4 Camera Cleaning ... 5 Preset Data Uploading or Downloading ... 5 PRECAUTIONS ... 5 CONSTRUCTION ... 7 SETUP ... 8 Setup Menu ... 8 Setup Menu Description ... 11 SETTING PROCEDURES ... 16 Menu Display ... 16 Preset ...
  • Page 4: Preface

    PREFACE Panasonic presents highly advanced CCTV tech- nology that meets the demands of new and ever- changeing applications. This high-performance combination color cam- era is utilized as a video surveillance device. The camera incorporates the Super-Dynamic2 Digital Signal Processor, pan-tilt mechanism and FEATURES •...
  • Page 5: Camera Cleaning

    • Preset positions may vary. If a preset position varies, delete the preset position and set the cor- rect preset position newly. • If a preset data of WV-CS854A is uploaded to lower level models (e.g. WV-CS854, WV-CS554, etc.), an error may occur and uploading may not be completed successfully.
  • Page 6 4. Do not use strong or abrasive detergents when cleaning the camera body. Use a dry cloth to clean the camera when it is dirty. When the dirt is hard to remove, use a mild detergent and wipe gently. Care should be taken not to scratch the dome when wiping Afterwards, wipe off the remained part of the detergent in it with a dry cloth.
  • Page 7: Construction

    CONSTRUCTION q Alarm Input Connector w Alarm Output Connector e Video Output Connector r Data Port t Power Cable y Camera Mounting Base u Panning Start Point i Fall Prevention Wire o Decoration Cover !0 Dome Cover...
  • Page 8: Setup

    SETUP Setup Menu Setup menus are shown in the diagram below. Various kinds of setup are available to have the camera fulfill your requirements. Menus are built in a hierarchical structure from the Setup menu at the top down to Manual Mask Area Selection at the bottom. These menus are described in the following pages for reference prior to setup.
  • Page 9 The keys (switches) to use for setup are as shown in the table below. The joystick on the connected con- troller may also be used for setup. The table also shows the functions versus the operations of the individ- ual controllers. For further details, see the manual for the controller to be used. The switches and controls are abbreviated as SW and CTRL in the table.
  • Page 10: Setup Menu Description

    Setup Menu Description PRESET (1) Position (POSITION SET) POSITION SET adjusts the camera picture by panning, tilting, zooming and focusing. See page 17 for the setting. (2) Preset Identification (PRESET ID) A preset ID (identification of up to 16 alphanumeric characters) can be displayed on the screen. See page 19 for the setting.
  • Page 11 AUTO PAN KEY This setting assigns SEQ, SORT, AUTO PAN or PATROL (PLAY) to the AUTO key on the controller. After setting this, the AUTO key performs as assigned. Note: AUTO PAN LED on the controller does not light if something other than AUTO PAN is assigned. DIGITAL FLIP ON/OFF Tilt range is limited within 0°...
  • Page 12 (7) Cleaning ON/OFF This is for refreshing the electric-mechanical contacts built in the camera. Use this function for main- tenance when the camera has been directed to a specific spot or panned over a specific range for a long time. (8) Electric Zoom ON/OFF Up to 10-fold (9) Preset Alarm ON/OFF...
  • Page 13 Generally, when a light from the background is too strong such as a spotlight, all objects except the main object in the picture are displayed darker because the lens iris is adjusted with respect to strong brightness. This model ignores strong brightness by masking the source of the strong bright- ness, thereby main object is displayed clearly.
  • Page 14: Rs485 Communication

    MANUAL S, M, L: Auto-focus is activated when the AF key on the controller is pressed. AUTO S, M, L: Auto-focus is activated automatically while operating manually (WV-CS854A): pan, tilt or zoom. Auto-focus is activated automatically after a manual operation (WV-CS554).
  • Page 15: Setting Procedures

    SETTING PROCEDURES The following setting procedures are described on the assumption that this model is used in combination with the WJ-SX550B Matrix Switcher and WV-CU550B System Controller. In case of using a controller other than the WV-CU550B, refer to the table on page 10. Menu Display Setup Menu Display WV-CU550B...
  • Page 16: Preset

    Preset Preset Menu Display 1. Displaying the preset menu directly (1) Move the cursor to PRESET 1 right or left to select the position number to be set. (2) Press the CAM (SET) key. The preset setting menu appears on the monitor screen. 2.
  • Page 17 WV-CS854A’s. WV-CS854A’s preset data will be destroyed if you upload the conventional data. When this happened, prepare a WV-CS854A having the initial factory settings. Download the factory settings into the controller and then upload to the camera whose data is destroyed.
  • Page 18 Preset ID Setting 1. Move the cursor to PRESET ID on the preset setting menu and select ON or OFF by moving the joystick to the right or left. ON: Preset ID is displayed on the screen. OFF: Preset ID is not displayed. 2.
  • Page 19 To Set a Display Position for a PRESET ID 1. Move the cursor to POSI and press the CAM (SET) key. The display position set menu appears. 2. Using the joystick, move the ID to the desired position on the screen, then press the MON (ESC) key.
  • Page 20: Dwell Time Setting

    Dwell Time Setting • Move the cursor to DWELL TIME and set a dwell time by moving the joystick to the right or left. Dwell time changes as follows: The letter S stands for second(s), and MIN stands for minute(s). Scene File Setting 1.
  • Page 21: Deleting Preset Positions

    Deleting Preset Positions 1. Move the cursor to PRESET 1 and select the position number to be deleted by moving the joystick. 2. Press the CAM (SET) key to display the preset setting menu. 3. Move the cursor to DEL and press the CAM (SET) key. This deletes the preset position and the PRESET NUMBER SET menu appears.
  • Page 22 Auto Mode Selection The menu screens follow the example for WV-CS854A. 1. To set auto mode Move the cursor to AUTO MODE and select a mode by moving the joystick to the right or left. Modes change as follows: SORT SORT 2.
  • Page 23: Auto Pan Key Setting

    Notes: • When the panning, tilting, zooming or focusing in SEQ, SORT or PATROL (only for WV-CS854A) mode operation is con- trolled manually, the Auto mode function should be canceled. To activate Auto mode, select the desired AUTO MODE again or set a time for SELF RETURN in the SET UP menu to resume the AUTO MODE after the time set.
  • Page 24: Digital Flip On/Off

    DIGITAL FLIP ON/OFF • Move the cursor to DIGITAL FLIP and select ON or OFF by mov- ing the joystick to the right or left. OFF: Tilt range is limited from 0° to 90°. ON: The digital flip function allows the tilt angle to widen up to 180°.
  • Page 25 2. Select a zone number by moving the joystick to the right or left, then press the CAM (SET) key. • A zone number followed by * (asterisk) indicates that the zone has already been registered. • When a zone number having no * is selected, the picture is zoomed out fully.
  • Page 26 • To complete new settings and repeat another setting, move the cursor to SET and press the CAM (SET) key. The ZONE NUMBER Selection menu returns. • To cancel new settings and return to SPECIAL 1 MENU, move the cursor to DEL and press the CAM (SET) key.
  • Page 27 Note: Area titles appear in reverse video until the origin is set. 3. Move the cursor to PUSH SET on the ZOOM/FOCUS line, then press the CAM (SET) key. ZOOM/FOCUS is highlighted and “U ZOOM D/L FOCUS R” appears. 4. Move the joystick to adjust the zoom or focus. 5.
  • Page 28 To Quit Editing • To return to the Area Title menu, move the cursor to RET, then press the CAM (SET) key. • To cancel one area title, move the cursor to RESET, in the AREA TITLE menu, then press the CAM (SET) key. •...
  • Page 29 PATROL LEARN with a Controller Having PATROL Key 1. Press the PATROL key and the CAM (SET) key simultaneously to start PATROL LEARN. The setup menu changes to show “LEARN- ING” and the starting point parameters are stored. 2. Operate manually. Operations data is stored. 3.
  • Page 30 Alarm IN/OUT (ALARM IN/OUT) Move the cursor to ALARM IN/OUT, then press the CAM (SET) key. ALARM I/O submenu appears. Note: While the camera is in AF mode or the lens moves between WIDE and TELE, alarm input may be ignored if several alarm inputs are received in succession.
  • Page 31 2. Press the CAM (SET) key. ON: The camera sends an alarm output signal via the coaxial cable after it turns to a preset position. OFF: The camera does not send the output signal. Notes: • The camera ignores alarm inputs during manual operation. •...
  • Page 32 • The following operations for NEW PASSWORD will not affect to ON/OFF changing of the PRIVA- CY ZONE on the SPECIAL 1 menu. The up-arrow mark appears indicating the first digit on the first line. 4-1 Enter a new three-digit password in the same way as in steps 3-1 to 3-2. 4-2 The cursor moves to OK after all the three digits is entered.
  • Page 33 Notes: • A scene magnified by EL-ZOOM may be inferior to a non- magnified one in picture quality. • The electronic zoom does not function in preset position set- ting mode. • To set preset position directly from the WV-CU360 controller, it is momentary required setting the electronic zoom function to OFF.
  • Page 34: Camera Setting

    Camera Setting 1. To Display the Camera Setting Menu • Move the cursor to CAMERA The camera setting menu is displayed. 2. Camera Identification Setting (CAMERA ID) 1. Move the cursor to CAMERA ID, and select ON (to display the camera identification) or OFF by using the joystick.
  • Page 35 • The positioning of the CAMERA ID stops at the edges of the screen. • The CAMERA ID moves faster when the joystick is kept to the right or left for one second or more. • To return to SET UP for setting other items, move the cursor to RET, and press the CAM (SET) key.
  • Page 36 (2) ALC Mode with SUPER-D2 OFF 1. Move the cursor to the SUPER-D2 parameter and select OFF. (When you select MANUAL, SUPER-D2 is not available.) The item MASK SET appears on the menu. 2. Move the cursor to MASK SET and press the CAM (SET) key. The 48 mask areas appear on the monitor screen.
  • Page 37 4. Shutter Speed Setting (SHUTTER) Note: When ON is selected for SUPER-D2 on the ALC CONT menu, this item is not available. To select electronic shutter speed, select OFF for SUPER-D2 in the menu. 1. Display SET UP on the monitor screen. If necessary, refer to Setup Menu Display on page 16 for details on displaying the SET UP menu on the monitor screen.
  • Page 38 SET UP menu on the monitor screen. 2. Move the cursor to SYNC and select line-lock (LL) or internal (INT) by using the joystick. The menu screen follows the example for WV-CS854A. Important Notices: 1. The priority of SYNC modes is as follows: 1.
  • Page 39 8. White Balance Setting (WHITE BAL) (1) Auto-Tracing White Balance Mode (ATW) The menu screens follow the example for WV-CS854A. 1. Display SET UP on the monitor screen. (Refer to Setup Menu Display on page 16 for details on displaying the SET UP menu on the monitor screen.)
  • Page 40 2. Move the cursor to WHITE BAL and select ATW by using the joy- stick. The white balance of the camera is automatically set. 3. For fine adjustment of the ATW, press the CAM (SET) key to dis- play the ATW fine adjustment menu on the monitor screen. 4.
  • Page 41 9. Motion Detector Setting (MOTION DET) 1. Display SET UP on the monitor screen. (Refer to Setup Menu Display on page 16 for details on display- ing the SET UP menu on the monitor screen.) 2. Move the cursor to MOTION DET and select ON or OFF by using the joystick.
  • Page 42 Because the alarm signal is multiplexed on the video signal it may be mistakenly interpreted by other video equipment as a time code signal. Therefore, when this camera is not used in a Panasonic Intelligent CCTV System, select OFF to prevent the above from occurring.
  • Page 43 11. Special 2 Menu (SPECIAL2) Special Menu (SPECIAL) This menu lets you adjust and set up the picture quality to meet your requirements. • Display SET UP on the monitor screen. (Refer to Setup Menu Display on page 16 for details on displaying the SET UP on the monitor screen.) •...
  • Page 44 (4) Camera Phase (Hue) Setting (HUE) 1. Move the cursor to HUE. The “I” cursor appears in inversed video. 2. While observing the vector scope or color video monitor, adjust the chroma phase (hue) by using the joystick. The cursor moves to the right or left.
  • Page 45: Rs485 Setup

    Confirm the system protocol and parameters prior to setting the communication parameters for the cam- era. The initial communication parameters for WV-CS854A are shown on the RS485 setup menu below. Other than the on-screen-setup parameters, the 4-bit DIP switch may be used to select 2-line (Half Duplex) or 4-line (Full Duplex) communication.
  • Page 46 BAUD RATE Specifies the transmission speed (2 400, 4 800, 9 600, 19 200 bit per second) for the RS485 communica- tion. The factory setting is 19 200. DATA BIT Specifies the number of data bits (7 or 8 bits) for the RS485 communication. The factory setting is 8. PARITY CHECK Specifies the parity check mode (NONE, ODD, EVEN).
  • Page 47: Installation

    INSTALLATION Precautions • The following steps of installation and connection should be taken by qualified service personnel or system installers and should conform to all local codes. • Make sure to switch the camera off before installation and connection. • Do not install the camera near the air outlet of an air conditioner. 1.
  • Page 48 Unit Number Switch 1, an 8-bit DIP switch, specifies unit number or returns to the factory default settings for Panasonic’s protocol. When the unit number 1-96* is selected, it should be set on the RS485 SETUP menu (see page 46).
  • Page 49 Switch position Unit Switch position number Unit Switch position number Unit number...
  • Page 50 Notes: • Defaults are marked with • BP stands for Bit Position. • Daisy chain connection is not available for Full Duplex. (Only for Panasonic’s system controllers) 3. Assemble the Camera Reverse the disassembly procedure. Take care not to cut any cables.
  • Page 51 3. Hook the Fall prevention wire on the camera mounting base. Be sure to match the wire with the fall prevention wire fixing angle as shown below. Ring of the fall prevention wire Cautions: • Use the supplied dust protection sheet if the camera mounting base is liable to be exposed to a dusty atmosphere.
  • Page 52: Connections

    CONNECTIONS Precautions • The following connections should be made by qualified service personnel or system installers in accordance with NEC 725-51. • Make sure to switch the camera off before installation or connection. Note: When powered up, the unit performs a self-check (including one panning, tilting, zooming and focusing operation).
  • Page 53 • RS485 Connection Data transmission Data reception Note: Use the cable that is described below for RS485 site communication. • Shielded, twisted pair cable • Low impedance • Wire gauge size is thicker than AWG #22 (0.33 mm • ALARM IN Connections An 8-pin and a 4-pin harness are supplied with the camera as standard accessories.
  • Page 54: System Connections

    SYSTEM CONNECTIONS Personal computer RS-232C port Alarm inputs Printer System status monitor RESET Note: When any peripheral is turned off and turned on again, the camera is also turned off and turned back on. Combination camera ALARM BUSY ALARM BUSY ALARM BUSY BACK...
  • Page 55: Prevention Of Blooming And Smear

    Iris range Angular field of view Zoom speed Focus speed WV-CS854A 24 V AC, 60 Hz 14 W 755 (H) x 485 (V) pixels, interline transfer CCD 3.59 (H) x 2.70 (V) mm (equivalent to scanning area of 1/4” pick-up tube) 2 : 1 interlace horizontal: 15.734 kHz, vertical: 59.94 Hz...
  • Page 56 Motion detector Alarm input/output Proportional pan/tilt Image Hold Weight and dimensions indicated are approximate. Specifications are subject to change without notice. WV-CS854A 360˚ endless possible (in auto pan mode) manual, sequence, sort, auto pan manual: approx. 0.1˚/s - 120˚/s, 8-steps/64-steps sequence mode: maximum approx.
  • Page 57: Accessories

    ACCESSORIES Decoration cover ... 1 pc. Alarm in cable ... 1 pc. Alarm out cable ... 1 pc. Connector for 24 V AC ... 1 pc OPTIONAL ACCESSORIES Dome cover (approx. 60 % transparency, smoked type) ... WV-CS2S Dome cover (approx. 50 % transparency, smoked type) ... WV-CS2SH Dome cover (approx.
  • Page 58: Appendix

    APPENDIX Shortcuts Shortcut operations are available to controllers having the CAM FUNCTION key. Pressing numeric key(s) for one digit up to three digits then CAM FUNCTION key implements the respective functions as follows. The CAM FUNCTION key is abbreviated to [CAM FUNC] here. Function Selecting a PRESET position From #1 to #64 AUTO PAN...
  • Page 59 Panasonic Security and Digital Imaging Company A Division of Matsushita Electric Corporation of America Executive Office: One Panasonic Way 3E-7, Secaucus, New Jersey 07094 Regional Offices: Northeast: One Panasonic Way, Secaucus, NJ 07094 (201) 348-7303 Southern: 1225 Northbrook Parkway, Suite 1-160, Suwanee,...
