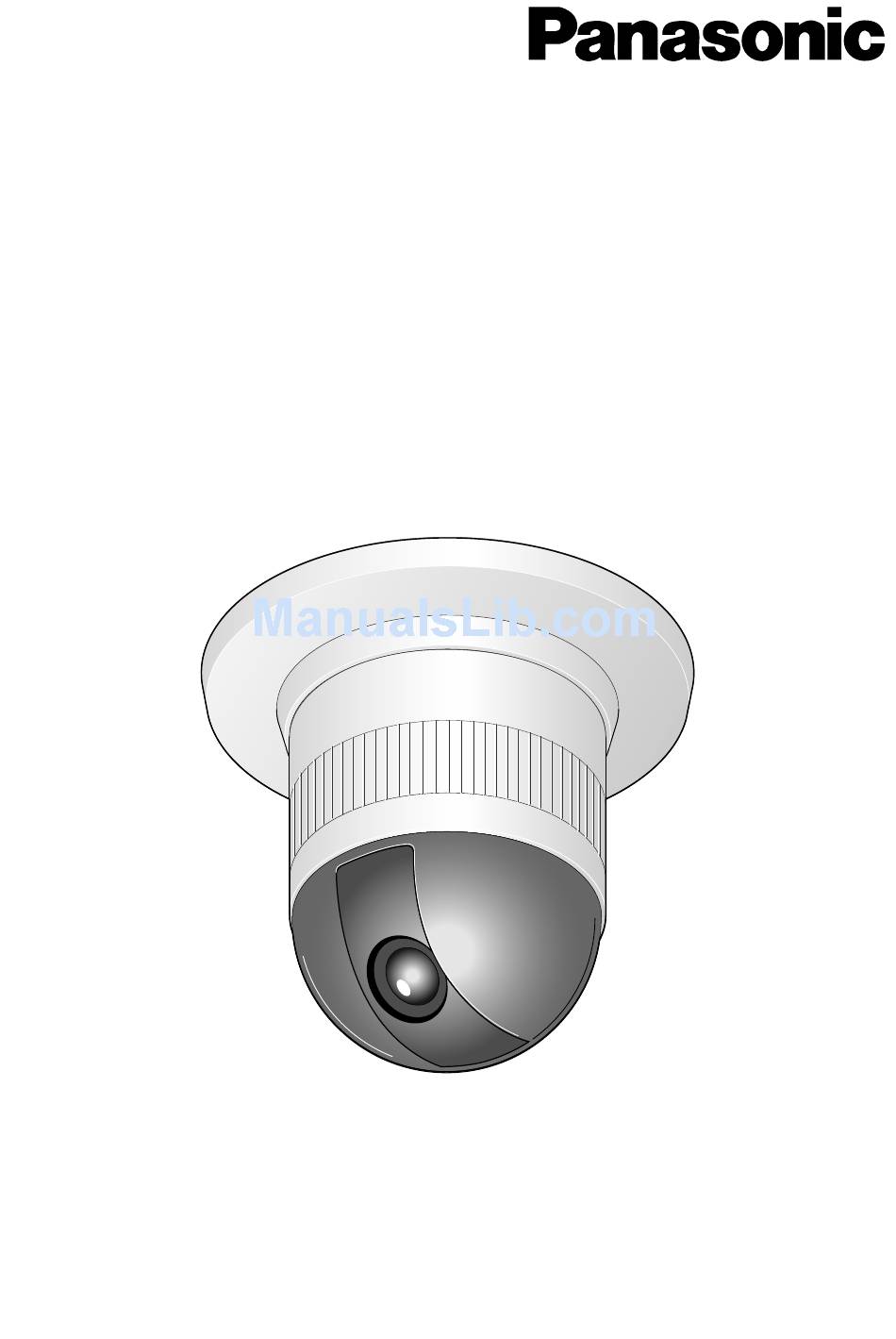

Color CCTV Camera

Operating Instructions

WV-CS564
Model No.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WV-CS564 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic WV-CS564

Summary of Contents for Panasonic WV-CS564

  • Page 1: Operating Instructions

    Color CCTV Camera Operating Instructions WV-CS564 Model No. Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.

  • Page 2: English Version

    ENGLISH VERSION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead sym- bol, within an equilateral triangle, is intended to alert the user to the pres- ence of uninsulated "dangerous volt-...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not use near any heat sources such as radiators, heat registers, stoves or other apparatus (includ- ing amplifiers) that produce heat.

  • Page 4: Table Of Contents

    Self Return Setting (SELF RETURN) ..22 Auto Mode Selection (AUTO MODE) . . . 23 PREFACE Panasonic presents highly advanced CCTV tech- nology that meets the demands of new and ever- changing applications. This high-performance color CCTV camera is uti- lized as a video surveillance device.

  • Page 5: Camera Cleaning

    • Preset positions may vary. If a preset position varies, delete the preset position and set the cor- rect preset position newly. • If a preset data of WV-CS564 is uploaded to other models (e.g. WV-CS854 series), an error may occur and uploading may not be completed successfully.
  • Page 6 4. Do not use strong or abrasive detergents when cleaning the camera body. Use a dry cloth to clean the camera when it is dirty. When the dirt is hard to remove, use a mild detergent and wipe gently. Care should be taken not to scratch the dome cover when wiping it.

  • Page 7: Construction

    CONSTRUCTION q Not Used w Not Used e Video Output Connector r Data Port t Power Cable y Camera Mounting Base u Panning Starting Point i Fall Prevention Wire o Decoration Cover !0 Dome Cover...

  • Page 8: Setup

    SETUP Setup Menu Setup menus are shown in the diagram below. Various kinds of setup are available to have the camera fulfill your requirements. Menus are built in a hierarchical structure from the Setup menu at the top to Manual Mask Area Selection at the bottom. These menus are described in the following pages for reference prior to setup.
  • Page 9 The keys (switches) to use for setup are shown in the table below. The joystick on the connected con- troller may also be used for setup. The table also shows the functions versus the operations of the individ- ual controllers. For details, see the manual for the controller to be used. The switches and controls are abbreviated as SW and CTRL respectively in the table.

  • Page 10: Setup Menu Description

    Setup Menu Description Presetting (1) Position (POSITION SET) Aligns the camera position and focal point by panning, tilting, zooming and focusing. See page 17 for the setting. (2) Preset Identification (PRESET ID) Assigns the name for preset IDs (identification of up to 16 alphanumeric characters) and can be switched on or off on the monitor screen.
  • Page 11 Auto Pan Key (AUTO PAN KEY) This setting assigns the SEQ, SORT, AUTO PAN or PATROL (PLAY) mode to the AUTO key on the con- troller. After setting this, the AUTO key performs as assigned. Note: The AUTO PAN LED on the controller does not light if the mode other than the AUTO PAN mode is assigned.

  • Page 12: Cleaning (Cleaning)

    Cleaning (CLEANING) This is used for refreshing the electric-mechanical contacts built in the camera. Use this function for maintenance when the camera has been directed to a specific spot or panned over a specific range for a long time. Image Hold (IMAGE HOLD) The camera picture remains a still image on the monitor screen or until the camera reaches the pre- set position.
  • Page 13 Note: The result of field setup of the mask area and level adjustment is fed back (effected) to the lens iris control in ALC mode. (3) Shutter Speed (SHUTTER) You can select a shutter speed of 1/60 (OFF), 1/100, 1/250, 1/500, 1/1 000, 1/2 000, 1/4 000, and 1/10 000 seconds.

  • Page 14: Rs485 Communication

    (6) White Balance (WHITE BAL) You can select one of two modes for white balance adjustment as follows: • Auto-Tracing White Balance (ATW) In this mode, the color temperature is monitored continuously and thereby white balance is set auto- matically. The color temperature range for the proper white balance is approx.2 600 - 6 000 K. Proper white balance may not be obtained under the following conditions: 1.

  • Page 15: Setting Procedures

    SETTING PROCEDURES The following setting procedures are described on the assumption that this model is used in combination with the WJ-SX550B Matrix Switcher and WV-CU550B System Controller. In case of using a controller other than the WV-CU550B, refer to the table on page 10. Menu Display Setup Menu Display WV-CU550B...

  • Page 16: Presetting

    Presetting Preset Menu Display 1. Displaying the preset menu directly (1) Move the cursor to PRESET 1 right or left to select the position number to be set. (2) Press the CAM (SET) key. The preset setting menu appears on the monitor screen. 2.
  • Page 17 WV-CS564's. WV-CS564's pre- set data will be destroyed if you upload the conventional data. If this happened, reset the WV-CS564 to the default set- tings. Download the factory settings into the controller and upload the correct preset data newly to the initialized WV- CS564.
  • Page 18 Preset Identification Setting (PRESET ID) 1. Move the cursor to PRESET ID on the preset setting menu and select ON or OFF by moving the joystick to the right or left. The factory default setting is OFF. ON: Preset ID appears on the monitor screen. OFF: Preset ID does not appear.

  • Page 19: Light Control Setting (Alc/Manual)

    To Set a Display Position for a Preset ID (1) Move the cursor to POSI and press the CAM (SET) key. The display position set menu appears. (2) Using the joystick, move the ID to the desired position on the monitor screen, and press the MON (ESC) key.
  • Page 20 Dwell Time (DWELL TIME) • Move the cursor to DWELL TIME and set a dwell time by moving the joystick to the right or left. The factory default setting is 10S. Dwell time changes as follows: S stands for second(s), and MIN stands for minute(s). Scene File Setting (SCENE FILE) 1.

  • Page 21: Deleting Preset Positions

    Deleting Preset Positions 1. Move the cursor to PRESET 1* and select the position number to be deleted by using the joystick. 2. Press the CAM (SET) key to display the preset setting menu. 3. Move the cursor to DEL and press the CAM (SET) key. This deletes the preset position and the PRESET NUMBER SET menu appears.

  • Page 22: Auto Mode Selection (Auto Mode)

    Auto Mode Selection (AUTO MODE) 1. To set auto mode Move the cursor to AUTO MODE and select a mode by moving the joystick to the right or left. The factory default setting is OFF. Modes change as follows: OFF: No automatic operation. The camera can be operated only manually.
  • Page 23 5. To set pan limit ON/OFF Move the cursor to PAN LIMIT and select ON or OFF by mov- ing the joystick to the right or left. The factory default setting is OFF. ON: Manual pan is limited from the starting point to the end- point specified by position setting.

  • Page 24: Auto Pan Key Setting (Auto Pan Key)

    Auto Pan Key Setting (AUTO PAN KEY) This is used for assigning one of the following auto functions to the AUTO key on the controller. Pressing the AUTO key activates the assigned function after this setting. • Move the cursor to AUTO PAN KEY and select an auto function by moving the joystick to the right or left.

  • Page 25: Patrol Learn And Patrol Play

    Patrol Learn and Patrol Play (PATROL) A routine of manual operations can be stored for 30 seconds at the maximum and reproduced repetitively. 1. Set the following parameters for the patrol learn starting position. These parameters are stored when the patrol learn mode starts. •...
  • Page 26 Patrol Learn with a Controller not Having the PATROL Key 1. Select the patrol learn in the setup menu, and then close it. Starting points are stored and “LEARNING” appears on the moni- tor screen. 2. Operate the patrol learn manually. 3.

  • Page 27: Cleaning (Cleaning)

    Cleaning (CLEANING) Built-in electric mechanical contacts are refreshed at regular intervals (approx. 7 days) if CLEANING is set to ON. A dry contract affects adversely picture quality and motors oper- ation. 1. Move the cursor to CLEANING and select ON or OFF by moving the joystick to the right or left.
  • Page 28 3. After editing the camera identification characters, follow the steps below to set the position of the CAMERA ID on the monitor screen. 3-1 Move the cursor to POSI, and press the CAM (SET) key to display the ID position menu. 3-2 Use the joystick to decide the position of the CAMERA ID on the monitor screen.
  • Page 29 Light Control Setting (ALC/MANUAL) 1. Display SET UP on the monitor screen. If necessary, refer to Setup Menu Display on page 16 for details on displaying the SET UP on the monitor screen. 2. Move the cursor to ALC/MANUAL and select ALC or MANUAL by using the joystick.
  • Page 30 (2) ALC Mode with BLC OFF 1. Move the cursor to the BLC and select OFF. (When you select MANUAL, BLC is not available.) The MASK SET appears on the menu. 2. Move the cursor to MASK SET and press the CAM (SET) key. The 48 mask areas appear on the monitor screen.

  • Page 31: Shutter Speed Setting (Shutter)

    Shutter Speed Setting (SHUTTER) 1. Display SET UP on the monitor screen. If necessary, refer to Setup Menu Display on page 16 for details on displaying the SET UP menu on the monitor screen. 2. Move the cursor to SHUTTER and select the electronic shutter speed by using the joystick.

  • Page 32: Synchronization (Sync)

    Synchronization (SYNC) 1. Display SET UP on the monitor screen. If necessary, refer to Setup Menu Display on page 16 for details on displaying the SET UP menu on the monitor screen. 2. Move the cursor to SYNC and select line-lock (LL) or internal (INT) by using the joystick.

  • Page 33: White Balance (White Bal)

    7. Use the joystick to match the vertical phases for both video output signals as closely as possible. (COARSE adjustment can be incremented in steps of 22.5 degrees (16 steps) with the joystick.) Note: After the 16 steps, the adjustment returns to the first step. 1 (1 - - - 16): 0 degrees 2 (1 - - - 16): 22.5 degrees 16 (1 - - - 16): 337.5 degrees...
  • Page 34 (2) Automatic White Balance Control Mode (AWC) 1. Display SET UP on the monitor screen. (Refer to Setup Menu Display on page 16 for details on displaying the SET UP menu on the monitor screen.) 2. Move the cursor to WHITE BAL and select AWC using the joystick.

  • Page 35: Auto Focus Setting (Af Mode)

    Auto Focus Setting (AF MODE) 1. Move the cursor to AF MODE, and select the following mode by moving the joystick to the right or left. The factory default setting is MANUAL S. S, M and L stand for Small, Middle and Large areas in the center of a scene that are used for sensing sharpness in auto-focusing.

  • Page 36: Electronic Zoom (El-Zoom)

    Electronic Zoom (EL-ZOOM) The electronic zoom magnifies a scene 2-fold. With a 18-fold optical zoom lens, the camera is capable of 36-fold zoom. 1. Move the cursor to EL-ZOOM and select ON or OFF by moving the joystick to the right or left, and then press the CAM (SET) key. The factory default setting is ON.
  • Page 37 Special Menu (SPECIAL) This menu lets you adjust and set up the picture quality to meet your requirements. • Display SET UP on the monitor screen. (Refer to Setup Menu Display on page 16 for details on displaying the SET UP on the monitor screen.) •...
  • Page 38 (5) To Restore the Camera Default Position (REFRESH) Move the cursor to REFRESH by using the joystick and press the F2 button of the WV-CU550B. (For the WV-RM70, WV-CU360 or WV-CU161, keep pressing the Right and Left switches simultaneously for 2 seconds or more.) (6) Camera Resetting (CAMERA RESET) Move the cursor to CAMERA RESET by using the joystick and press the F3 button of the WV-CU550B.

  • Page 39: Rs485 Setup

    How to Reset to the Factory Preset Parameters Any of the above settings plus the ALC/MANUAL level control and phase adjustments can be reset to the factory preset parameters by placing the cursor over the desired mode and then press the F2 button of the WV-CU550B.
  • Page 40 X ON/X OFF (X ON/X OFF) Specifies whether to apply flow control or not (NOT USE, USE). The factory setting is NOT USE. Wait Time (WAIT TIME) Specifies the time to wait until retrying after confirming that no data is received from the controller. (OFF: no retry, 100, 200, 400, 1 000 ms).

  • Page 41: Disassembling The Camera

    INSTALLATION Precautions • The following steps of installation and connection should be taken by qualified service personnel or system installers and should conform to all local codes. • Make sure to switch the camera off before installation and connection. • Do not install the camera near the air outlet of an air conditioner. 1.
  • Page 42 Unit Number Switch 1, an 8-bit DIP switch, specifies unit number or returns to the factory default settings for Panasonic’s protocol. When the switch position corresponding to the unit number 1-96* is selected, setting should be made on the RS485 SET UP menu (see page 40).
  • Page 43 Switch position Unit Switch position number Unit Switch position number Unit number...

  • Page 44: Assemble The Camera

    Notes: • Defaults are marked with • BP stands for Bit Position. • Daisy chain connection is not available for Full Duplex. (Only for Panasonic’s system controllers) 3. Assemble the Camera Reverse the disassembly procedure. Take care not to cut any cables.
  • Page 45 3. Hook the fall prevention wire on the camera mounting base. Be sure to match the wire with the fall prevention wire fixing angle as shown below. Ring of the fall prevention wire Cautions: • Use the supplied dust protection sheet if the camera mounting base is liable to be exposed to a dusty atmosphere.

  • Page 46: Connections

    CONNECTIONS Precautions • The following connections should be made by qualified service personnel or system installers in accordance with all local codes. • See the reverse side of the cover page for mains lead connection. Note: When powered up, the unit performs a self-check (including one panning, tilting, zooming and focusing operation).
  • Page 47 • RS485 Connection Data transmission Data reception Note: Use the cable that is described below for RS485 site communication. • Shielded, twisted pair cable • Low impedance • Wire gauge size is thicker than AWG #22 (0.33 mm Brown Orange Yellow Green T (B)

  • Page 48: System Connections

    SYSTEM CONNECTIONS Personal computer RS-232C port Alarm inputs Printer System status monitor RESET Note: When any peripheral is turned off and turned on again, the camera is also turned off and turned back on. Color CCTV camera ALARM BUSY ALARM BUSY ALARM BUSY...

  • Page 49: Prevention Of Blooming And Smear

    PREVENTION OF BLOOMING AND SMEAR When the camera is aimed at a bright light, such as a spotlight, or a surface that reflects bright light, smear or blooming may appear. Therefore, the camera should be operated carefully in the vicinity of extremely bright objects to avoid smear or blooming.

  • Page 50: Accessories

    Auto focus Auto mode Auto pan key Camera ID PATROL Cleaning Panning range Panning angle setting Panning mode Panning speed Tilting range Tilting mode Tilting speed Controls Weights and dimensions indicated are approximate. Specifications are subject to change without notice. ACCESSORIES Decoration cover ...

  • Page 51: Appendix

    APPENDIX Shortcuts Shortcut operations are available to controllers having the CAM FUNCTION key. Pressing numeric key(s) for one digit up to three digits then CAM FUNCTION key implements the respective functions as follows. The CAM FUNCTION key is abbreviated to [CAM FUNC] here. Function Selecting a PRESET position From #1 to #32 AUTO PAN...
  • Page 52 Panasonic Security and Digital Imaging Company A Division of Matsushita Electric Corporation of America Executive Office: One Panasonic Way 3E-7, Secaucus, New Jersey 07094 Regional Offices: Northeast: One Panasonic Way, Secaucus, NJ 07094 (201) 348-7303 Southern: 1225 Northbrook Parkway, Suite 1-160, Suwanee,...
