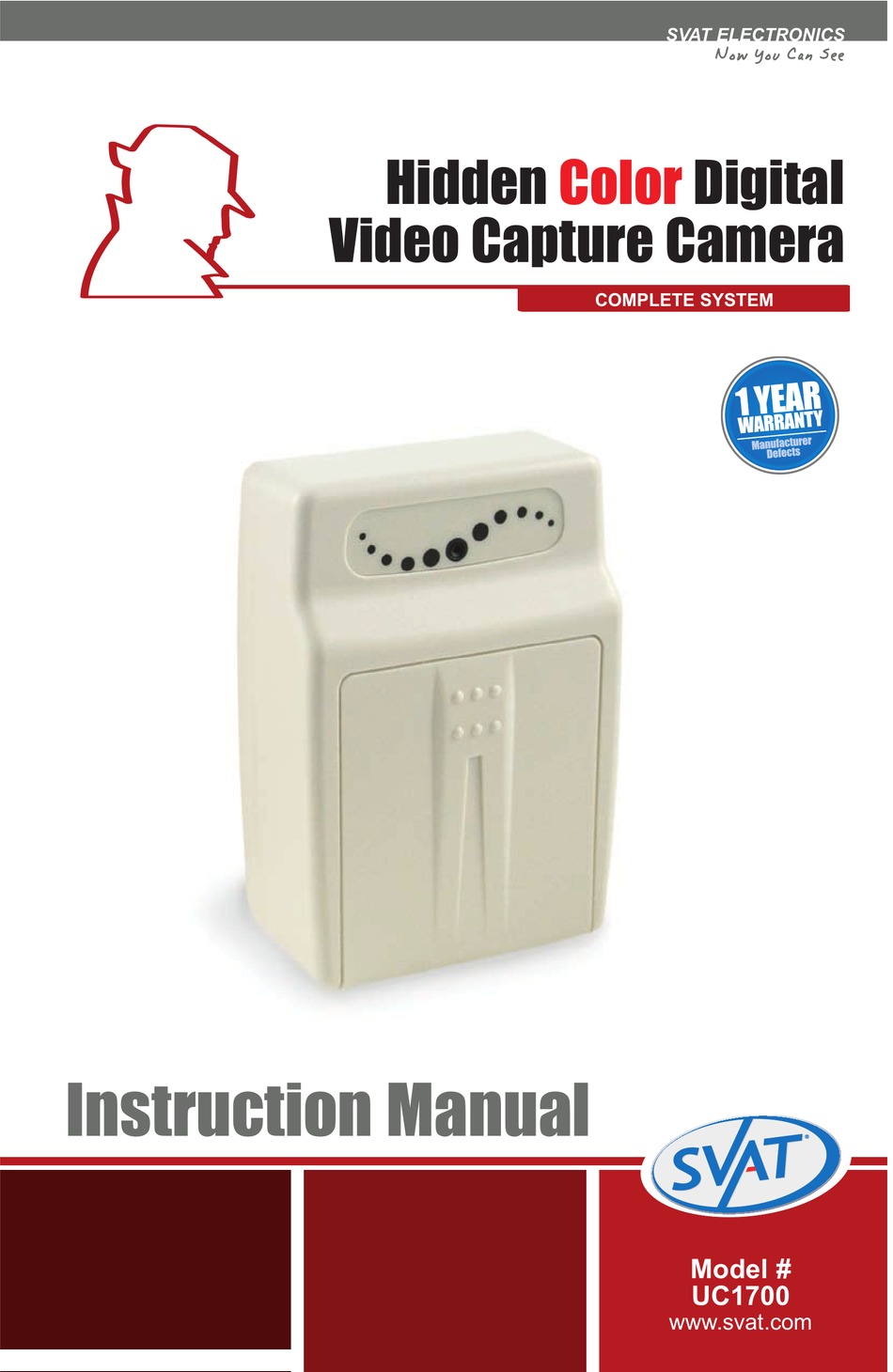

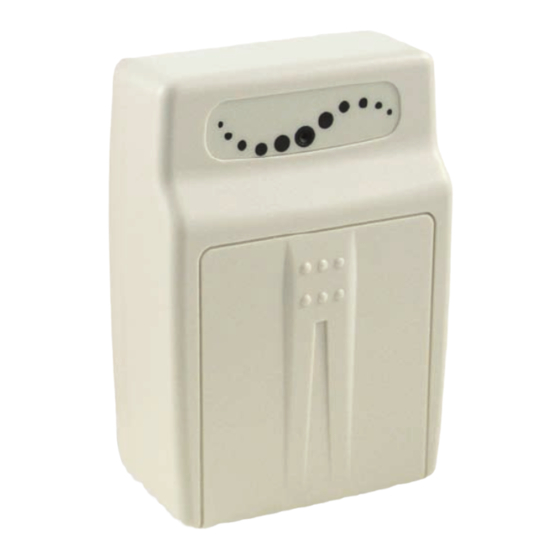

Page 1: Instruction Manual
SVAT ELECTRONICS Now You Can See Hidden Color Digital Video Capture Camera COMPLETE SYSTEM Instruction Manual Model # UC1700 www.svat.com... - Page 2 SVAT ELECTRONICS Now You Can See www.svat.com UC1700...
- Page 3 Website: www.svat.com Warranty Terms SVAT products are guaranteed for a period of one year from the date of purchase against defects in workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price at SVAT's option.
-
Page 4: Table Of Contents
- Instruction Manual - Online/Toll Free Tech Support 1 Color Camera DVR DVR Mount 1 Power Adapter RCA to RCA (male) Wire T IS COMP TIBLE T IS COMP TIBLE The UC1700 is compatible with TVs, VCRs, and computers. UC1700... -
Page 5: Important Safety Precautions
IMPORTANT! ACCESSORIES- Do not place product on an unstable cart, stand or table. The UC1700 may fall causing serious injury to a child or adult and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's instruction and should use a mounting kit approved by the manufacturer. -
Page 6: Parts Of The System
SVAT ELECTRONICS Now You Can See ARTS OF THE SYSTEM ARTS OF THE SYSTEM Wall Mount (kit included) Switchable NTSC/PAL Full Stop/Overwrite Switch LED Operation RCA Video Output Mode Indicator Function Button On/Off Power Switch Power LED Indicator Optional 12V DC... -
Page 7: Functions Of Each Part
VCR TYPE CONTROLS Stop, Record, Play, Pause, Fast Forward, Rewind and Skip buttons allow you to control the UC1700 like a VCR. Buttons most commonly used are STOP and REC. For more details, refer to the operating procedure function description table. -
Page 8: Functions
SVAT ELECTRONICS Now You Can See FUNCTIONS FUNCTIONS 7-1 FUNCTION DESCRIPTION TABLE It is important to read through and understand the function descriptions before reading how to operate this system. BUTTON The LED light on the front panel indicates the current OPERATION MODE or screen display status. -
Page 9: Operation Description
SVAT ELECTRONICS Now You Can See OPERA TION DESCRIPTION OPERA TION DESCRIPTION POWER ON Each time immediately after power is restored; they system proceeds with auto detection and warming up function, and then enters RECORD mode. RECORD MODE Under the RECORD mode the system uses two types of recording format: Continuous Recording and Motion Detection Recording. - Page 10 SVAT ELECTRONICS Now You Can See The screen display shows the recorded images by value of frames. The screen display shows the recorded images by percentage (0% - 100%) When the memory is full and the “Full Stop-Overwrite” switch on the front panel is switched to “Overwrite”, the word “LOOP”...
- Page 11 SVAT ELECTRONICS Now You Can See • There are two conditions that the system will be switched to PLAYBACK mode: • Under STOP mode, press << >> button. • Under SEARCH MENU mode, press <<+>> button • Under PLAYBACK mode, press <<...
-
Page 12: Erase All Function
ERASE FUNCTION ERASE FUNCTION Instructions for erasing all of the stored information on the UC1700 follow the instructions below. 1. Power off the unit. 2. Power on the unit while holding the RECORD button. 3. Press the MENU button to confirm deletion. -
Page 13: System Setup
SVAT ELECTRONICS Now You Can See SYSTEM SETUP SYSTEM SETUP All relevant system setups may be set under Menu Setup Mode, please refer to the descriptions below: V e r 4 3 1 2 S E T U P D A T E ( Y Y Y Y \ M M \ D D ) -
Page 14: Specifications
SVAT ELECTRONICS Now You Can See SPECIFICA TIONS SPECIFICA TIONS INDOOR DVR Functionality ..........Simplex Video Compression ........MPEG4 Resolution ............640x480, 320x240 Recording Frame Rate ........Max 30 FPS Recording Times ..........64MB model ~ High Quality: 33 minutes Low Quality: 133 minutes 128MB model ~ High Quality: 66 minutes... - Page 15 SVAT ELECTRONICS Now You Can See Processor ............Proprietary Disk Full Warning ..........Full Stop Automatic Overwrite Option ......Yes LED Indicators..........Power, Record, Play, Menu Housing Material ..........ABS Plastic Housing Color ..........Platinum Silver Battery Operable ..........Yes, 4 AA Battery Life ............6-8 hours Power Input ............DC 12V Power Adapter Input ........AC 110V...
- Page 16 SVAT ELECTRONICS Now You Can See BLC ..............N/A AGC..............N/A ELC ..............N/A Line Lock ............N/A Iris Control ............N/A White Balance ..........N/A Sun Shield ............N/A IR Cut Filter ............N/A Housing Material ..........ABS Plastic Housing Color ..........Platinum Silver Signal/Noise Ratio..........>46dB Camera Bracket ..........N/A Operating Temperature ........41°F ~ 105°F...
- Page 17 SVAT ELECTRONICS Now You Can See T SUPPORTS CRIME ST OPPERS T SUPPORTS CRIME ST OPPERS Crime Stoppers programs are operated as non-profit charities and are managed by a volunteer board of directors who raise funds and pay rewards to individuals who anonymously call with information that helps solve crime.
- Page 18 SVAT ELECTRONICS Now You Can See T SUPPORTS CRIME ST OPPERS T SUPPORTS CRIME ST OPPERS To receive more information about Crime Stoppers or to make a charitable donation please fill in the fields below, cut on the dotted line and mail in.
- Page 19 SVAT ELECTRONICS Now You Can See www.svat.com UC1700...
- Page 20 SVAT ELECTRONICS Now You Can See w w w . s v a t . c o m w w w . s v a t . c o m D i s c l a i m e r S VAT d o e s n o t e n d o r s e a n y o f S VAT p r o d u c t s f o r a n y i l l e g a l a c t i v i t i e s .
