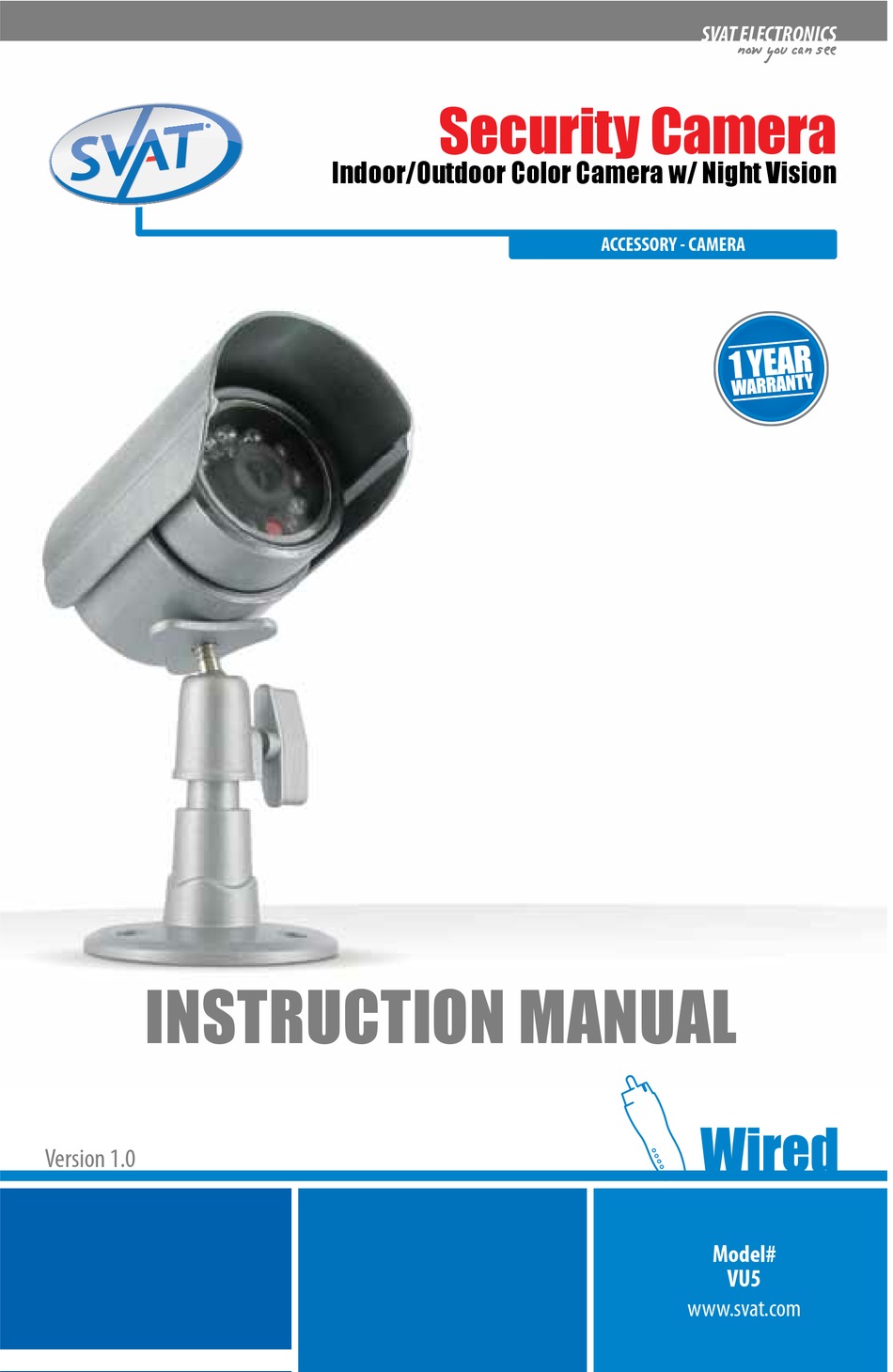

Page 1: Instruction Manual

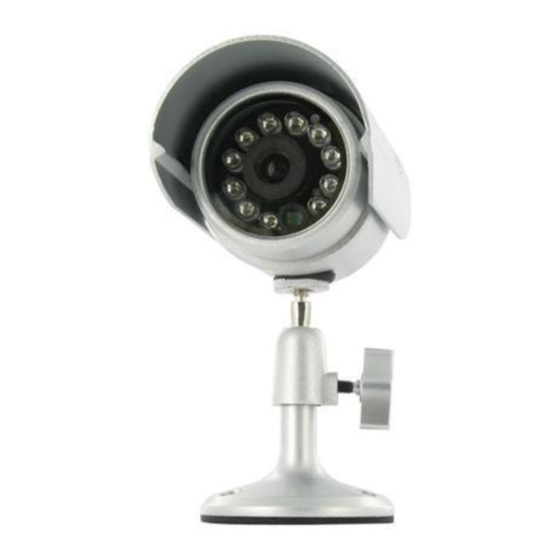

SVAT ELECTRONICS now you can see Security Camera Indoor/Outdoor Color Camera w/ Night Vision ACCESSORY - CAMERA INSTRUCTION MANUAL Version 1.0 Model# www.svat.com... -
Page 2: Need Help
For more product information visit www.svat.com Note: This is manual version 1.0 for this product, you may find updated versions by visiting our website NEED HELP? DO NOT RETURN THIS PRODUCT TO THE STORE SVAT ELECTRONICS now you can see... - Page 3 We take quality very seriously. This is why all of our products come with a one year warranty from the original purchase date against defects in workmanship and materials. If you have warranty or support issues please contact us using any of the following methods: SVAT Electronics USA 2315 Whirlpool St., Unit 333 Niagara Falls, New York...
-
Page 4: Table Of Contents
4. Camera Housing made of treated metal to prevent rust. 5. Camera Mount allows the camera to be desk or wall mounted. 6 . Connection to Video / Power Wire - Converts to RCA from 4 PIN DIN. SVAT ELECTRONICS now you can see • BNC to RCA Connector •... -
Page 5: Installation
2. Mount the camera in the desired location no more than 60 feet from the TV/Monitor/VCR/DVR unless you have purchased additional wiring. You may wall mount or desk mount these cameras. 3. Adjust cameras to the desired viewing angles. SVAT ELECTRONICS now you can see... -
Page 6: Troubleshooting
VCR/DVR black setting. The area that it is in may have too much light and may not activate the sensor. glowing red. If they are not check the power supply. SVAT ELECTRONICS now you can see... -
Page 7: Specifications
SPECIFICATIONS SVAT ELECTRONICS now you can see INDOOR/OUTDOOR CAMERA Camera Type ... Bullet Image Sensor ... 1/4" Color Sharp CMOS Resolution ...400 TV Lines Outdoor Use ... Yes IP Rating ...IP55 Focal Length... 6.0mm Focus Type ... Fixed Night Vision ... Yes Number of IR LEDs and Range ... -
Page 8: Notes
Serial Number of Product: Purchase Date: Place of Purchase: NOTE: We recommend that you keep a record of your purchase receipt with your manual for any future returns or support issues. NOTES NOTES Customer Information Card SVAT ELECTRONICS now you can see... -
Page 9: Drilling Template
SVAT ELECTRONICS now you can see DRILLING TEMPLATE To wall mount the camera, drill three holes using a 3/16" drill bit and the template below. Insert supplied wall anchors into holes and secure camera to wall with supplied screws. DRILL HOLES IN... -
Page 10: Visit Us On The Web
SVAT does not endorse any of SVAT products for any illegal activities. SVAT is not responsible or liable in any way shape or form for any damage, vandalism, theft or any other action that may occur while a SVAT product is in use by the purchaser. SVAT ELECTRONICS ► Specification Sheets ► Software Updates ►...
