Summary of Contents for SVAT GX515
-

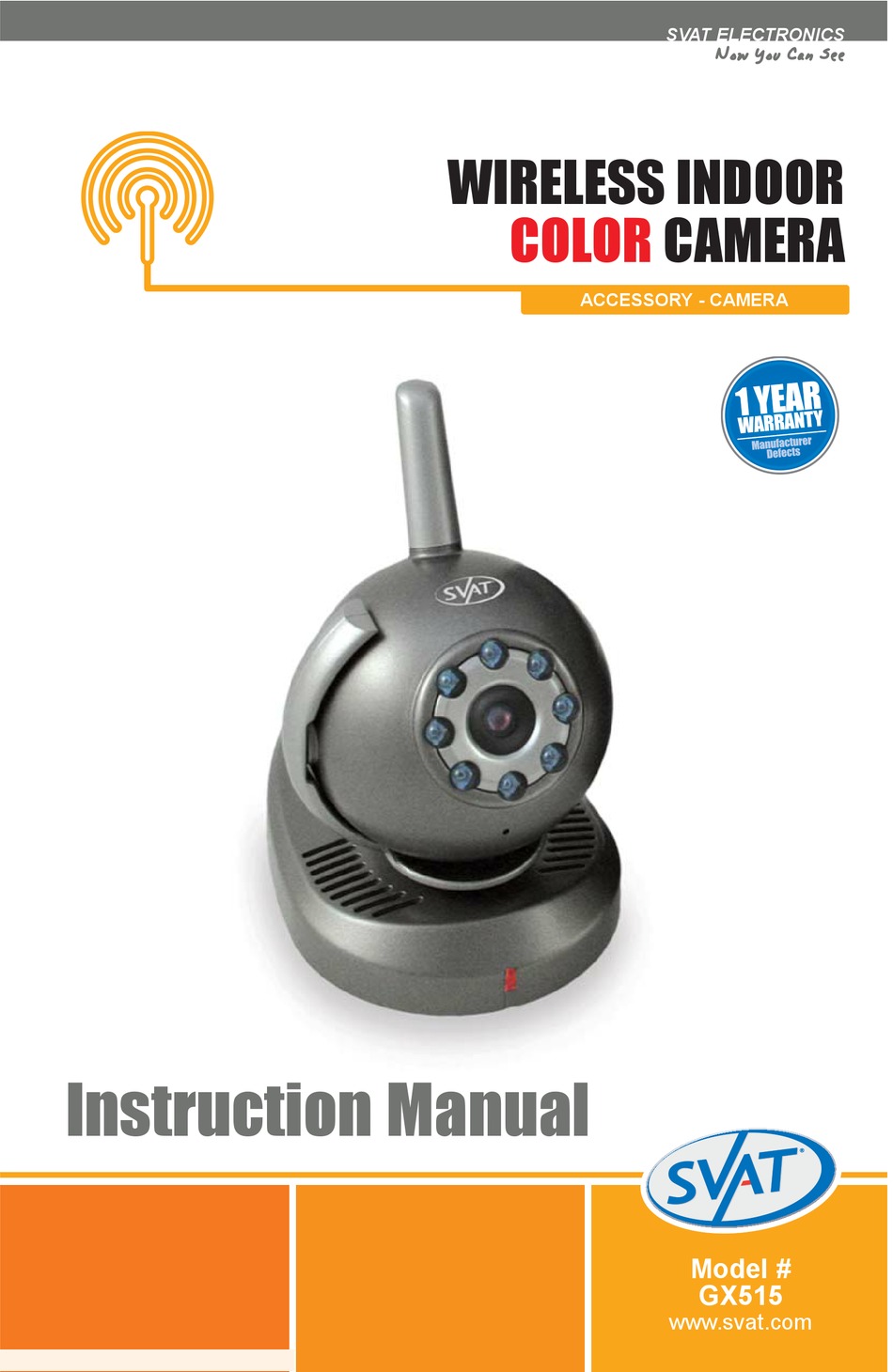

Page 1: Instruction Manual

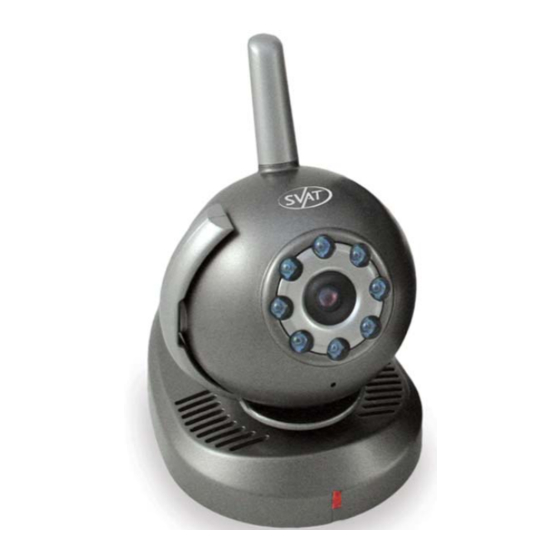

SVAT ELECTRONICS Now You Can See WIRELESS INDOOR COLOR CAMERA ACCESSORY - CAMERA Instruction Manual Model # GX515 www.svat.com... - Page 2 SVAT ELECTRONICS Now You Can See www.svat.com GX515...
-
Page 3: Product Warranty & Registration
USA 14305 Warranty Terms SVAT products are guaranteed for a period of one year from the date of purchase against defects in workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price at SVAT's option. -
Page 4: Table Of Contents
GX515B ACCESSORY...7 DRILLING TEMPLATE ...8 WHAT IS INCLUDED 1 Camera 1 Power Adapter WHAT IS COMPATIBLE The GX515 is compatible with TVs, VCRs, DVRs, computers and other SVAT systems including: GX5201 GX5101 GX515 - 2 Window Warning Stickers - Mounting Hardware... -
Page 5: Features
- IR Night vision allows you to see in the dark up to 10ft away - Built-in microphone for audio - Alarm sounds when adjusted noise level is reached (when activated) - Is compatible with other SVAT systems THINGS TO CONSIDER BEFORE INSTALLATION For optimal performance, follow these simple guidelines: - For best transmission, ensure there are no thick walls or major obstructions between the camera and LCD monitor. -
Page 6: Advanced Features
Now You Can See ADVANCED FEATURES Multi-Camera Operation The GX515 is capable of being used in conjunction with additional cameras. Additional cameras are sold separately. IMPORTANT: When using more than one camera, make sure each camera is assigned to a specific channel by assigning them different channels (1-3). -
Page 7: Troubleshooting
If you are having trouble operating this product, please consult the guide below: Symptom No camera Picture Interference on Camera Picture Audio problems GX515 Remedies 1. Check all connections and AC adapters. Make sure camera(s) and monitor are switched ON. 2. Ensure camera(s) and monitor are set to correct channels. -
Page 8: Specifications
* This device must accept any interference received, including interference that may cause undesired operation. CE directive 95/5/EEC, EMC directive 89/336/EEC, LV directive 73/23/EEC. This class B digital apparatus complies with Canadian ICES-003. GX515 SVAT ELECTRONICS NTSC or PAL standard 5.6 mm, fixed focus... -
Page 9: Notes
SVAT ELECTRONICS Now You Can See NOTES GX515... -
Page 10: Gx515B Accessory
For ultimate portability look for the GX515B rechargeable battery pack that provides up to 4 hours of continuous use. The GX515B easily attaches to the bottom of the GX515 camera for a completely wireless surveillance system. (Not included with the GX5201) Visit www.svat.com for more information... -
Page 11: Drilling Template
SVAT ELECTRONICS Now You Can See DRILLING TEMPLATE To wall mount the camera, drill two holes using a 1/4" drill bit and the template below. Insert supplied wall anchors into holes and secure camera to wall with supplied screws. GX515... - Page 12 SVAT ELECTRONICS Now You Can See w w w. s v a t . c o m D i s c l a i m e r S VAT d o e s n o t e n d o r s e a n y o f S VAT p r o d u c ts f o r a n y i l l e g a l a c t i v i t i e s .
