Page 1: Instruction Manual

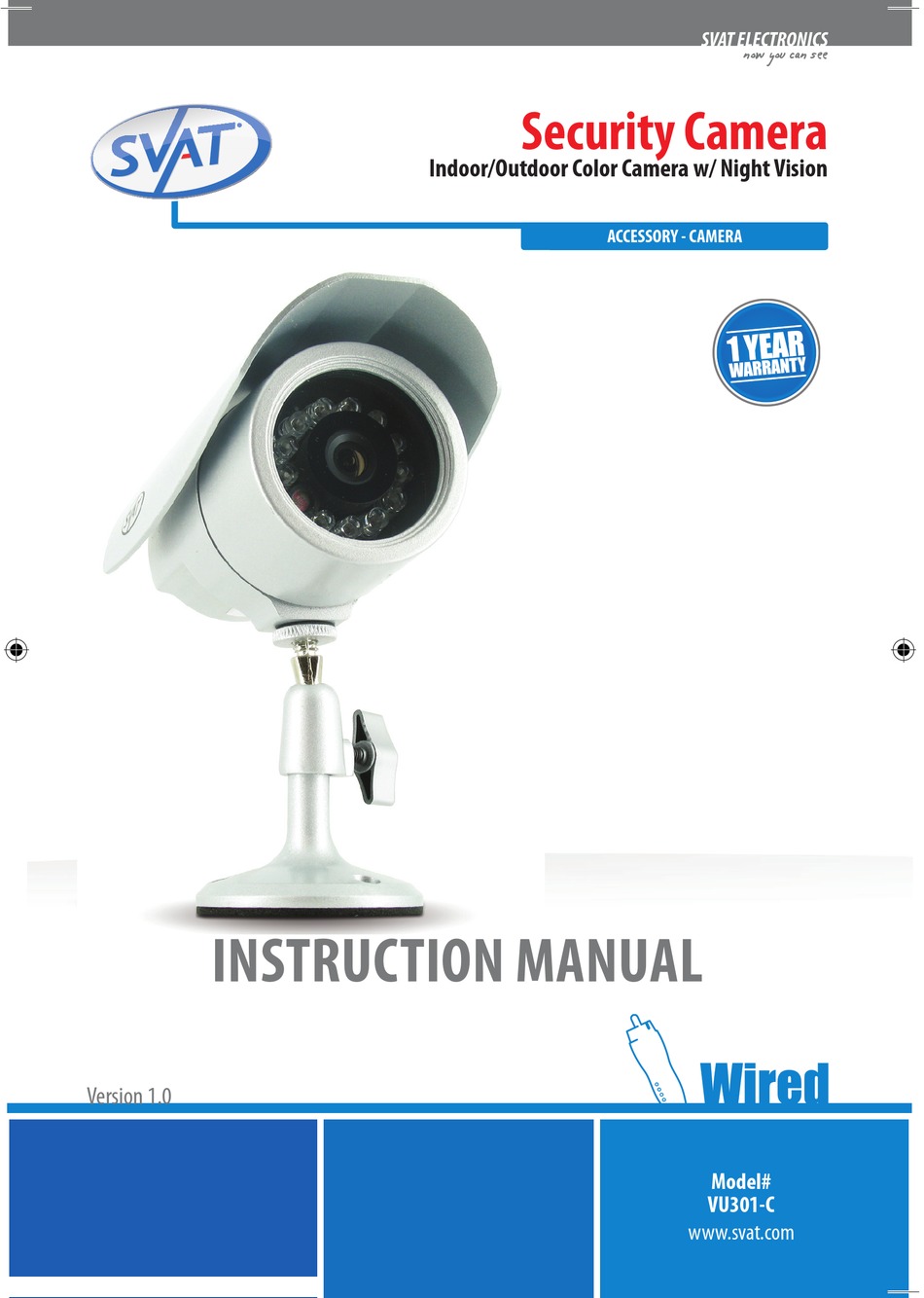

SVAT ELECTRONICS now you can see Security Camera Indoor/Outdoor Color Camera w/ Night Vision ACCESSORY - CAMERA INSTRUCTION MANUAL Version 1.0 Model# VU301-C www.svat.com... - Page 2 NEED HELP? DO NOT RETURN THIS PRODUCT TO THE STORE Please contact a SVAT customer support representative first regarding any additional information on product features, specifications or help with set-up. Please contact us via one of the methods below: Email: support@svat.com...
- Page 3 This warranty does not cover shipping costs, insurance, or any other incidental charges. You MUST call SVAT before sending any product back for repair. You will be sent a Return Authorization form with return instructions. When returning the product for warranty service, please pack it carefully in the original box with all supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #).
-
Page 4: Table Of Contents

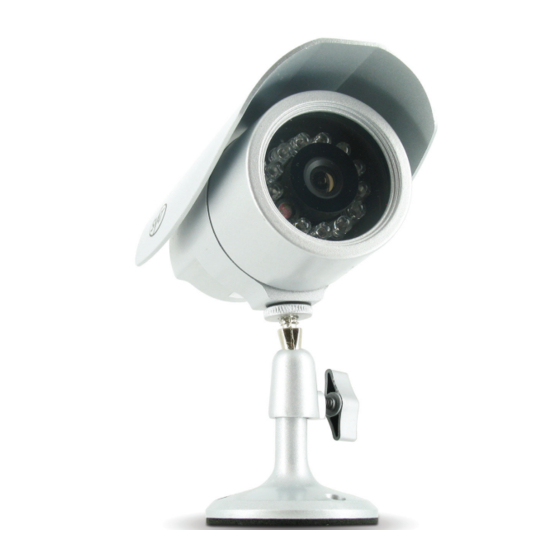

4 PIN DIN to RCA (male) Vision Color Camera Warning Stickers Video/Power Wire CAMERA FEATURES AND FUNCTIONS VU301-C Camera Sun Shield: Helps prevent glare from bright lights Infrared (IR): LEDs Allows the camera to see in the dark up to 15ft away. -
Page 5: Installation
SVAT ELECTRONICS now you can see IMPORTANT INFORMATION While this camera is weatherproof, it is not waterproof. Please do not install it in areas that receive direct rain or under eaves trough draining spots. Do not cut the DC power cable of this camera to fit with another power source. Do not cut the video connection wire to fit with a different video connection type. -
Page 6: Troubleshooting
SVAT ELECTRONICS now you can see 3. Plug the camera’s power supply into the power jack located on the 60ft video/ power wire. 4. Plug the camera’s power adapter into an AC outlet. 5. Connect the 60ft video/power wire’s male RCA plug to the VIDEO IN port of your TV/ monitor/VCR/DVR. -
Page 7: Specifications
SPECIFICATIONS SVAT ELECTRONICS now you can see Camera Type Pan/Tilt/Zoom Weatherproof Color IR CCD Camera Operating Temperature -10° ~ 60°C / Degrees Image Sensor 1/4" Color SHARP CCD Operating Humidity Resolution 420 TV Lines Camera Power Input DC 12V 300mA... -
Page 8: Notes
SVAT ELECTRONICS now you can see NOTES NOTES Customer Information Card User’s Name: Company Name: Address: Postal Code: Phone Number: Email: Model Number of Product: Serial Number of Product: Purchase Date: Place of Purchase: NOTE: We recommend that you keep a record of your purchase receipt with your manual for any future returns or support issues. -
Page 9: Drilling Template
SVAT ELECTRONICS now you can see DRILLING TEMPLATE To wall mount the camera, drill three holes using a 3/16" drill bit and the template below. Insert supplied wall anchors into holes and secure camera to wall with supplied screws. DRILL HOLES IN... - Page 10 SVAT does not endorse any of SVAT products for any illegal activities. SVAT is not responsible or liable in any way shape or form for any damage, vandalism, theft or any other action that may occur while a SVAT product is in use by the purchaser.
