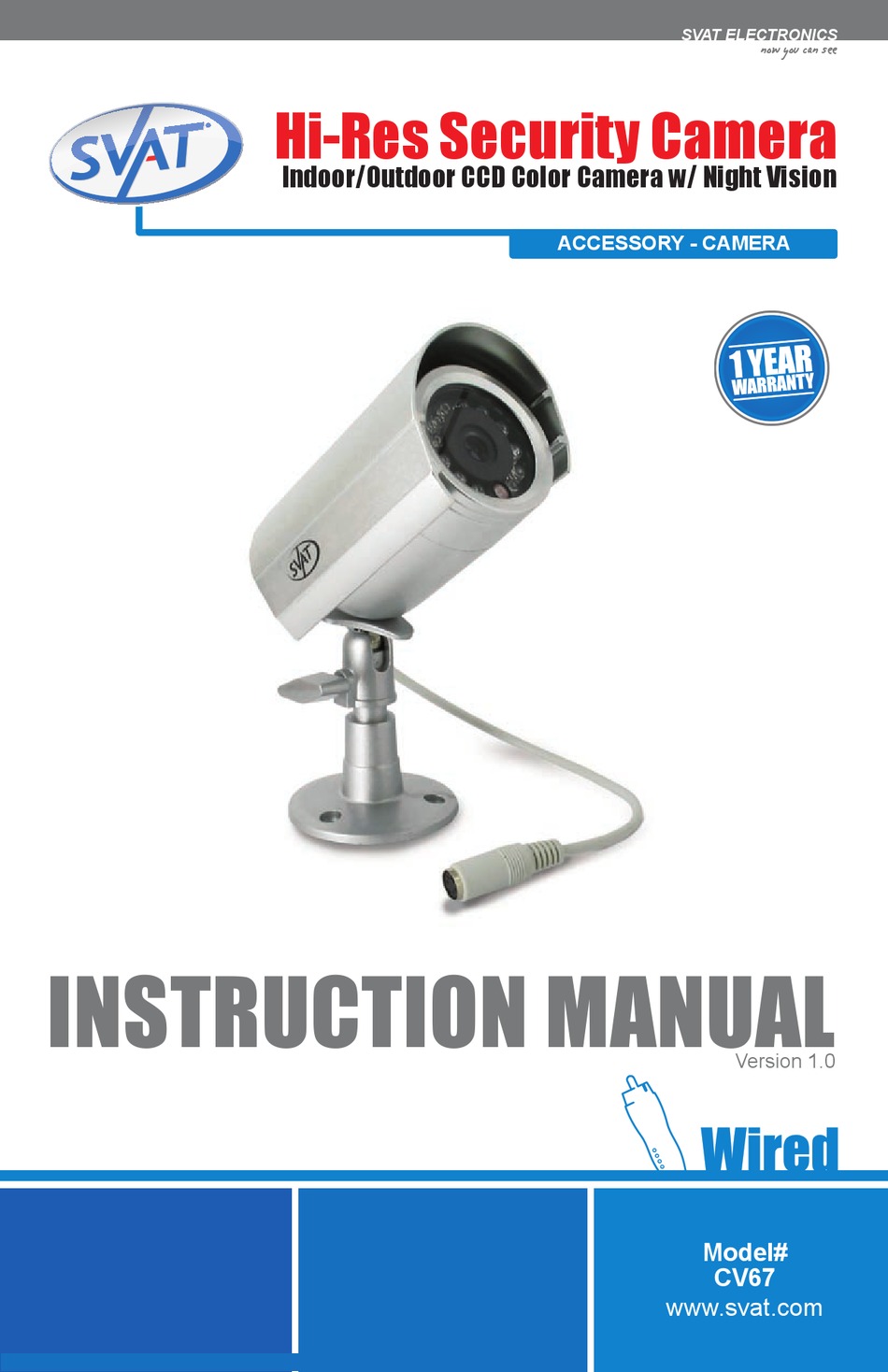

Page 1: Instruction Manual

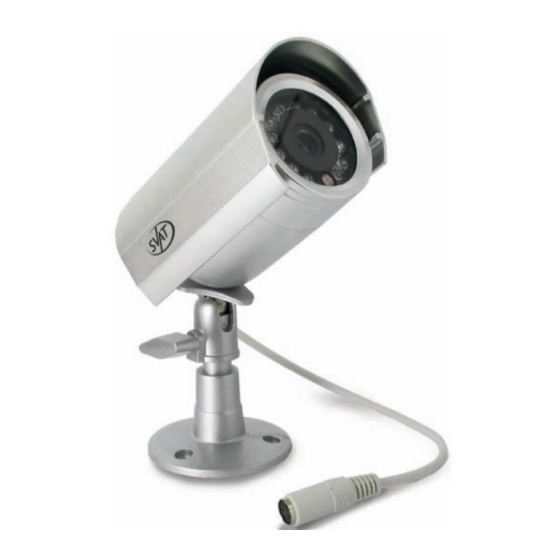

SVAT ELECTRONICS now you can see Hi-Res Security Camera Indoor/Outdoor CCD Color Camera w/ Night Vision ACCESSORY - CAMERA INSTRUCTION MANUAL Version 1.0 Model# CV67 www.svat.com... - Page 2 For more product information visit www.svat.com Note: This is manual version 1.0 for this product, you may find updated versions by visiting our website NEED HELP? DO NOT RETURN THIS PRODUCT TO THE STORE SVAT ELECTRONICS now you can see...
- Page 3 We take quality very seriously. This is why all of our products come with a one year warranty from the original purchase date against defects in workmanship and materials. If you have warranty or support issues please contact us using any of the following methods: SVAT Electronics USA 2315 Whirlpool St., Unit 333 Niagara Falls, New York...
-
Page 4: Table Of Contents
1.WHAT IS INCLUDED 1 Indoor/Outdoor 2 Window Night Vision CCD Warning Stickers Color Camera 2. CAMERA FEATURES AND FUNCTIONS CV67 TABLE OF CONTENTS 60ft 4 PIN DIN to RCA (male) Video/Power Wire CCD Cameras 1. Sun Shield helps prevent glare 2. -
Page 5: Installation
60ft video/power wire. 2. Match the two arrows on top of both connecting cables. CV67 1. Screw the mounting bracket into the camera’s mounting hole, turning it clockwise. 2. Mount the camera in the desired location no... -
Page 6: Troubleshooting
Picture is too dark: Night Vision is not working: CV67 Make sure your TV/monitor is on the correct video input channel. This is NOT channel 3. Common terms for this channel is INPUT, AV CHANNEL, LINE 1, LINE 2 and AUX. Please use your TV or VCR manual to correctly identify this channel. -
Page 7: Specifications
SVAT ELECTRONICS now you can see 7. SPECIFICATIONS OUTDOOR CAMERA Camera Type ... Bullet Image Sensor ...1/4" Color Sharp CCD Resolution ... 420 TV Lines Outdoor Use ... Yes IP Rating ...IP65 Focal Length ...3.6mm Focus Type ... Fixed Night Vision ... Yes Number of IR LEDs and Range ...12, up to 15ft... -
Page 8: Notes
Serial Number of Product: Purchase Date: Place of Purchase: NOTE: We recommend that you keep a record of your purchase receipt with your manual for any future returns or support issues. CV67 NOTES NOTES Customer Information Card SVAT ELECTRONICS now you can see... -
Page 9: Drilling Template
SVAT ELECTRONICS now you can see DRILLING TEMPLATE To wall mount the camera, drill three holes using a 3/16" drill bit and the template below. Insert supplied wall anchors into holes and secure camera to wall with supplied screws. DRILL HOLES IN... - Page 10 SVAT ELECTRONICS now you can see SVAT SUPPORTS CRIME STOPPERS Crime Stoppers programs are operated as non-profit charities and are managed by a volunteer board of directors who raise funds and pay rewards to individuals who anonymously call with information that helps solve crime.
- Page 11 SVAT ELECTRONICS now you can see SVAT SUPPORTS CRIME STOPPERS To receive more information about Crime Stoppers or to make a charitable donation please fill in the fields below, cut on the dotted line an mail in. CV67 www.svat.com...
- Page 12 SVAT is not responsible or liable in any way shape or form for any damage, vandalism, theft or any other action that may occur while a SVAT product is in use by the purchaser. SVAT ELECTRONICS ► Specification Sheets ► Software Updates ►...
