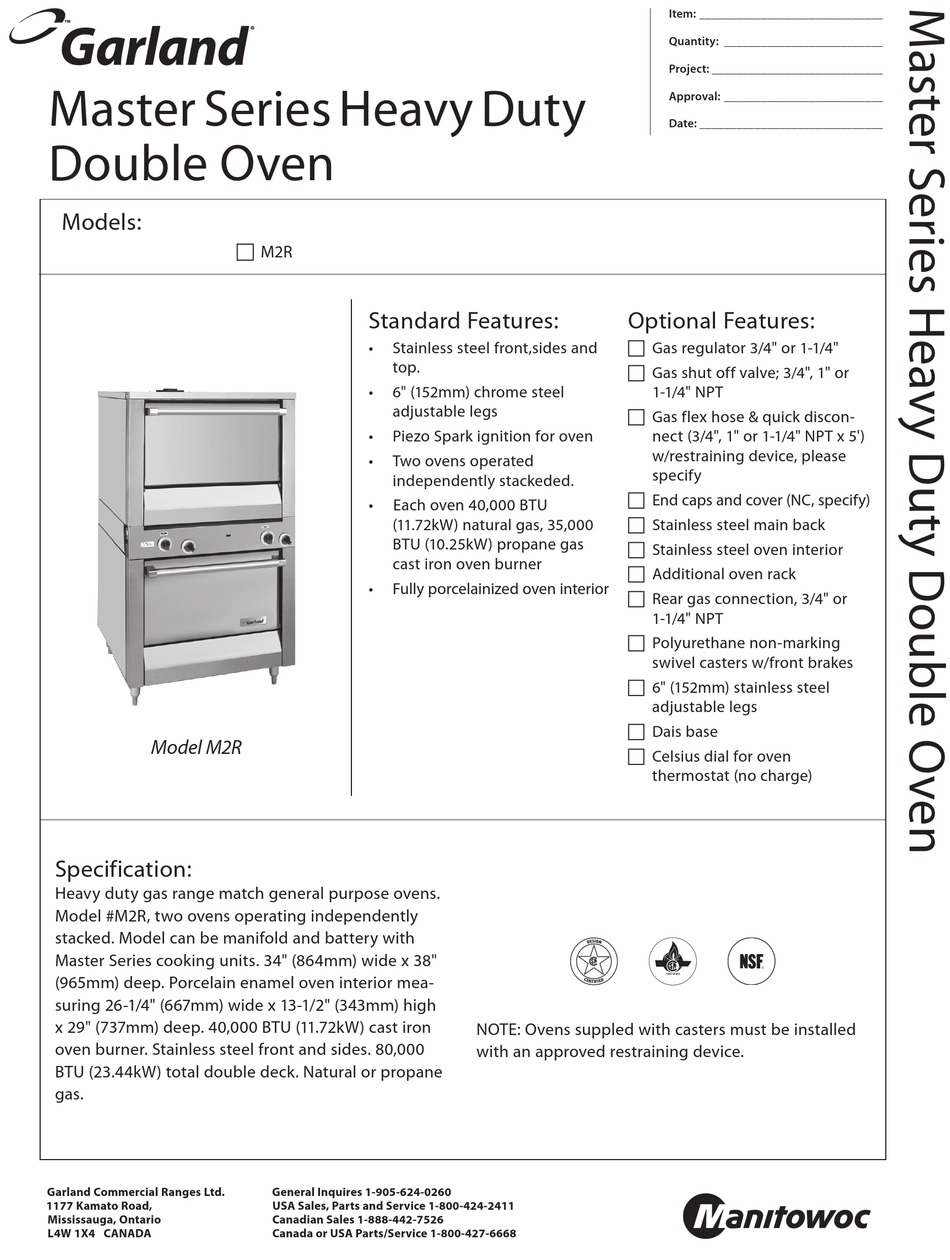

Garland M2R Quick Manual

Master Series Heavy Duty

Double Oven

Models:

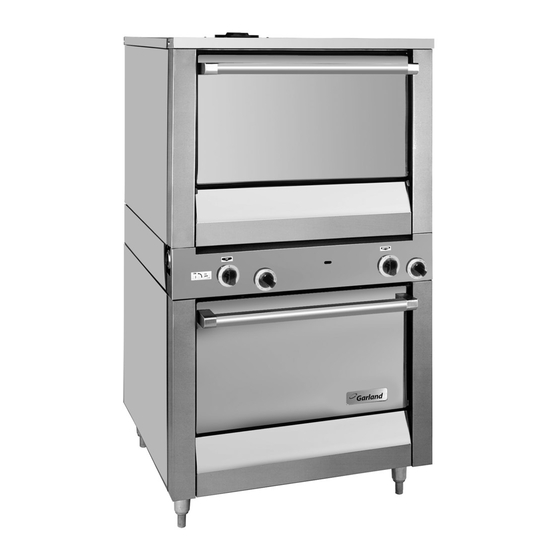

Model M2R

Specification:

Heavy duty gas range match general purpose ovens.
Model #M2R, two ovens operating independently
stacked. Model can be manifold and battery with
Master Series cooking units. 34" (864mm) wide x 38"
(965mm) deep. Porcelain enamel oven interior mea-
suring 26-1/4" (667mm) wide x 13-1/2" (343mm) high
x 29" (737mm) deep. 40,000 BTU (11.72kW) cast iron
oven burner. Stainless steel front and sides. 80,000
BTU (23.44kW) total double deck. Natural or propane
gas.
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
 M2R

Standard Features:

• Stainless steel front,sides and
top.
• 6" (152mm) chrome steel
adjustable legs
• Piezo Spark ignition for oven
• Two ovens operated
independently stackeded.
• Each oven 40,000 BTU
(11.72kW) natural gas, 35,000
BTU (10.25kW) propane gas
cast iron oven burner
• Fully porcelainized oven interior
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668

Optional Features:

 Gas regulator 3/4" or 1-1/4"
 Gas shut off valve; 3/4", 1" or
1-1/4" NPT
 Gas flex hose & quick discon-
nect (3/4", 1" or 1-1/4" NPT x 5')
w/restraining device, please
specify
 End caps and cover (NC, specify)
 Stainless steel main back
 Stainless steel oven interior
 Additional oven rack
 Rear gas connection, 3/4" or
1-1/4" NPT
 Polyurethane non-marking
swivel casters w/front brakes
 6" (152mm) stainless steel
adjustable legs
 Dais base
 Celsius dial for oven
thermostat (no charge)
NOTE: Ovens suppled with casters must be installed
with an approved restraining device.
