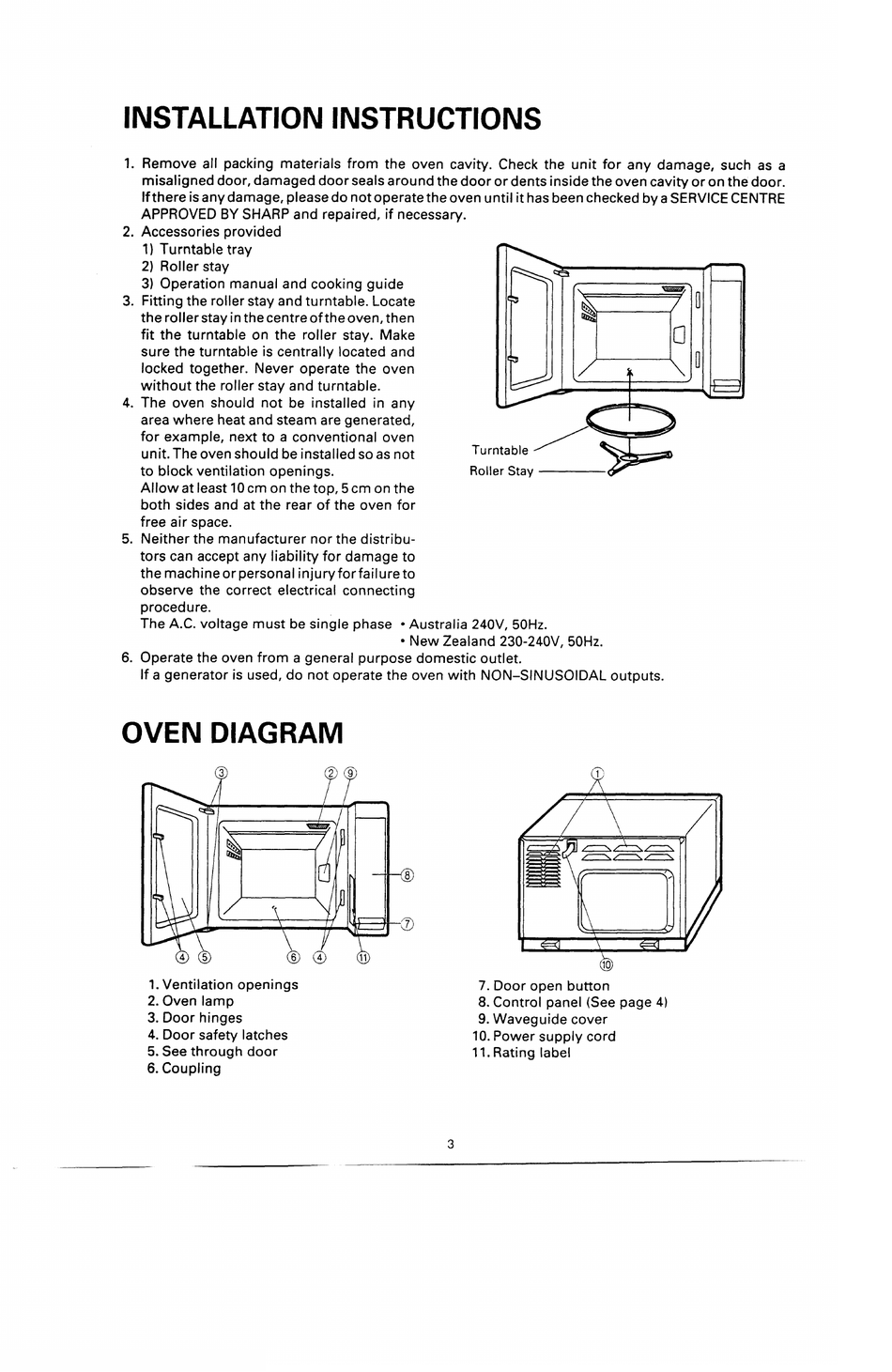

INSTALLATION INSTRUCTIONS
1.
2.
3.
4.
5.
6.
Remove all packing materials from the oven cavity. Check the unit for any damage, such as a
misaligned door, damaged door seals around the door or dents inside the oven cavity or on the door.
lfthere isanydamage, please do not operate the oven until it has been checked by
a
SERVICE CENTRE
OVEN DIAGRAM
1. Ventilation openings
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Coupling
APPROVED BY SHARP and repaired, if necessary.
Accessories provided
1) Turntable tray
2) Roller stay
3) Operation manual and cooking guide
Fitting the roller stay and turntable. Locate
the roller stay in the centre of the oven, then
fit the turntable on the roller stay. Make
sure the turntable is centrally located and
locked together. Never operate the oven
without the roller stay and turntable.
The oven should not be installed in any
area where heat and steam are generated,
for example, next to a conventional oven
unit. The oven should be installed so as not
to block ventilation openings.
Allow at least 10 cm on the top, 5 cm on the
both sides and at the rear of the oven for
free air space.
Neither the manufacturer nor the distribu-
tors can accept any liability for damage to
the machine or personal injuryforfailure to
observe the correct electrical connecting
procedure.
The A.C. voltage must be single phase
l
Australia 24OV, 50Hz.
l
New Zealand 230-24OV, 50Hz.
Operate the oven from a general purpose domestic outlet.
If a generator is used, do not operate the oven with NON-SINUSOIDAL outputs.
7. Door open button
8. Control panel (See page 4)
9. Waveguide cover
10. Power supply cord
11. Rating label
